Product details
Product Description

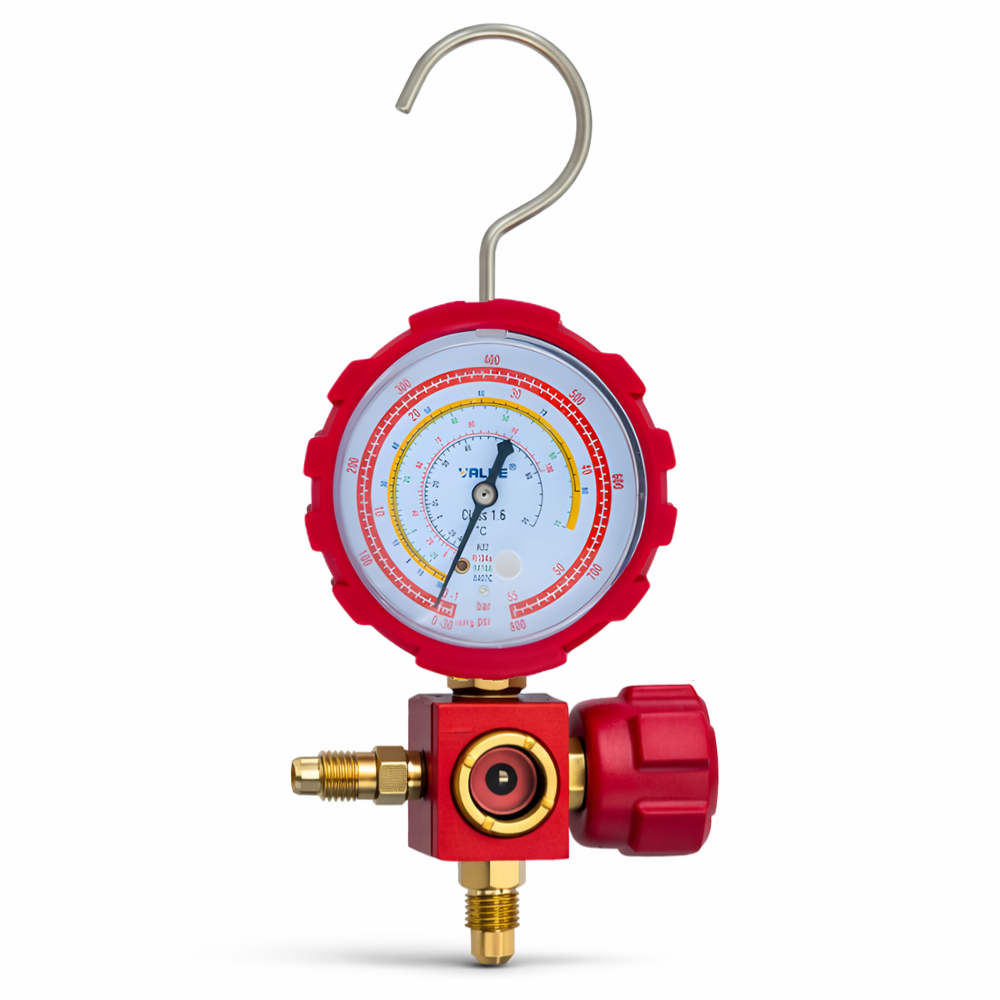

The VMG-1-U-H single high-pressure gauge from Value is a compact HVAC tool designed for pressure measurement, refrigerant charging, and basic system diagnostics in refrigeration and air conditioning systems.
This unit features a single analog high-pressure gauge with valve control, making it ideal for quick servicing tasks where a full manifold set is not required. It supports multiple refrigerants including R32, R410A, R407C, R134a, R404A, and R22, ensuring compatibility with a wide range of HVAC systems.
Built with a durable metal body and rubberized protective casing, it provides resistance against minor impacts during field use. The unit also includes a hook for easy handling and operation.
Key Features & Benefits
- Single high-pressure analog gauge (1 valve design)
- Compatible with R32, R410A, R407C, R134a, R404A, R22
- High-pressure measurement capability up to 55 bar / 800 psi
- High accuracy (Class 1.6)
- Compact and lightweight design
- Durable construction with protective casing
- Easy-to-use valve control system
- Ideal for quick servicing and diagnostics
Technical Specifications
| Specification | Details |
|---|---|
| Model | VMG-1-U-H |
| Product Type | Single Manifold Gauge (High Pressure) |
| Brand | Value |
| Gauge Type | Single Analog |
| Valve Type | Single Valve |
| Gauge Diameter | Ø68 mm |
| Pressure Range | -1 to 55 bar (≈ -30 inHg to 800 psi) |
| Accuracy Class | 1.6 |
| Refrigerants Supported | R32, R410A, R407C, R134a, R404A, R22 |
| Connections | 2 × 1/4″ SAE |
| Hoses | Not Included |
| Packaging | Blister |
📌 Datasheet confirms Ø68 mm gauge + high-pressure up to 55 bar
Kit Contents
- Single High-Pressure Gauge (VMG-1-U-H)
📌 Simple tool for basic HVAC pressure checking and servicing
Frequently Asked Questions (FAQs)
1. What is VMG-1-U-H used for?
It is used for high-pressure measurement and basic HVAC servicing tasks.
2. Is it a full manifold set?
No, it is a single gauge with one valve, not a dual manifold.
3. Which refrigerants does it support?
It supports R32, R410A, R407C, R134a, R404A, and R22.
4. What is the pressure range?
It measures up to 55 bar (approx. 800 psi).
5. Does it include hoses?
No, hoses are not included.
6. Is it suitable for professional use?
Yes, it is suitable for quick diagnostics and field servicing.
