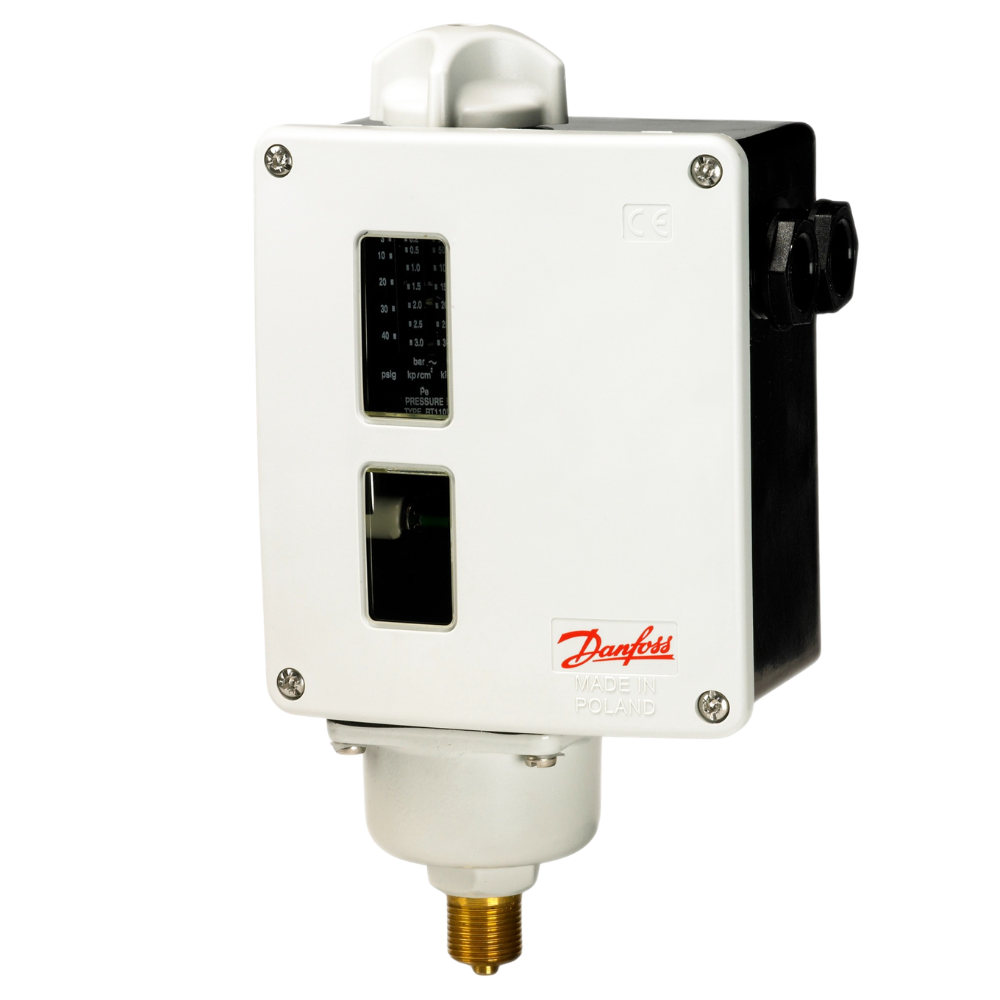

Danfoss RT112 Industrial Pressure Switch | 0.1 to 1.1 bar | 017-519166
Product Description: The RT112 (017-519166) is engineered to monitor and control low-pressure systems with a regulation range of 0.1 to 1.1 bar. In the UAE—where precision is required for water supply systems, industrial boilers, and ventilation control—the RT112 provides a reliable interface to ensure equipment stays within safe operating parameters. Its robust IP66-rated enclosure makes it perfectly suited for the humid and dusty environments of Jebel Ali, Mussafah, and other industrial zones across the Emirates. The RT series is particularly valued by UAE engineers for its mechanical stability and the ability to withstand high vibrations common in heavy-duty pump rooms and engine compartments.
Key Features & Benefits:
- Low-Pressure Precision: Specifically calibrated for low-range applications (0.1–1.1 bar), offering high repeatability.
- Exceptional Durability: The RT series is world-renowned for a service life that often spans decades, even in the harsh Middle Eastern climate.
- IP66 Protection: Completely dust-tight and resistant to powerful water jets, ensuring electrical safety in humid or offshore UAE environments.
- SPDT Contact System: Features a Single Pole Double Throw switch, allowing the device to either start or stop equipment based on pressure changes.
- Adjustable Differential: Allows for fine-tuning of the “cut-in” and “cut-out” points to prevent system short-cycling and reduce wear on pumps or compressors.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Type | RT112 |
| Code Number | 017-519166 |
| Regulation Range | 0.1 to 1.1 bar |
| Differential (Δp) | 0.07 to 0.16 bar (Adjustable) |
| Max. Working Pressure | 7 bar |
| Enclosure Rating | IP66 |
| Contact System | SPDT |
| Pressure Connection | G 3/8 A |
Export to Sheets
FAQs:
- Q: Can the RT112 be used for water level control in the UAE?
- A: Yes, it is frequently used in header tanks and water supply systems to maintain specific pressure levels.
- Q: Is it resistant to the saline air in coastal Dubai?
- A: Absolutely. Its IP66 rating and high-quality materials are designed to resist corrosion in humid and coastal industrial environments.
- Q: Does it require a manual reset?
- A: No, this specific model (017-519166) features automatic reset, meaning it will switch back once the pressure returns to the set differential.
