Product details
Product Description

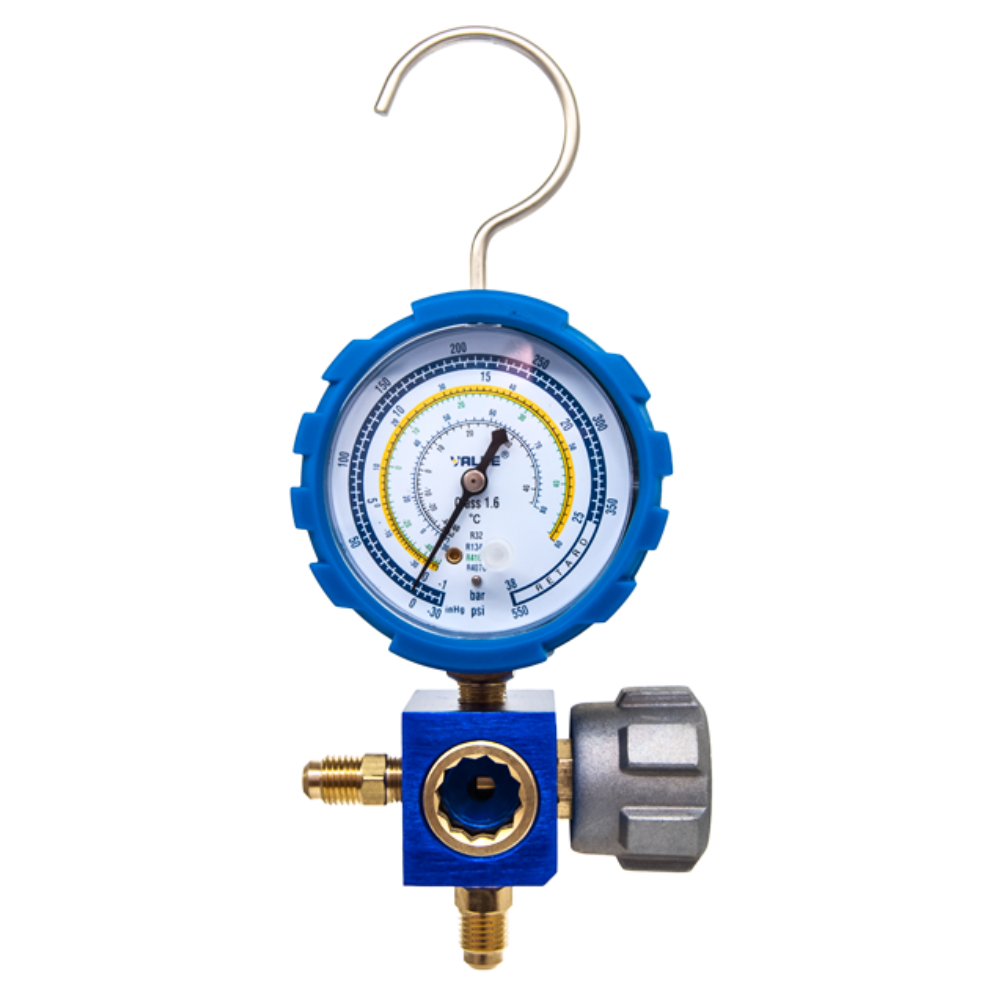

The VMG-1-S-L-R32 single low-pressure gauge from Value is a compact HVAC tool designed for pressure measurement, refrigerant charging, and basic system diagnostics in refrigeration and air conditioning systems.
This unit features a single analog low-pressure gauge with valve control, making it ideal for quick servicing tasks where a full manifold set is not required. It supports multiple refrigerants including R32, R410A, R407C, and R134a, ensuring compatibility with modern HVAC systems.
Built with a durable metal construction and protective casing, it ensures reliability in field conditions. The unit also includes a sight glass, allowing technicians to monitor refrigerant flow during operation.
Key Features & Benefits
- Single low-pressure analog gauge (1 valve design)
- Compatible with R32, R410A, R407C, R134a
- High accuracy (Class 1.6)
- Compact and lightweight for easy handling
- Durable metal construction with protective casing
- Built-in sight glass for refrigerant monitoring
- Ideal for quick servicing and diagnostics
Technical Specifications
| Specification | Details |
|---|---|
| Model | VMG-1-S-L-R32 |
| Product Type | Single Manifold Gauge (Low Pressure) |
| Brand | Value |
| Gauge Type | Single Analog |
| Valve Type | Single Valve |
| Gauge Diameter | Ø68 mm |
| Pressure Range | -1 to 35 bar |
| Accuracy Class | 1.6 |
| Refrigerants Supported | R32, R410A, R407C, R134a |
| Connections | 2 × 1/4″ SAE |
| Hoses | Not Included |
| Quick Couplers | Not Included |
| Sight Glass | Yes |
| Packaging | Blister |
📌 Datasheet confirms single low-pressure gauge with -1 to 35 bar range & Ø68 mm dial
Kit Contents
- Single Low-Pressure Gauge (VMG-1-S-L-R32)
📌 Simple tool for basic HVAC pressure checking and servicing
Frequently Asked Questions (FAQs)
1. What is VMG-1-S-L-R32 used for?
It is used for low-pressure measurement and basic HVAC servicing tasks.
2. Is it a full manifold set?
No, it is a single gauge with one valve, not a dual manifold set.
3. Which refrigerants does it support?
It supports R32, R410A, R407C, and R134a.
4. What is the pressure range?
It measures from -1 to 35 bar.
5. Does it include hoses?
No, hoses and couplers are not included.
6. Is it suitable for professional use?
Yes, it is suitable for quick diagnostics and field servicing.
