Product Description

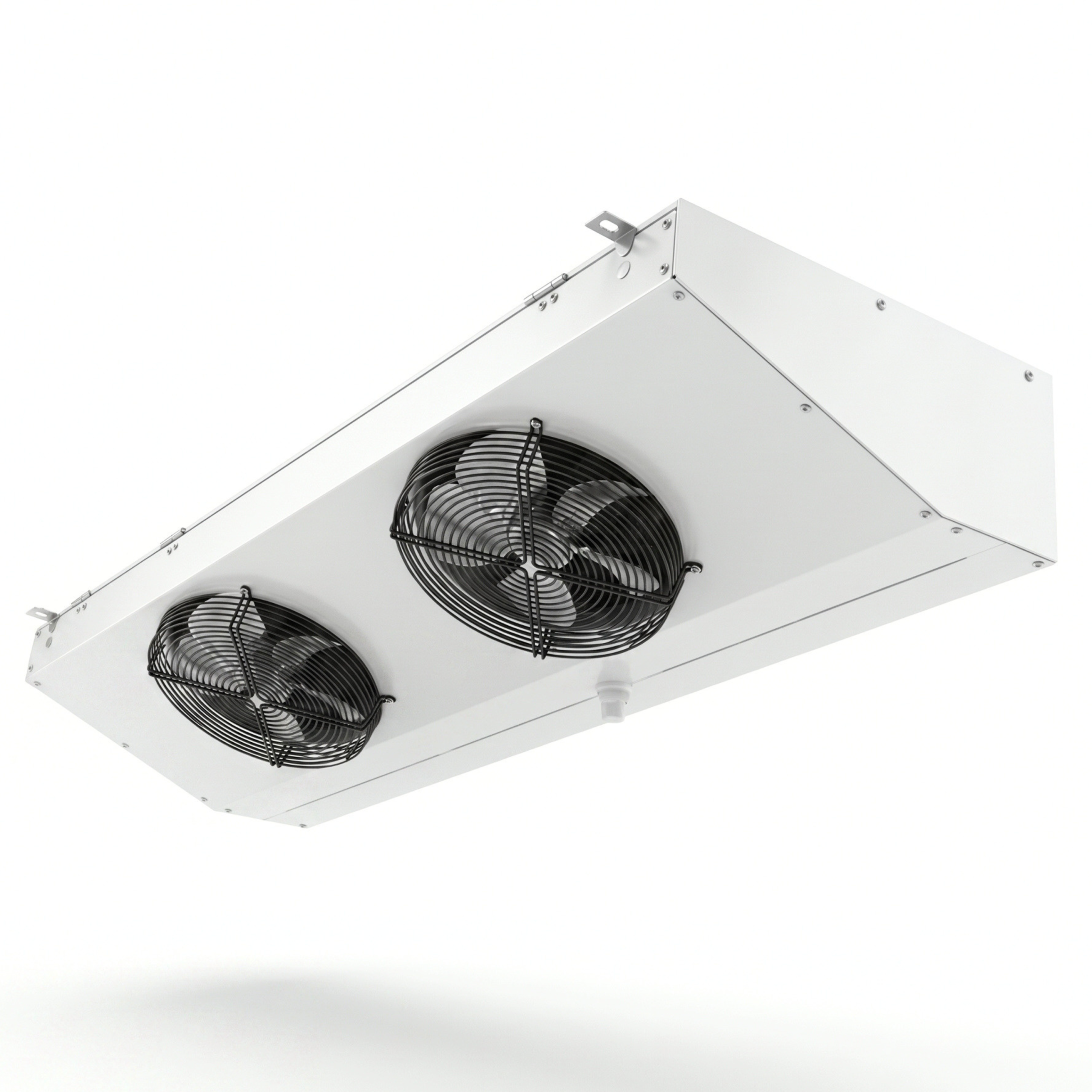

The Friga-Bohn MH 380 R Ceiling Unit Cooler is a compact and efficient evaporator designed for commercial refrigeration and medium-temperature cold room applications. Its low-profile ceiling-mounted design makes it ideal for installations where space optimization is important.
The unit is equipped with 2 × 300 mm axial fans operating at 1500 rpm, delivering approximately 2070 m³/h airflow with an air throw of up to 16 meters, ensuring uniform air distribution across small to medium cold rooms.
The heat exchanger is built with internally grooved copper tubes and aluminium fins (4.23 mm spacing), providing reliable heat transfer and consistent cooling performance. With a heat exchange surface of 12.98 m², the unit delivers efficient operation in compact environments.
Designed with dimensions of 1531 × 607 × 228 mm and a net weight of 35 kg, it is lightweight and easy to install in ceiling-mounted configurations.
Operating on 230V / 1Ph / 50Hz, the unit delivers a cooling capacity of approximately 3.26 kW under standard conditions (R22, 0°C room temperature) .
Key Features
- Compact ceiling-mounted evaporator
- 2 × 300 mm axial fans
- Airflow: ~2070 m³/h
- Air throw: up to 16 m
- Copper tube and aluminium fin coil
- 4.23 mm fin spacing
- Heat exchange surface: 12.98 m²
- Space-saving low-profile design
- Easy installation and maintenance
- Ideal for commercial cold rooms
Technical Specifications
- Model: MH 380 R
- Fans: 2 × 300 mm
- Fan Speed: 1500 rpm
- Airflow: 2070 m³/h
- Air Throw: 16 m
- Surface Area: 12.98 m²
- Fin Spacing: 4.23 mm
- Dimensions (L×D×H): 1531 × 607 × 228 mm
- Net Weight: 35 kg
- Power Supply: 230V / 1Ph / 50Hz
Cooling Capacity
- Capacity: ~3.26 kW
- Conditions:
- Refrigerant: R22
- Room Temperature: 0°C
- DT1: 8K
Defrost Specifications
- Type: Electric defrost (E1K)
- Defrost Power: 1800 W
- Defrost Current: 7.83 A
- Voltage: 230V / 1Ph / 50Hz
- Heaters: 2 + 1
Additional Details
- Connections (In/Out): 1/2″ – 5/8″
- Packed Weight: 49 kg
- Mounting Type: Ceiling mounted
Options Available
(From page 2 of datasheet)
- E1K: Electric defrost kit
- DMP: Expansion valve mounted
- EEC: Fully equipped evaporator
- MM6: 60 Hz fan option
- BAE / BHA: Coil protection coatings
FAQs
Q1: What type of application is this unit suitable for?
This unit is ideal for small to medium commercial cold rooms and medium-temperature applications (0°C).
Q2: What is the airflow performance?
It delivers approximately 2070 m³/h airflow with an air throw of up to 16 meters.
Q3: What is the cooling capacity?
The unit provides approximately 3.26 kW cooling capacity under standard conditions.
Q4: What is the main advantage of this model?
Its low-profile ceiling design makes it perfect for installations with limited space.
Q5: Is a defrost system included?
Yes, it includes an electric defrost system (1800 W).
Q6: Is installation easy?
Yes, the lightweight and compact design ensures easy ceiling installation.
