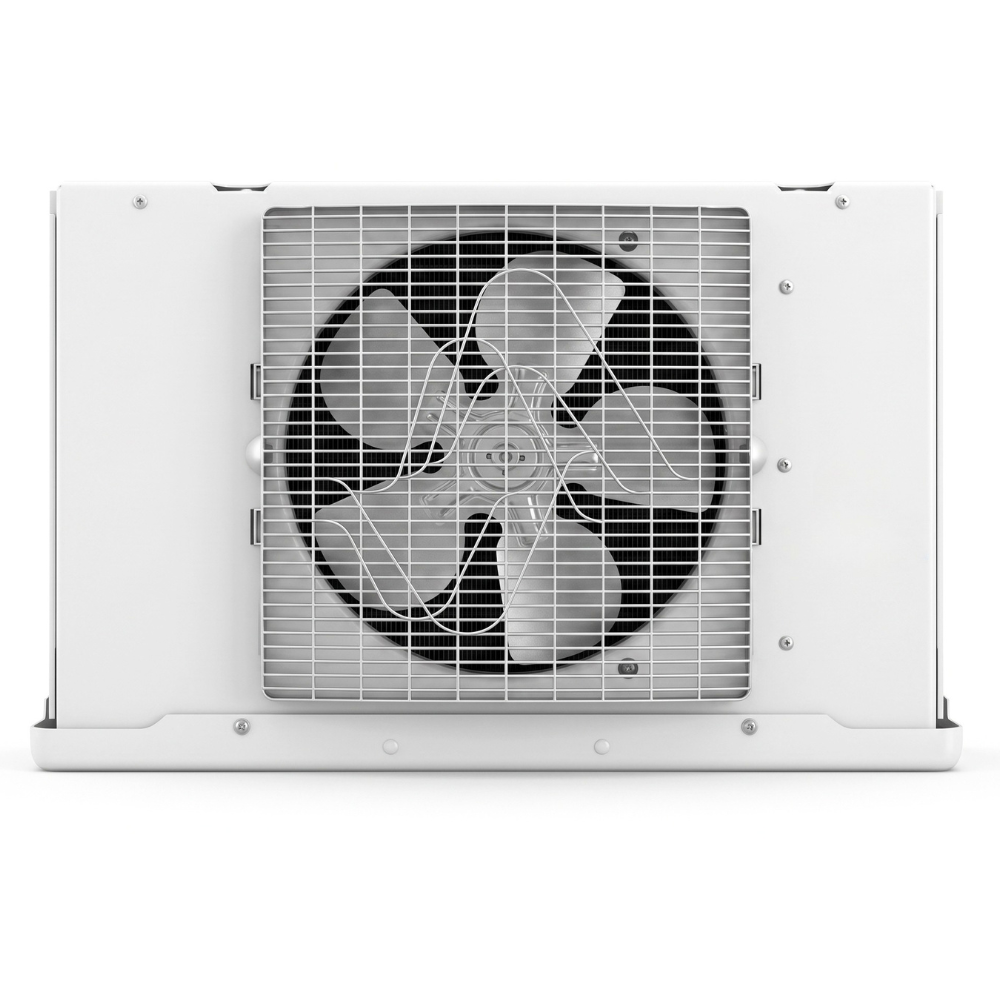

3C-E 3155 C Cubic Unit Cooler (Evaporator) – Friga-Bohn

In stock

Price on request
Request a quote or call +971 4 222 3133

Download PDF

The Friga-Bohn 3C-E 3155 C Cubic Unit Cooler is a compact evaporator featuring 1 × 300 mm axial fan (1350 rpm) delivering 1220 m³/h airflow with 15 m air throw. Built with copper tubes and aluminium fins (6 mm spacing) and offering 8.9 m² heat exchange surface, it operates on 230V / 1Ph / 50–60Hz and provides 1.93 kW cooling capacity, making it ideal for low-temperature refrigeration applications.

Brands:
Brand:

Product details

Product Description

The Friga-Bohn 3C-E 3155 C Cubic Unit Cooler is a compact and efficient evaporator designed for commercial cold rooms and low-temperature refrigeration applications. It is equipped with 1 × 300 mm axial fan operating at 1350 rpm, delivering approximately 1220 m³/h airflow with an air throw of up to 15 meters, ensuring uniform air distribution.

The unit features a high-efficiency heat exchanger constructed with internally grooved copper tubes and aluminium fins (6 mm spacing), making it ideal for low-temperature applications by reducing frost accumulation. With a heat exchange surface of 8.9 m², it provides reliable and consistent cooling performance.

Designed with slightly larger dimensions (772 × 480 × 428 mm) and a net weight of 17 kg, the unit remains compact while offering enhanced performance for medium-sized cold rooms.

Operating on 230V / 1Ph / 50–60Hz, the unit delivers a cooling capacity of approximately 1.93 kW under standard conditions (R404A, -18°C room temperature). It includes a built-in electric defrost system (2160 W) for efficient frost removal and reliable operation.


Key Features

  • Compact cubic unit cooler design
  • 1 × 300 mm axial fan
  • Airflow: ~1220 m³/h
  • Air throw: up to 15 m
  • Copper tube and aluminium fin coil
  • 6 mm fin spacing (low-temperature optimized)
  • Heat exchange surface: 8.9 m²
  • Durable and easy to install
  • Built-in electric defrost system
  • Low noise operation (~31 dB(A))

Technical Specifications

  • Model: 3C-E 3155 C
  • Fan: 1 × 300 mm
  • Fan Speed: 1350 rpm
  • Airflow: 1220 m³/h
  • Air Throw: 15 m
  • Surface Area: 8.9 m²
  • Fin Spacing: 6 mm
  • Dimensions (L×D×H): 772 × 480 × 428 mm
  • Net Weight: 17 kg
  • Power Supply: 230V / 1Ph / 50–60Hz

Cooling Capacity

  • Capacity: ~1.93 kW
  • Conditions:
    • Refrigerant: R404A
    • Room Temperature: -18°C
    • DT1: 7K

Defrost Specifications

  • Type: Electric defrost
  • Defrost Power: 2160 W
  • Defrost Current: 9.4 A
  • Voltage: 230V / 1Ph / 50Hz
  • Heaters: 5 + 1

Additional Details

  • Connections (In/Out): 5/8″ – 5/8″
  • Sound Level: ~31 dB(A) at 4 m
  • Packed Weight: 21 kg

FAQs

Q1: What type of application is this unit suitable for?
This unit is ideal for low-temperature cold rooms and freezer applications.

Q2: What is the airflow performance?
It delivers approximately 1220 m³/h airflow with an air throw of up to 15 meters.

Q3: What is the cooling capacity?
The unit provides approximately 1.93 kW cooling capacity under standard conditions.

Q4: What is the fin spacing and its benefit?
It features 6 mm fin spacing, which helps reduce frost buildup and is ideal for low-temperature environments.

Q5: Is a defrost system included?
Yes, the unit includes a built-in electric defrost system (2160 W).

Q6: Is installation easy?
Yes, the compact design and manageable weight allow for easy installation.

Additional information

Category

Evaporators, Heat Exchange Equipment
