Product details

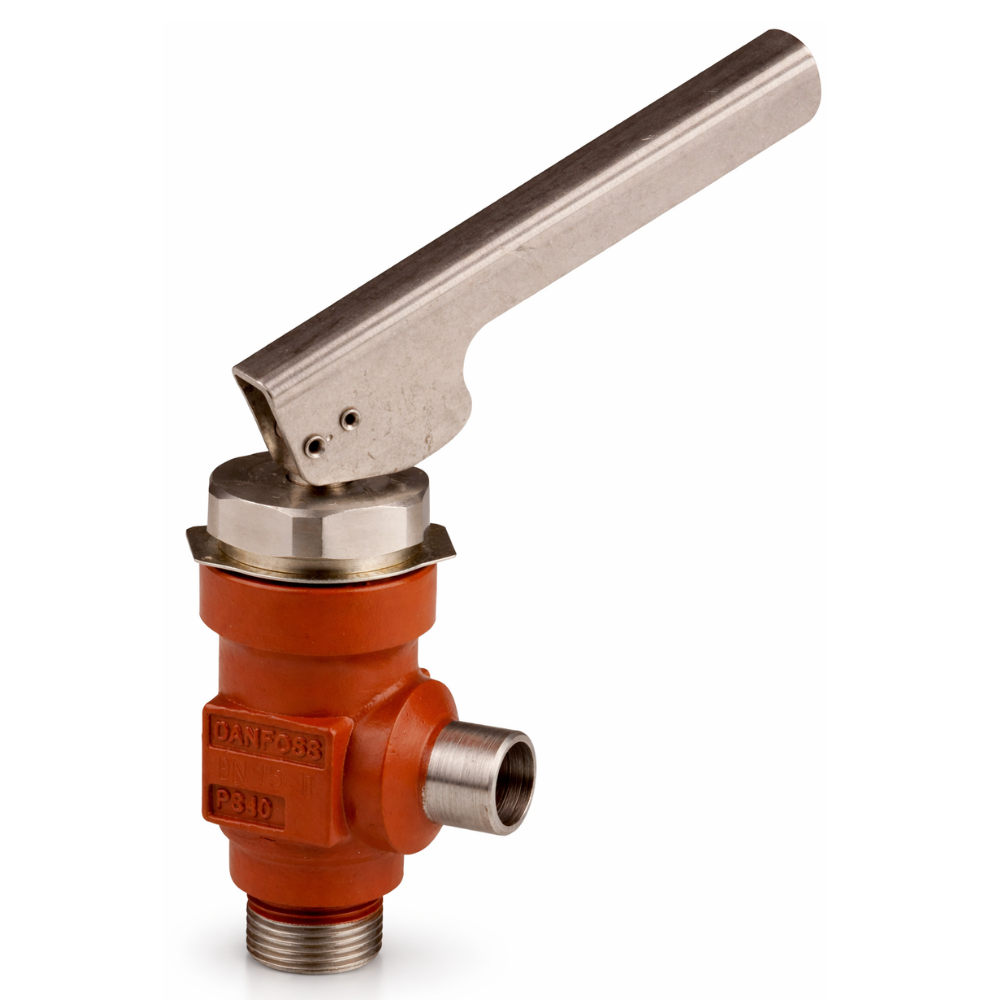

Danfoss QDV 15 Quick Closing Oil Drain Valve | 148H3274
Product Description:
The Danfoss QDV 15 (148H3274) is a critical safety component for large-scale industrial refrigeration installations across the UAE. Designed to facilitate the safe drainage of oil from refrigerant-filled systems, the QDV features a spring-loaded “dead man” handle. This ensures the valve closes automatically and instantly as soon as the operator releases the handle, preventing accidental refrigerant release—a vital safety feature for ammonia plants in Dubai. Built to withstand high-pressure environments, the QDV 15 is engineered with high-grade materials that resist the corrosive nature of oil-refrigerant mixtures and the intense ambient heat of the UAE. Its robust design and reliable sealing technology make it the industry standard for oil management in UAE cold storage and food processing facilities.
Key Features & Benefits:
- Instant Shut-off Safety: The spring-loaded handle ensures immediate closing upon release, protecting UAE operators and preventing refrigerant loss.
- High-Ambient Durability: Specifically built to maintain seal integrity and mechanical function in the extreme temperatures and humidity of the UAE.
- Optimized for Ammonia: Designed specifically for $R717$ (Ammonia) systems, which are the backbone of the UAE’s industrial cooling infrastructure.
- Easy Maintenance: The valve can be easily serviced, and the internal components are designed for long-term reliability in harsh Dubai industrial environments.
- Enhanced Environmental Protection: By preventing accidental leaks during oil drainage, it helps UAE facilities maintain compliance with strict environmental and safety regulations.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Product Model | QDV 15 |
| Code Number | 148H3274 |
| Valve Type | Quick Closing Oil Drain Valve |
| Connection Size | 15 mm (1/2 inch) |
| Max. Working Pressure | 40 bar (580 psi) |
| Temperature Range | -50°C to +150°C |
| Compatible Refrigerants | Ammonia ($NH_3$), HFC, HCFC |
FAQs:
- Q: Why is the “Quick Closing” feature of the QDV 15 so important for UAE plants?
- A: In large ammonia systems common in the UAE, accidental gas release during oil draining can be dangerous. The QDV 15 ensures that if an operator slips or leaves the valve, it closes instantly.
- Q: Does this valve require insulation in a Dubai industrial setup?
- A: While the valve itself doesn’t require insulation for function, it is often installed on oil pots which are insulated to prevent condensation in the humid UAE air.
- Q: Can the 148H3274 handle very cold oil temperatures in UAE freezers?
- A: Yes, it is rated down to -50°C, making it perfectly suitable for low-temperature industrial freezing applications throughout the UAE.
