Product details

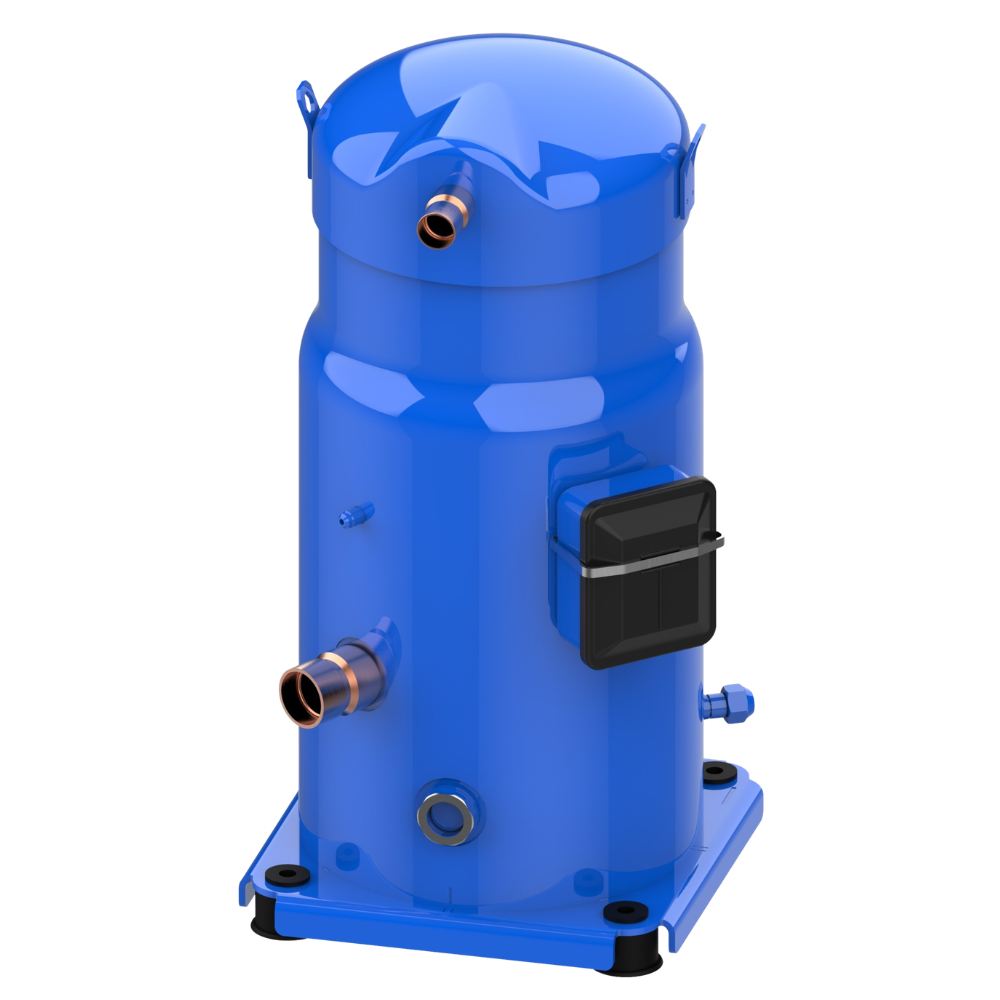

Danfoss SM110S4VC Scroll Compressor | 9 HP
Product Description:
The Danfoss SM110S4VC (the official after-sale replacement for the SM110-4VI series) is designed to deliver peak performance in demanding commercial environments. Optimized for R22 refrigerant and mineral oil, this 9 HP unit is widely used in rooftop units and large split systems across the UAE. Its advanced scroll technology ensures high volumetric efficiency and reduced energy consumption. Built to withstand the extreme high-ambient temperatures of the Middle East, the SM110S4VC features a robust motor design and precision-machined components that minimize vibration and noise, ensuring long-term operational stability and consistent cooling for critical commercial infrastructure.
Key Features & Benefits:
- Optimized 9 HP Cooling Capacity: Perfectly sized for medium-to-large commercial air conditioning units.
- Extreme Weather Resilience: Engineered to maintain stable discharge temperatures even during the most intense UAE summer heat.
- Quiet & Smooth Operation: Precision scroll geometry significantly reduces mechanical noise and vibration compared to older units.
- Dedicated R22 Performance: Built for seamless integration into existing R22 cooling circuits with mineral oil compatibility.
- Industrial Reliability: Features internal motor protection to guard against electrical phase loss and thermal overload.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Model Number | SM110S4VC (SM110-4VI) |
| Compressor Type | Scroll (Hermetic) |
| Horsepower (HP) | 9 HP |
| Refrigerant(s) | R22 |
| Voltage / Phase | 380-400V / 3-Phase / 50Hz (460V / 60Hz) |
| Oil Type | Mineral Oil (160P) |
| Displacement | 144.2 cm³/rev |
| Cooling Capacity | ~24.5 kW (at Standard Rating) |
| Connection Type | Brazed (Solder) / ODF |
| Net Weight | ~73 kg |
FAQs:
- Q: Is the SM110S4VC a direct swap for the older SM110-4VI?
- A: Yes, it is the designated technical replacement, ensuring a perfect fit and matching performance for maintenance projects.
- Q: Can this compressor be used with R407C?
- A: No. This SM model is designed for R22 with mineral oil. For R407C, you must use the SZ series with POE oil.
- Q: What are the common applications in Dubai?
- A: It is most commonly found in commercial rooftop packages and ducted split AC systems for offices and retail spaces.
