Product details
Compressor EMY6170Z R134a HBP 220–240V 1/4HP Embraco

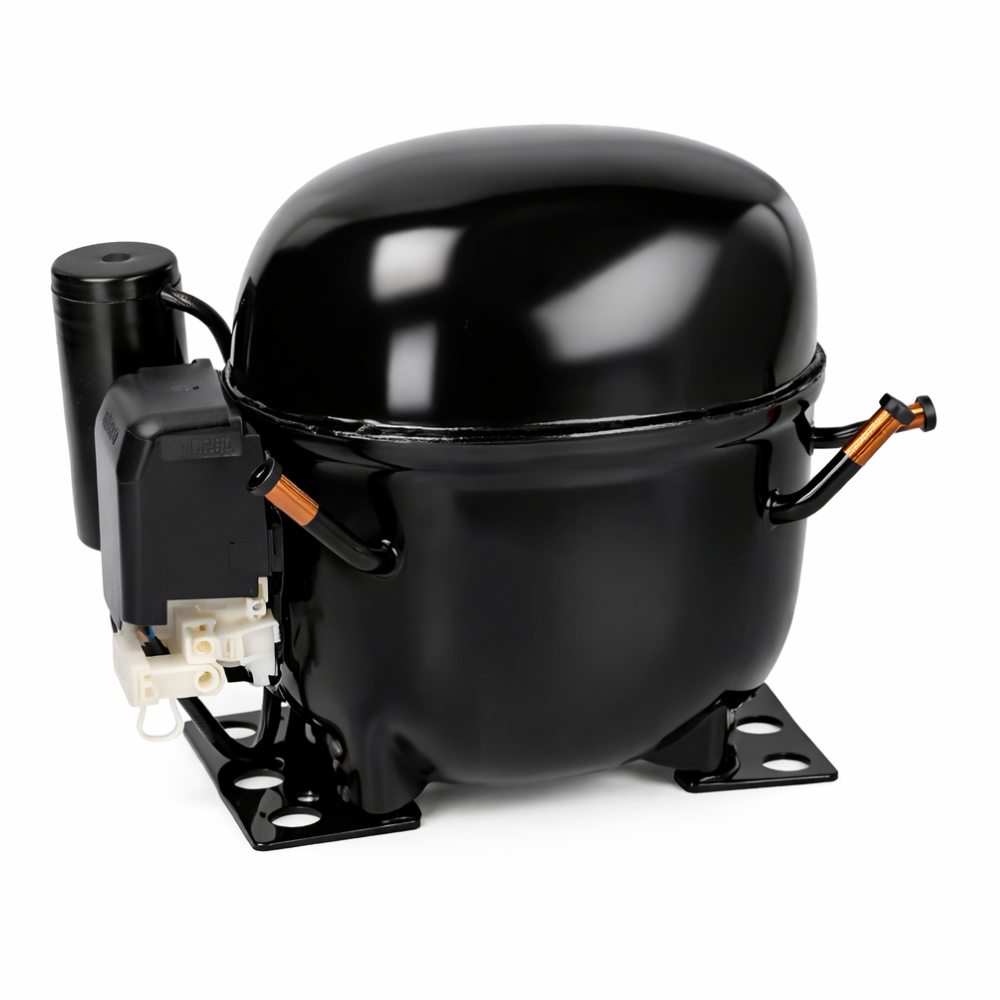

The Embraco EMY6170Z hermetic reciprocating compressor is designed for high back pressure (HBP) refrigeration systems, delivering efficient and stable cooling performance in medium and high temperature applications. It is ideal for commercial refrigeration systems such as beverage coolers, display cabinets, and vending machines.
With its compact design, high starting torque, and energy-efficient operation, this compressor ensures reliable performance, low power consumption, and long service life in continuous-duty environments.
Key Benefits
- Designed for high back pressure (HBP) applications
- Reliable cooling performance in medium and high temperature systems
- Energy-efficient operation with high COP
- Compact and lightweight design for easy installation
- High starting torque (HST) for dependable startup
- Compatible with capillary tube and expansion valve systems
Specifications
- Brand: Embraco
- Model: EMY6170Z
- Compressor Type: Hermetic reciprocating compressor
- Application Type: High Back Pressure (HBP)
- Refrigerant: R134a
- Voltage/Frequency: 220–240V / 50Hz
- Phase: Single Phase (1PH)
- Horsepower: 1/4 HP
- Displacement: 7.51 cm³
- Cooling Capacity: ~790 – 800 W (ASHRAE conditions)
- Efficiency (COP): ~2.56 – 2.6 W/W
- Power Consumption: ~300 – 304 W
- Motor Type: CSIR
- Starting Torque: High Starting Torque (HST)
- Oil Type: POE (Ester ISO 22)
- Oil Charge: ~150 ml
- Starting Current (LRA): ~10.5 A
- Weight: ~7.7 kg
- Cooling Method: Fan cooling (forced air)
- Expansion Device: Capillary tube or expansion valve
- Operating Range: Medium to high temperature applications
Applications
- Beverage coolers and bottle chillers
- Display refrigerators and merchandisers
- Vending machines and compact cooling units
- Commercial refrigeration systems
- Food storage and preparation units
- Small cold rooms (medium temp range)
FAQs
What type of systems is the EMY6170Z suitable for?
It is designed for high back pressure (HBP) refrigeration systems used in medium and high temperature applications.
Can this compressor be used in vending machines?
Yes, it is commonly used in vending machines, beverage coolers, and display refrigeration units.
Is this compressor energy efficient?
Yes, with a COP up to around 2.6, it provides efficient cooling with reduced power consumption.
Which refrigerant does it use?
It operates with R134a refrigerant, widely used in commercial refrigeration systems.
