Product details
Product Description

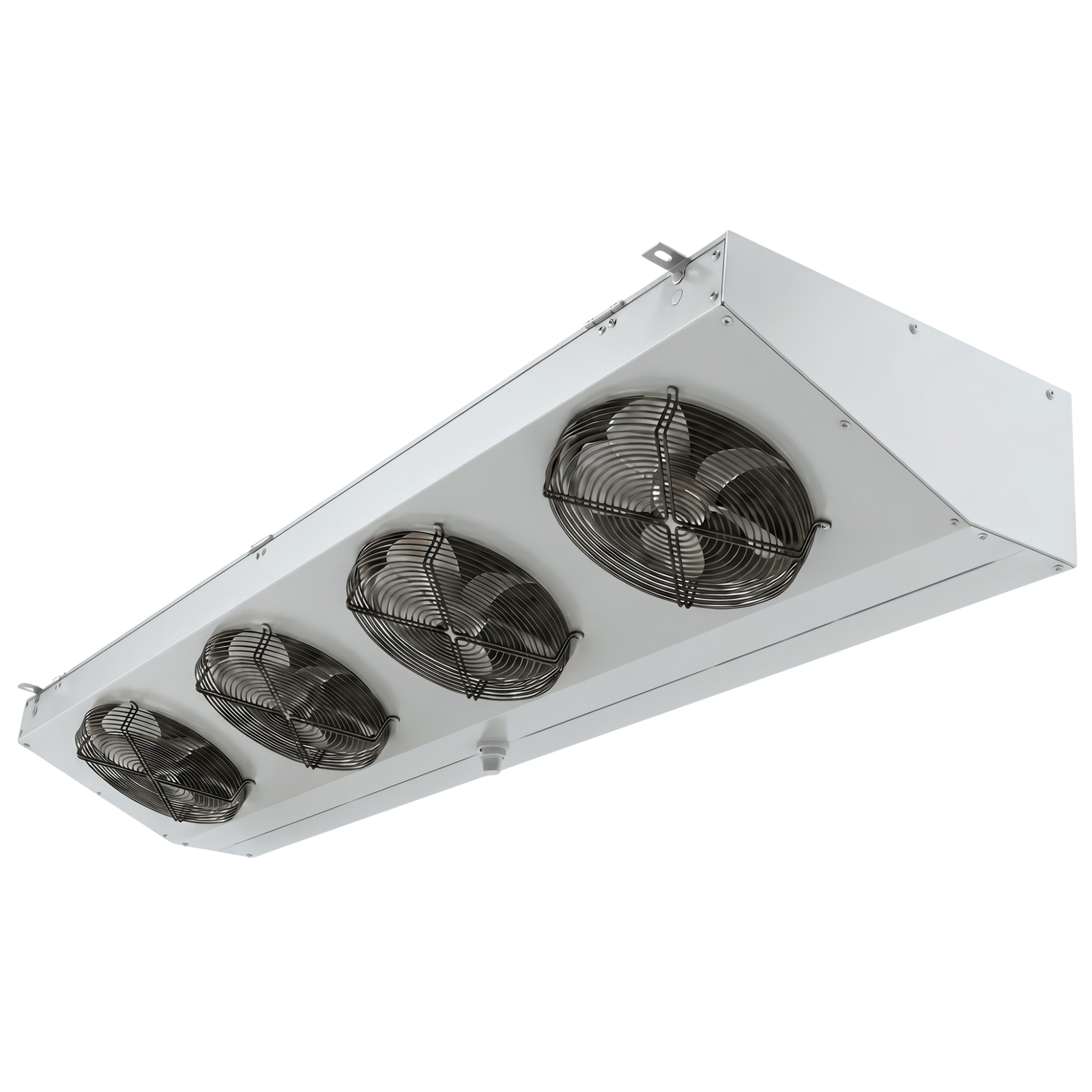

The Friga-Bohn MHE 770 E Ceiling Unit Cooler is a high-capacity evaporator designed for low-temperature refrigeration applications (-18°C) such as large freezer rooms and cold storage facilities. Its ceiling-mounted, low-profile design ensures efficient space utilization while delivering powerful cooling performance.
The unit is equipped with 4 × 300 mm axial fans operating at 1500 rpm, delivering approximately 4160 m³/h airflow with an air throw of up to 16 meters, ensuring uniform air distribution across medium to large cold rooms.
It features a high-efficiency heat exchanger constructed with internally grooved copper tubes and aluminium fins (4.23 mm spacing), ensuring reliable heat transfer. With a large heat exchange surface of 26.15 m², it provides significantly higher performance compared to smaller ceiling models.
Designed with extended dimensions (2499 × 607 × 260 mm) and a net weight of 57 kg, the unit is suitable for larger installations while maintaining a compact ceiling format.
Operating on 230V / 1Ph / 50Hz, the unit delivers a cooling capacity of approximately 5.22 kW under standard conditions (R404A, -18°C room temperature) .
Key Features
- Ceiling-mounted evaporator (low-profile design)
- 4 × 300 mm axial fans
- Airflow: ~4160 m³/h
- Air throw: up to 16 m
- Copper tube and aluminium fin coil
- 4.23 mm fin spacing
- Large heat exchange surface: 26.15 m²
- Designed for low-temperature applications
- High-capacity performance in compact form
- Easy installation and maintenance
Technical Specifications
- Model: MHE 770 E
- Fans: 4 × 300 mm
- Fan Speed: 1500 rpm
- Airflow: 4160 m³/h
- Air Throw: 16 m
- Surface Area: 26.15 m²
- Fin Spacing: 4.23 mm
- Dimensions (L×D×H): 2499 × 607 × 260 mm
- Net Weight: 57 kg
- Power Supply: 230V / 1Ph / 50Hz
Cooling Capacity
- Capacity: ~5.22 kW
- Conditions:
- Refrigerant: R404A
- Room Temperature: -18°C
- DT1: ~7K
Defrost Specifications
- Type: Electric defrost
- Defrost Power: 3600 W
- Defrost Current: 5.2 A
- Voltage: 400V / 3Ph / 50Hz
- Heaters: 2 + 1
Additional Details
- Connections (In/Out): 5/8″ – 7/8″
- Packed Weight: 78 kg
- Mounting Type: Ceiling mounted
FAQs
Q1: What type of application is this unit suitable for?
This unit is ideal for large freezer rooms and low-temperature cold storage (-18°C).
Q2: What is the airflow performance?
It delivers approximately 4160 m³/h airflow with an air throw of up to 16 meters.
Q3: What is the cooling capacity?
The unit provides approximately 5.22 kW cooling capacity under standard conditions.
Q4: What is the difference between 460 E and 770 E?
The 770 E has 4 fans and much larger surface area (26.15 m²), resulting in higher capacity.
Q5: Is a defrost system included?
Yes, it includes an electric defrost system (3600 W).
Q6: Is installation easy?
Yes, the ceiling-mounted compact design allows easy installation.
