PRODUCT DESCRIPTION

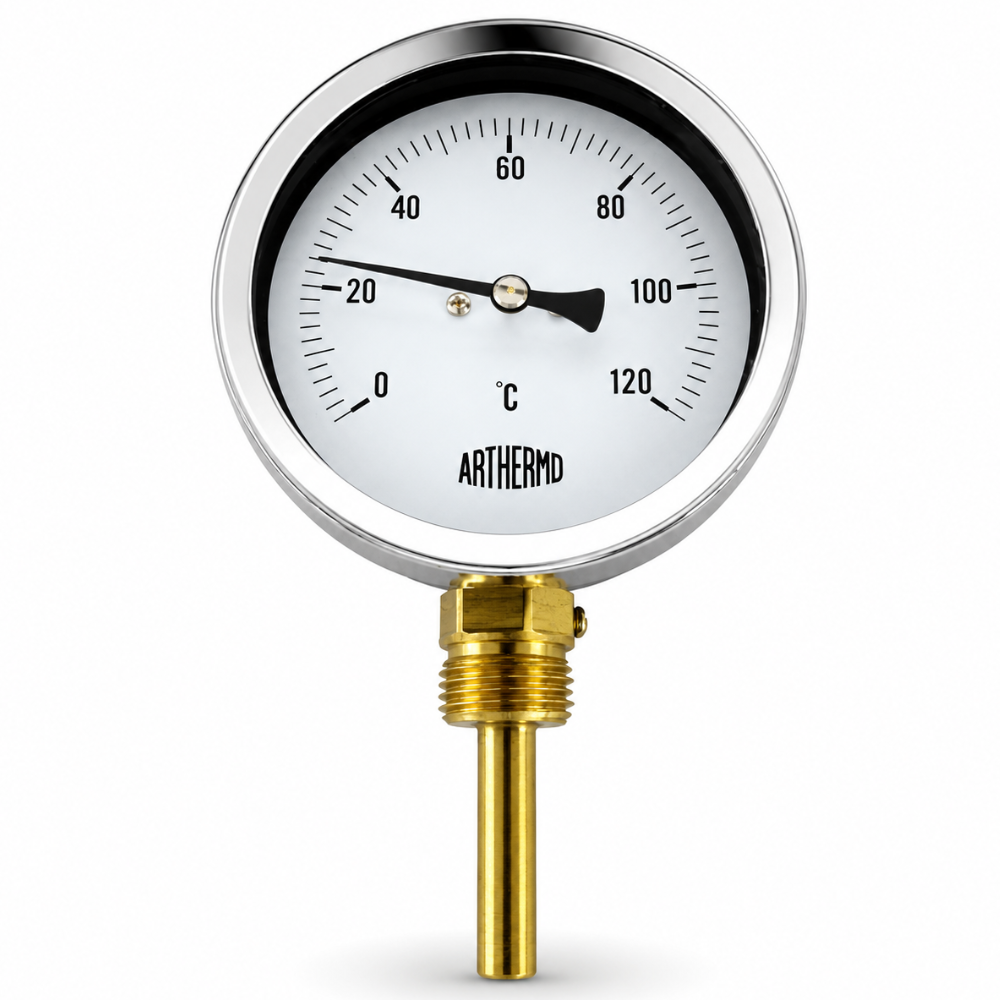

The FIG. 536 Radial Bimetal Thermometer by Arthermo is a precision-engineered temperature measuring instrument designed for HVAC, heating, thermosanitary, and industrial applications. Featuring a radial connection design with multiple dial size options, this thermometer delivers accurate and reliable temperature indication for boilers, heating systems, water circulation units, and industrial process equipment.
Manufactured with a durable black zinc steel case and chromed steel bezel, the FIG. 536 Series ensures long operational life and dependable performance in demanding environments. The thermometer includes a brass connection with Ø9 mm stem diameter and is available in multiple stem lengths for flexible installation requirements.
Its high-visibility white dial with black markings ensures easy readability, making it ideal for HVAC/R systems, industrial heating applications, and temperature monitoring systems requiring reliable analog measurement.
KEY FEATURES
- Radial connection bimetal thermometer
- Available in Ø60 mm, Ø80 mm, and Ø100 mm dial sizes
- Temperature range from 0 to 120°C
- Durable black zinc steel case
- Chromed steel bezel construction
- Brass connection fitting
- Clear analog display for easy readability
- Ø9 mm stem diameter
- Available in multiple stem lengths
- Suitable for HVAC and industrial applications
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Series | FIG. 536 |
| Brand | Arthermo |
| Type | Bimetal Thermometer |
| Mounting Type | Radial Connection |
| Temperature Range | 0 to 120°C |
| Dial Size Options | Ø60 mm / Ø80 mm / Ø100 mm |
| Stem Length Options | 50 mm / 100 mm |
| Stem Diameter | Ø9 mm |
| Connection Size | 1/2″ |
| Case Material | Black Zinc Steel |
| Bezel Material | Chromed Steel |
| Dial Color | White |
| Pointer Color | Black |
| Maximum Case Temperature | 80°C |
DIAL SIZE OPTIONS
| Code | Dial Size |
|---|---|
| FIG536-60 | Ø60 mm |
| FIG536-80 | Ø80 mm |
| FIG536-100 | Ø100 mm |
STEM LENGTH VARIANTS
| Model | Stem Length |
|---|---|
| FIG536-50 | 50 mm |
| FIG536-100 | 100 mm |
APPLICATIONS
- HVAC systems
- Boilers
- Heating systems
- Thermosanitary systems
- Industrial process equipment
- Water circulation systems
- Mechanical equipment
- Temperature monitoring systems
- Industrial heating applications
- Process control systems
FAQS SECTION
What type of thermometer is FIG. 536?
The FIG. 536 is a radial connection bimetal thermometer designed for HVAC and industrial temperature measurement applications.
Which dial sizes are available?
The thermometer is available in Ø60 mm, Ø80 mm, and Ø100 mm dial sizes.
What is the temperature range of the FIG. 536 Series?
The standard measuring range is 0 to 120°C.
Which stem lengths are available?
The FIG. 536 Series is available in 50 mm and 100 mm stem lengths.
Is the thermometer suitable for industrial applications?
Yes, it is suitable for industrial heating systems, boilers, HVAC systems, and thermosanitary applications.
