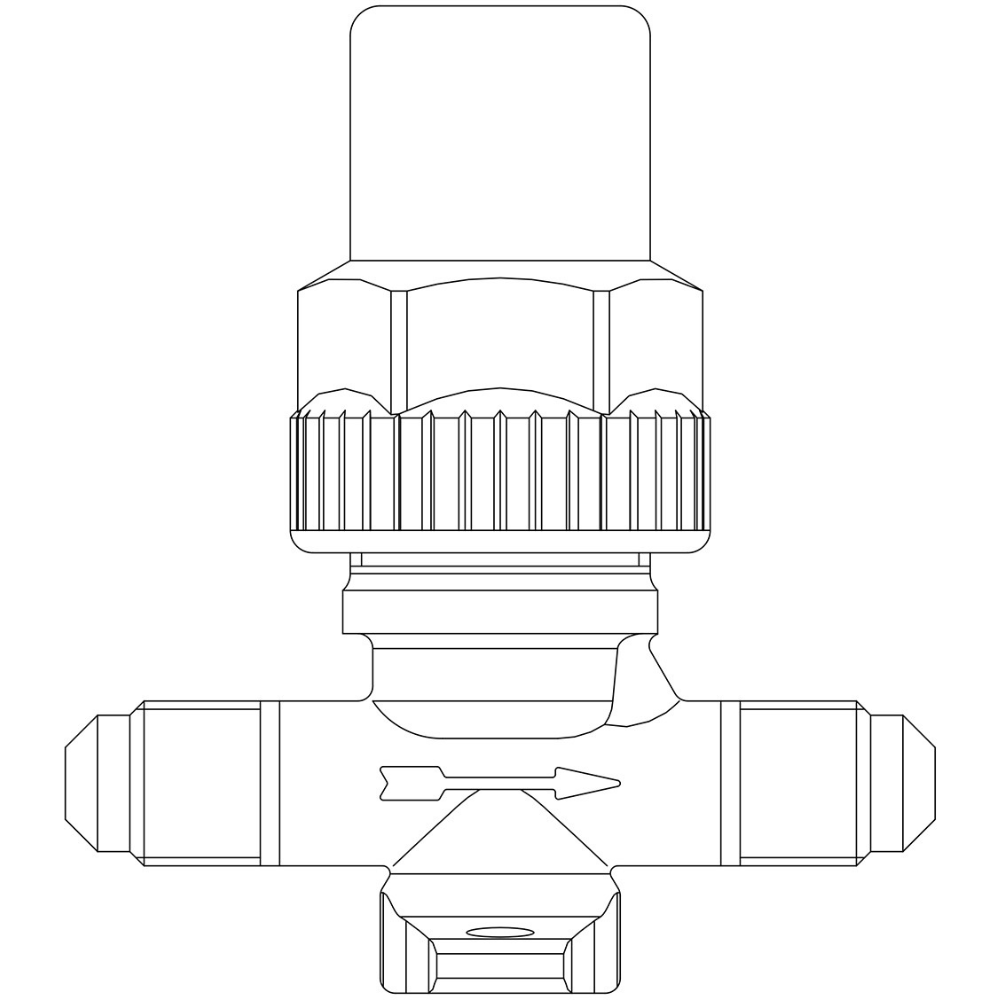

6010N/2 Two-Way Hermetic Valve | 1/4″ Flare | Castel
The Castel 6010N/2 Two-Way Hermetic Valve is a high-performance shut-off valve designed for HVAC and refrigeration systems. It allows reliable control and isolation of refrigerant flow, making it ideal for servicing, maintenance, and system safety.
This model features a 1/4″ SAE flare connection and is suitable for modern refrigeration systems using a wide range of refrigerants, including A1, A2L, and A3 classes.
As shown in the datasheet (page 1), the valve provides stable flow control with a Kv of 0.27 m³/h and supports medium-pressure applications up to 50 bar .
Key Benefits
Provides reliable shut-off and flow control
Flare connection for easy installation
Suitable for modern refrigerants (A1, A2L, A3)
Compact design for small systems
Durable hermetic construction
Ideal for service and maintenance applications
Pressure rating up to 50 bar
Specifications
Brand: Castel
Model: 6010N/2
Product Type: Two-Way Hermetic Valve
Connections
Connection Type: SAE Flare
Connection Size: 1/4″
Performance
Flow Coefficient (Kv): 0.27 m³/h
Pressure & Temperature
Maximum Working Pressure (PS): 50 bar
Maximum Working Pressure (MWP): 725 psi
Minimum Temperature: -40°C
Maximum Temperature: +150°C
Compatibility
Refrigerants:
HFC (R134a, R32, R404A, R407C, R410A, R507)
HFO (R1234yf, R1234ze)
HFO + HFC Blends (R448A, R449A, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R513A, R515A, R515B)
HC (R290, R600, R600a, R1270)
Applications
HVAC systems
Refrigeration systems
Service and maintenance points
System isolation and control
Small refrigeration units
FAQs
What is the function of this valve?
It is used to control or shut off refrigerant flow in the system.
What is the connection type?
It uses a 1/4″ SAE flare connection.
What is the flow capacity?
It has a Kv value of 0.27 m³/h.
What is the pressure rating?
It is rated up to 50 bar (725 psi).
Which refrigerants are supported?
It supports A1, A2L, and A3 refrigerants including HFC, HFO, and HC types.
