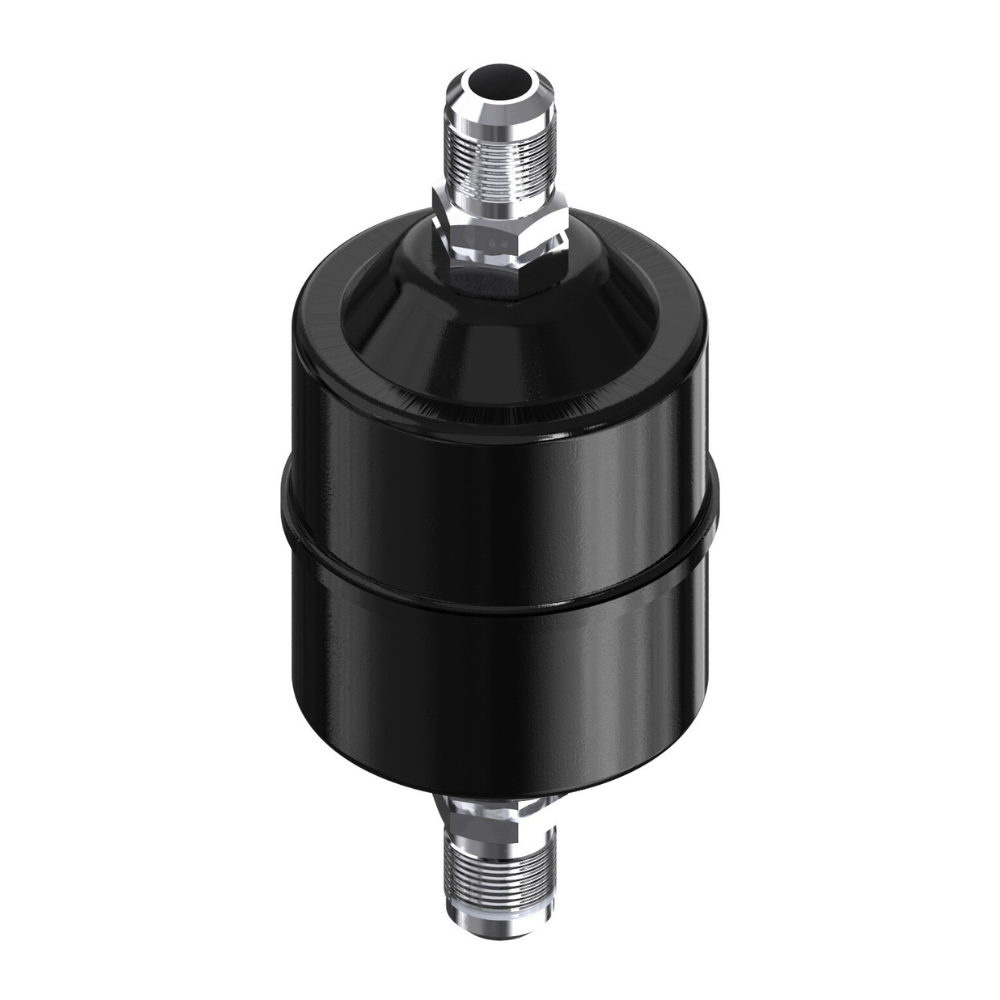

Danfoss DCL 164 Hermetic Filter Drier | 16 cu.in. | 1/2 in Flare |

Product Description:

The Danfoss DCL (023Z5011) is the professional choice for protecting larger commercial refrigeration units across the UAE. Equipped with a 16 cubic inch core made of 80% Molecular Sieve and 20% Activated Alumina, it provides a dual-action defense against the two biggest enemies of a cooling system: moisture and acid. This model is especially effective in Dubai’s high-temperature environments where chemical reactions can accelerate acid formation. Its 1/2 in flare connections ensure high flow rates with minimal pressure drop. The robust steel housing is finished with a corrosion-resistant powder coating, ensuring durability against the saline air in UAE coastal areas, making it a reliable safeguard for long-term HVAC/R performance.

Key Features & Benefits:

• Dual-Action Core: Effectively traps moisture and neutralizes acids to prevent compressor burnout in UAE industrial units.
• High Flow Capacity: 1/2 inch flare fittings allow for efficient refrigerant movement in medium-to-large UAE systems.
• Corrosion Protection: Advanced powder-painted finish designed to withstand the harsh, humid ambient conditions of the UAE.
• High-Pressure Security: Rated for 46 bar, making it fully compatible with R410A and R32 systems found across the UAE.
• Reliable Filtration: Internal felt filter captures particles down to 25 µm, protecting expansion valves from clogging in Dubai plants.

Technical Specifications :

FAQs:

• Q: Why use the 1/2″ Flare version (023Z5011) in my UAE system?
• A: It is ideal for systems requiring higher refrigerant flow rates while still needing the acid-removal capabilities of the DCL series in the UAE.
• Q: Can this handle the extreme heat of a Dubai summer?
• A: Yes, the solid core technology is designed to maintain high adsorption efficiency even at the elevated liquid line temperatures common in the UAE.
• Q: Is it suitable for systems after a compressor burnout in the UAE?
• A: Absolutely. The 20% activated alumina content is specifically designed to clean up acid residues in UAE refrigeration circuits.
