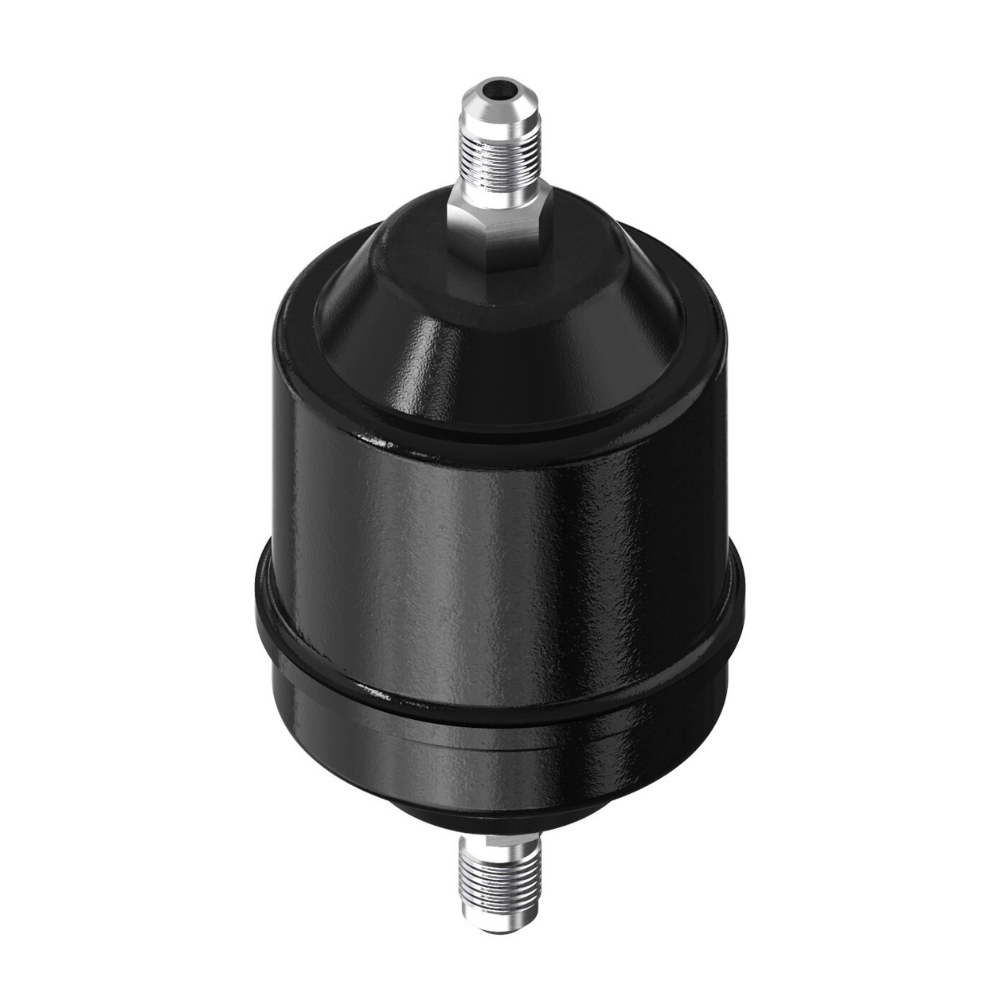

Danfoss DCL 053 Hermetic Filter Drier | 5 cu.in. | 3/8 in Flare
Product Description:
The Danfoss DCL (023Z500291) is an essential protection component for refrigeration systems operating in the demanding UAE environment. Its 5 cubic inch solid core consists of 80% Molecular Sieve and 20% Activated Alumina, providing a dual-action defense that effectively removes moisture while neutralizing harmful acids. This makes it particularly suitable for systems that have experienced motor burnouts or those using HCFC/CFC refrigerants and mineral oils in Dubai. With 3/8 in flare connections, it allows for quick installation and maintenance. The hermetically sealed steel housing and corrosion-resistant powder coating ensure long-term durability against the humid and saline air of UAE coastal regions.
Key Features & Benefits:
- Dual-Action Protection: Combines moisture adsorption with high acid-neutralizing capacity, vital for UAE systems with older refrigerants or oil types.
- Compact Reliability: 5 cu.in. size is perfect for protecting light commercial units and small AC systems in Dubai without wasting space.
- Corrosion-Resistant Shell: Engineered to withstand the aggressive, salty ambient conditions typical of the UAE coastline.
- High Working Pressure: Rated for 46 bar, ensuring safety and compatibility with high-pressure systems across the UAE.
- Internal Debris Filtration: Effectively traps metallic particles and dirt, protecting sensitive expansion devices in UAE refrigeration plants.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Product Model | DCL 053 (Industrial Variant) |
| Code Number | 023Z500291 |
| Core Volume | 5 cu.in. |
| Connection Size | 3/8 in (Flare) |
| Core Type | 80% Molecular Sieve / 20% Activated Alumina |
| Max. Working Pressure | 46 bar (667 psig) |
| Temperature Range | -40°C to +70°C |
FAQs:
- Q: When should I choose DCL (023Z500291) over DML in the UAE?
- A: Choose DCL if your system needs acid removal (e.g., after a compressor burnout) or if you are using mineral/alkylbenzene oils in your UAE facility.
- Q: Is this compact size effective for Dubai’s heat?
- A: Yes, the high-density solid core ensures maximum adsorption efficiency even when ambient temperatures in the UAE are extreme.
- Q: Does the “91” suffix change the product specs for the UAE market?
- A: No, the “91” denotes an industrial bulk pack which provides the same premium Danfoss quality at a better value for UAE contractors.
