Product details

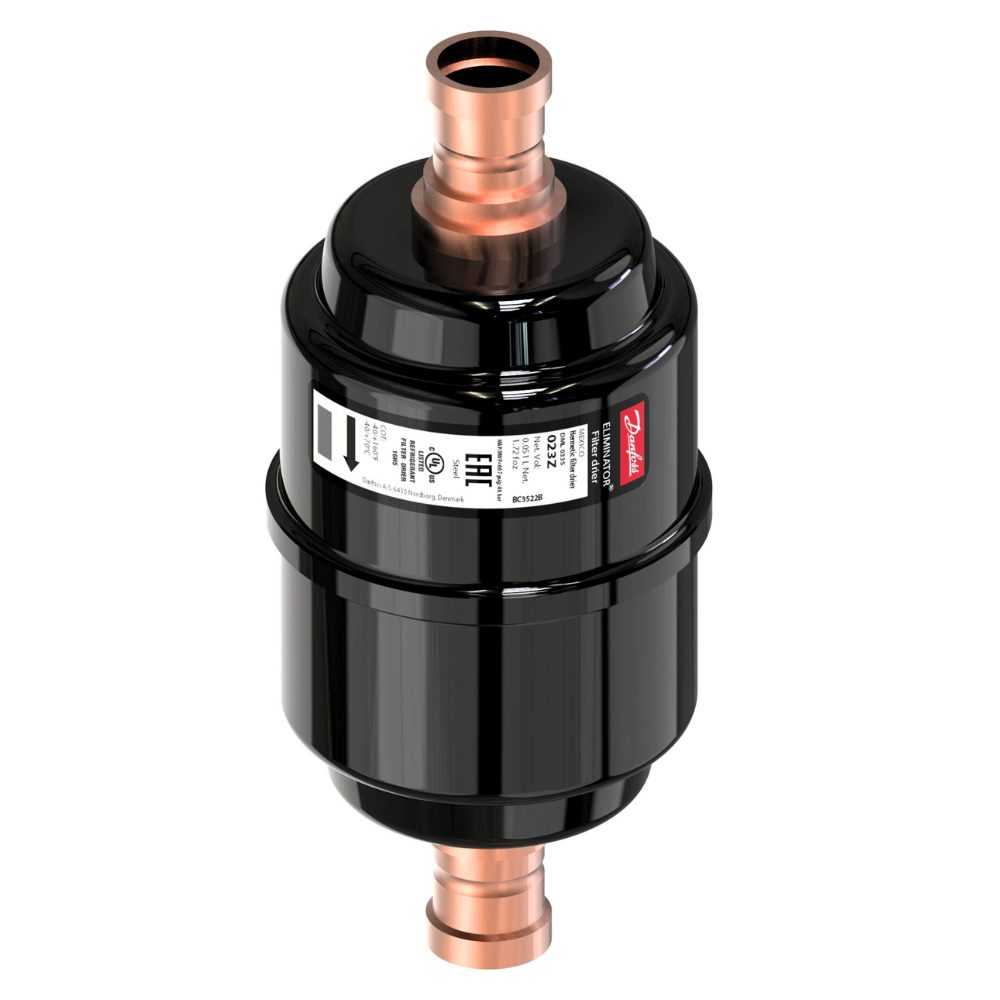

Danfoss DML 032s Hermetic Filter Drier | 3 cu.in. | 1/4 in ODF Solder
Product Description:
The Danfoss DML (023Z455591) is the professional’s choice for permanent, space-constrained installations across the UAE. Despite its minimal 3 cubic inch size, it features a solid core of 100% Molecular Sieve, providing maximum moisture adsorption for HFC refrigerants and sensitive oils. This model is distinguished by its 1/4 in Cu-plated ODF solder connections, which facilitate a reliable and easy brazing process with copper piping, eliminating potential leak points compared to flare fittings. Its powder-coated steel shell is engineered to resist corrosion in the humid and saline air of UAE coastal regions, making it an essential component for high-end commercial refrigerators and specialty cooling equipment in the Middle East.
Key Features & Benefits:
- Leak-Proof Solder Joints: Cu-plated steel connectors ensure a superior bond with copper lines, ideal for high-vibration UAE environments.
- Space-Saving Protection: Ultra-compact 3 cu.in. design fits easily into the tightest internal compartments of Dubai refrigeration units.
- High-Efficiency Drying: 100% molecular sieve core prevents ice formation and acid buildup, even in extreme UAE heat.
- Corrosion Resistance: Specially coated housing survives the aggressive, salty ambient conditions typical of the UAE coastline.
- High Pressure Safety: Rated for 46 bar, making it fully compatible with R410A and R32 systems used throughout the UAE.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Product Model | DML 032s (Industrial Variant) |
| Code Number | 023Z455591 |
| Core Volume | 3 cu.in. |
| Connection Size | 1/4 in (ODF Solder) |
| Connector Material | Steel, Cu-plated |
| Max. Working Pressure | 46 bar (667 psig) |
| Compatibility | HFC, HCFC, and HFO Refrigerants |
FAQs:
- Q: Why use a solder version (023Z455591) for small systems in the UAE?
- A: Solder connections provide a permanent, hermetic seal that is more reliable than flare nuts in the long term, especially in UAE commercial applications.
- Q: Is 3 cu.in. enough for moisture removal in Dubai?
- A: Yes, for small-capacity systems, the high-density 100% molecular sieve core provides more than enough adsorption capacity for the UAE climate.
- Q: Does the “91” industrial pack benefit UAE service centers?
- A: Absolutely. It offers bulk value and consistent quality for UAE technicians performing multiple installations or repairs.
