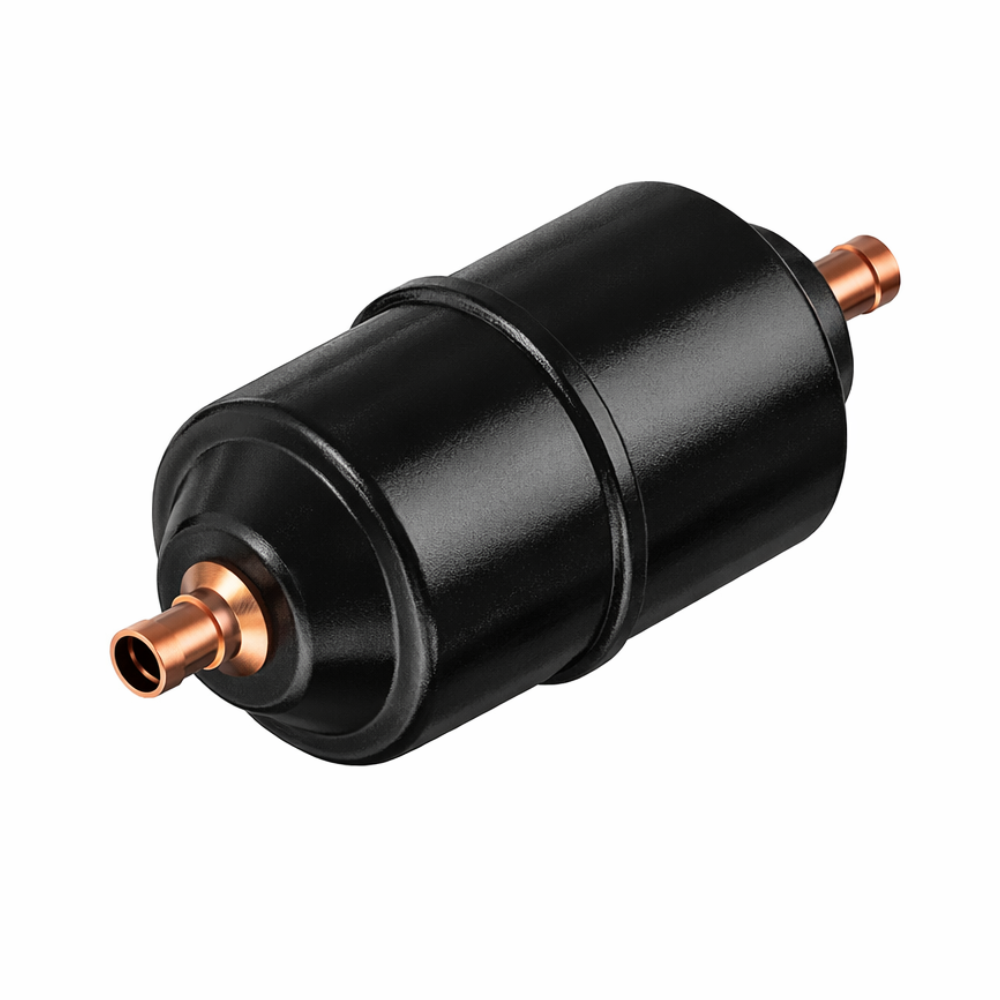

Danfoss DCL 083s Hermetic Filter Drier | 8 cu.in. | 3/8 in ODF Solder
Product Description:
The Danfoss DCL (023Z451191) is the professional choice for systems in the UAE that demand superior cleanup after service or burnout. Its 8 cubic inch solid core features a specialized blend of 80% Molecular Sieve and 20% Activated Alumina, providing a dual-action defense that adsorbs moisture while neutralizing harmful acids. This model is equipped with 3/8 in Steel Cu-plated ODF solder connections, allowing for a robust, permanent brazed bond with copper piping, which is essential for the high-vibration environments of Dubai’s commercial refrigeration. The powder-coated steel housing is designed to resist corrosion in the saline coastal air of the UAE, ensuring that your system remains clean and efficient even in extreme Middle Eastern climates.
Key Features & Benefits:
- Comprehensive Cleanup: Dual-action core removes moisture and neutralizes acids to prevent recurring compressor failures in UAE plants.
- Leak-Proof Solder Design: Cu-plated connectors ensure easy brazing and a permanent hermetic seal for UAE industrial units.
- Corrosion-Resistant Housing: Built to withstand the harsh, salty ambient conditions of coastal Dubai and Abu Dhabi.
- Versatile Compatibility: Rated for 46 bar, making it safe for R410A, R32, and other high-pressure refrigerants used across the UAE.
- Precise Filtration: Internal 25 µm filter felt captures metallic particles and debris, safeguarding expansion valves in UAE cooling systems.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Product Model | DCL 083s (Industrial Variant) |
| Code Number | 023Z451191 |
| Core Volume | 8 cu.in. |
| Connection Size | 3/8 in (ODF Solder) |
| Core Type | 80% Molecular Sieve / 20% Activated Alumina |
| Max. Working Pressure | 46 bar (667 psig) |
| Temperature Range | -40°C to +70°C |
FAQs:
- Q: Why is the DCL 083s (023Z451191) recommended for Dubai after a compressor change?
- A: The activated alumina in the core is essential for neutralizing residual acids left behind by a motor burnout in UAE systems.
- Q: Is the 3/8″ solder connection better than flare in the UAE heat?
- A: Yes, a brazed solder connection eliminates potential leak points caused by thermal expansion during the intense UAE summer.
- Q: Can this handle the high humidity of UAE coastal areas?
- A: Absolutely. The corrosion-resistant powder coating is specifically designed for high-humidity and saline atmospheres found in the UAE.
