Product details

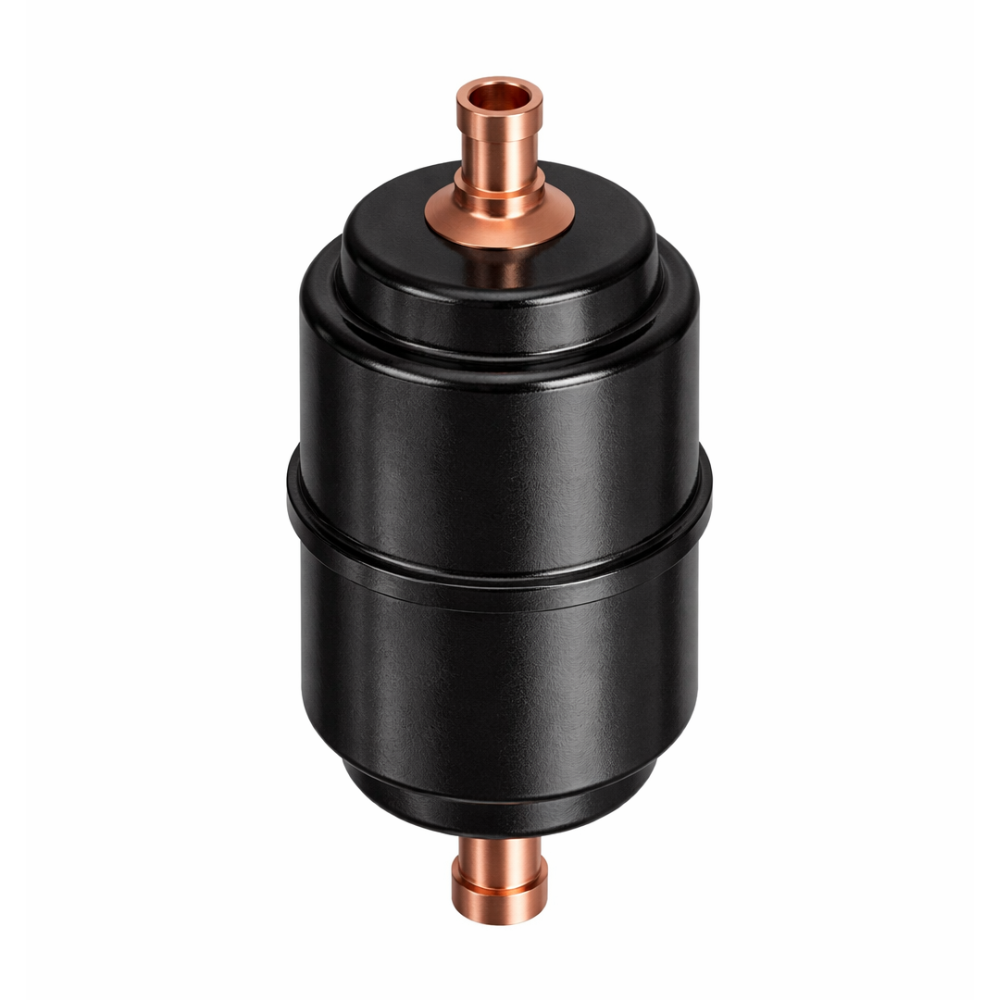

Danfoss DCL 032s Hermetic Filter Drier | 3 cu.in. | 1/4 in ODF Solder
Product Description:
The Danfoss DCL (023Z4501) is the professional choice for small-scale systems in the UAE that require advanced chemical protection. Its 3 cubic inch solid core (80% Molecular Sieve / 20% Activated Alumina) provides a dual-action defense, effectively adsorbing moisture while neutralizing harmful acids—essential for systems using mineral oils or those prone to chemical breakdown in Dubai’s heat. This model features 1/4 in Steel Cu-plated ODF solder connections, allowing for a superior, permanent brazed bond with copper piping. The robust steel housing and corrosion-resistant coating ensure long-term durability against the humid and saline air of UAE coastal environments, making it ideal for high-end commercial refrigerators and scientific equipment.
Key Features & Benefits:
- Dual-Action Cleanup: Effectively removes moisture and neutralizes acids to prevent compressor damage in UAE specialized units.
- Leak-Proof Solder Design: Cu-plated connectors ensure easy brazing and a permanent hermetic seal, perfect for high-vibration UAE environments.
- Ultra-Compact Efficiency: 3 cu.in. size fits easily into the tightest internal compartments of Dubai refrigeration equipment.
- Corrosion-Resistant Housing: Built to withstand the aggressive, salty ambient conditions typical of the UAE coastline.
- High-Pressure Reliability: Rated for 46 bar, making it fully compatible with modern refrigerants like R410A used throughout the UAE.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Product Model | DCL 032s |
| Code Number | 023Z4501 |
| Core Volume | 3 cu.in. |
| Connection Size | 1/4 in (ODF Solder) |
| Core Type | 80% Molecular Sieve / 20% Activated Alumina |
| Max. Working Pressure | 46 bar (667 psig) |
| Temperature Range | -40°C to +70°C |
FAQs:
- Q: Why choose the DCL 032s (023Z4501) for small UAE systems?
- A: It offers the added benefit of acid removal in a compact, solderable format, which is vital for long-term reliability in UAE commercial applications.
- Q: Is this model compatible with Dubai’s coastal humidity?
- A: Yes, the high-quality powder-painted finish is specifically designed to resist rust in the saline atmospheres of the UAE.
- Q: Does it work with HFC refrigerants in the UAE?
- A: Absolutely. It is compatible with HFC, HCFC, and CFC refrigerants commonly found in UAE cooling circuits.
