Product details
Product Description

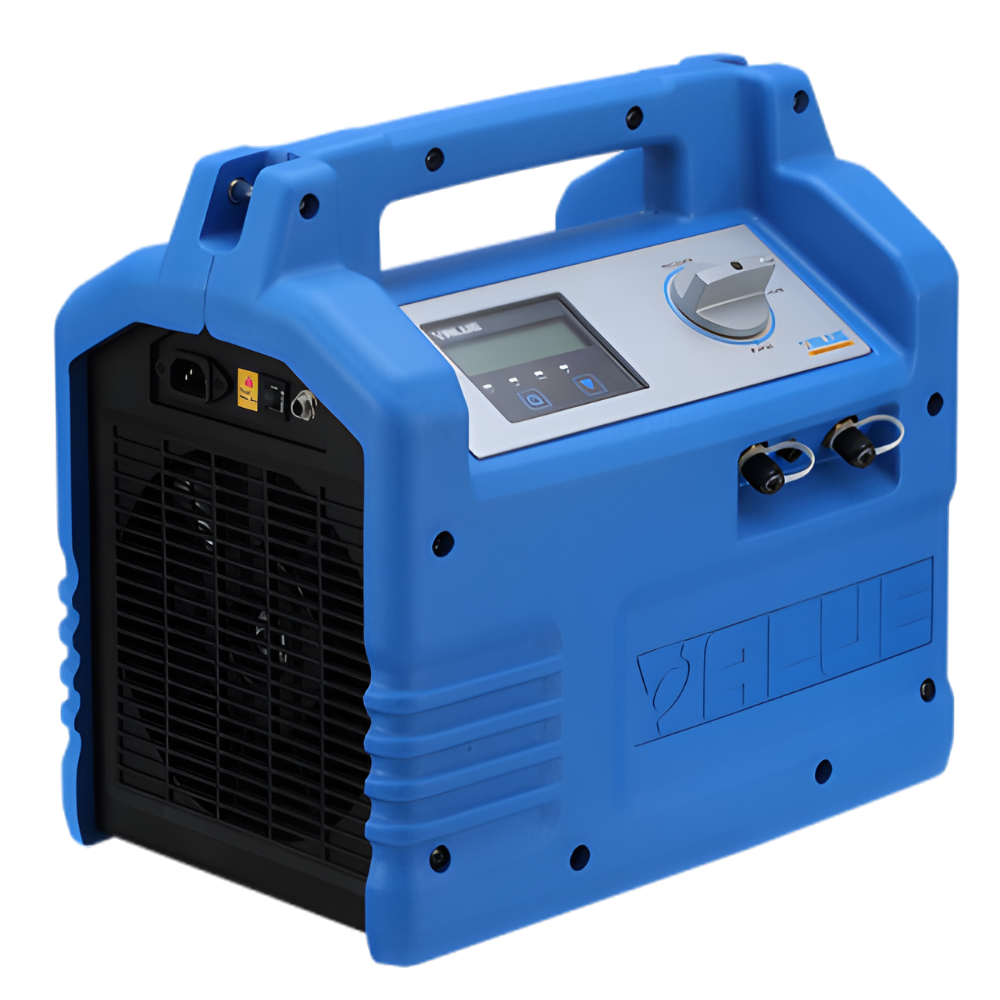

The VRR24M-B refrigerant recovery unit from Value is designed for fast and efficient recovery of HFC and HCFC refrigerants, including modern gases like R32 and R1234yf. It is ideal for professional HVAC servicing, maintenance, and refrigerant handling applications.
This advanced model features a brushless DC motor with a two-piston compressor, delivering high recovery performance with low maintenance. The unit includes a digital display, self-purge function, and built-in safety protection, making it reliable and easy to operate in both field and workshop environments.
Key Features & Benefits
- Brushless DC motor (1 HP) for high efficiency
- Twin-piston compressor for faster recovery
- Digital display for precise monitoring
- Self-purge function for improved performance
- Compatible with R32, R1234yf, and other refrigerants
- High & low pressure gauges included
- Automatic high-pressure safety shut-off
- Compact and lightweight design
Technical Specifications
| Specification | Details |
|---|---|
| Model | VRR24M-B |
| Product Type | Refrigerant Recovery Unit |
| Brand | Value |
| Refrigerants | R12, R134a, R22, R404A, R410A, R507, R32, R1234yf etc. |
| Voltage | 230V |
| Frequency | 50 Hz |
| Phase | 1 Phase |
| Motor Type | Brushless DC |
| Motor Power | 1 HP |
| Motor Speed | 3000 rpm |
| Max Current | ~5 A |
| Compressor Type | Oil-less, Air-cooled, Twin Piston |
| Safety | Auto Shut-off (38.5 bar) |
| Recovery Type | Vapor / Liquid / Push-Pull |
| Recovery Rate (Max) | Up to ~9.5 kg/min |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 380 × 250 × 360 mm |
| Weight | ~10 – 11 kg |
📌 High recovery rates up to 9.5 kg/min (push/pull mode) depending on refrigerant category
Frequently Asked Questions (FAQs)
1. Is VRR24M-B a compressor?
No, it is a refrigerant recovery unit used for HVAC servicing.
2. What makes this model different from VRR24L?
This model has a brushless DC motor + twin piston design, offering higher efficiency and performance.
3. Which refrigerants can it handle?
It supports R32, R1234yf, R410A, R404A, R134a, R22 and many more.
4. What is the power requirement?
It operates on 230V, 50Hz, single-phase power supply.
5. Does it have safety protection?
Yes, it includes automatic high-pressure shut-off (38.5 bar) for safe operation.
6. Is it suitable for field technicians?
Yes, its compact and lightweight design (~10–11 kg) makes it ideal for field use.
