Product details
Product Description

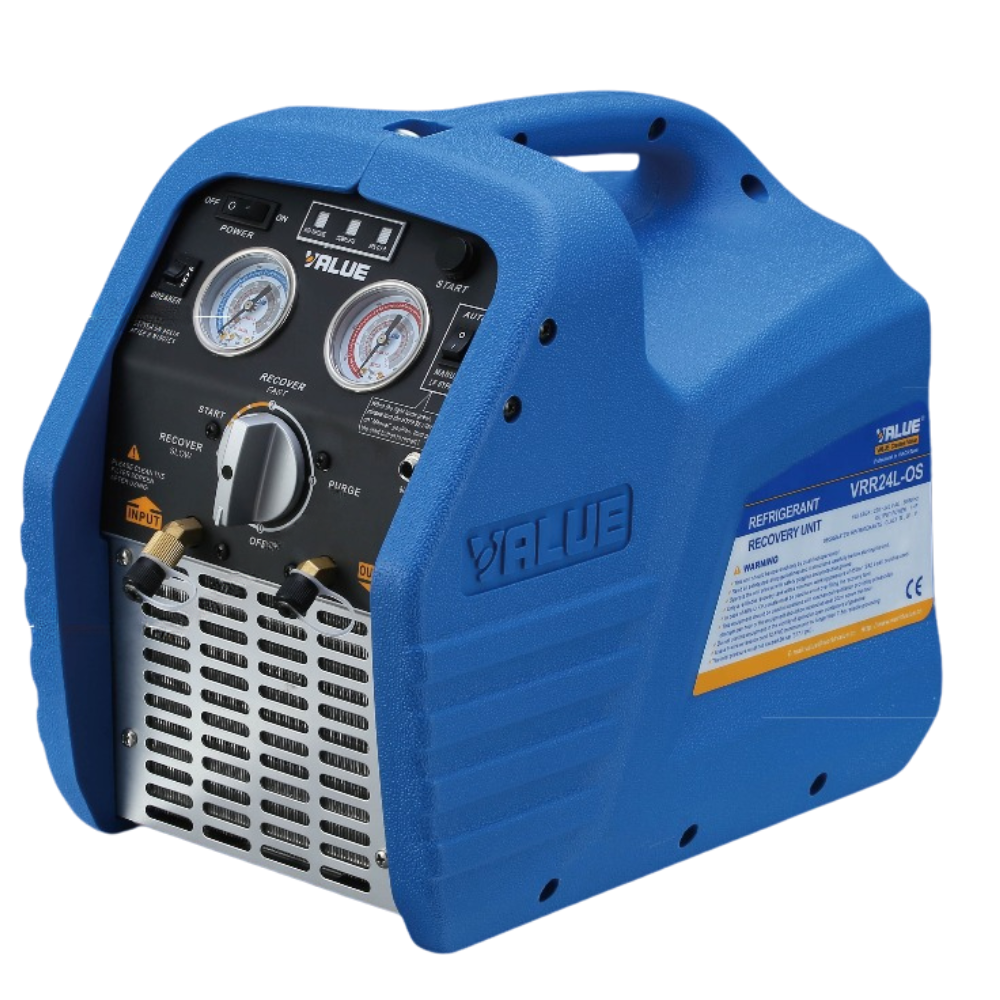

The VRR24L refrigerant recovery unit from Value is designed for fast and efficient recovery of HFC and HCFC refrigerants across a wide range of HVAC applications. It is suitable for servicing, maintenance, and refrigerant handling tasks.
This unit features an oil-less air-cooled piston compressor, ensuring reliable performance with low maintenance requirements. Its compact design, combined with one-knob operation and built-in gauges, makes it ideal for professional technicians working in the field or workshop environments.
Key Features & Benefits
- Oil-less air-cooled piston compressor
- Fast recovery (vapor, liquid & push/pull modes)
- Compatible with multiple refrigerants (R134a, R22, R404A, R410A, etc.)
- High efficiency and reliable performance
- Built-in high & low pressure gauges
- Easy one-knob operation
- Automatic safety shut-off system
- Compact and portable design
Technical Specifications
| Specification | Details |
|---|---|
| Model | VRR24L |
| Product Type | Refrigerant Recovery Unit |
| Brand | Value |
| Refrigerants | R12, R134a, R22, R404A, R410A, R507 etc. |
| Voltage | 230V |
| Frequency | 50 Hz |
| Phase | 1 Phase |
| Motor Power | 1 HP |
| Motor Speed | 1450 rpm |
| Max Current | ~5 A |
| Compressor Type | Oil-less, Air-cooled, Piston |
| Safety | Auto Shut-off (38.5 bar) |
| Recovery Type | Vapor / Liquid / Push-Pull |
| Recovery Rate (Max) | Up to ~9.5 kg/min |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 400 × 250 × 355 mm |
| Weight | ~13.5 kg |
📌 Recovery rates vary by refrigerant category (up to 9.5 kg/min push/pull mode)
Frequently Asked Questions (FAQs)
1. Is VRR24L a compressor?
No, it is a refrigerant recovery unit used for HVAC servicing.
2. Which refrigerants can it recover?
It supports a wide range including R134a, R22, R404A, R410A, and more.
3. What type of compressor is inside?
It uses an oil-less air-cooled piston compressor, ensuring low maintenance.
4. What is the power requirement?
It operates on 230V, 50Hz, single-phase power supply.
5. Is it portable?
Yes, it is compact and lightweight (~13.5 kg), ideal for field work.
6. Does it have safety protection?
Yes, it includes automatic high-pressure shut-off (38.5 bar) for safe operation.
