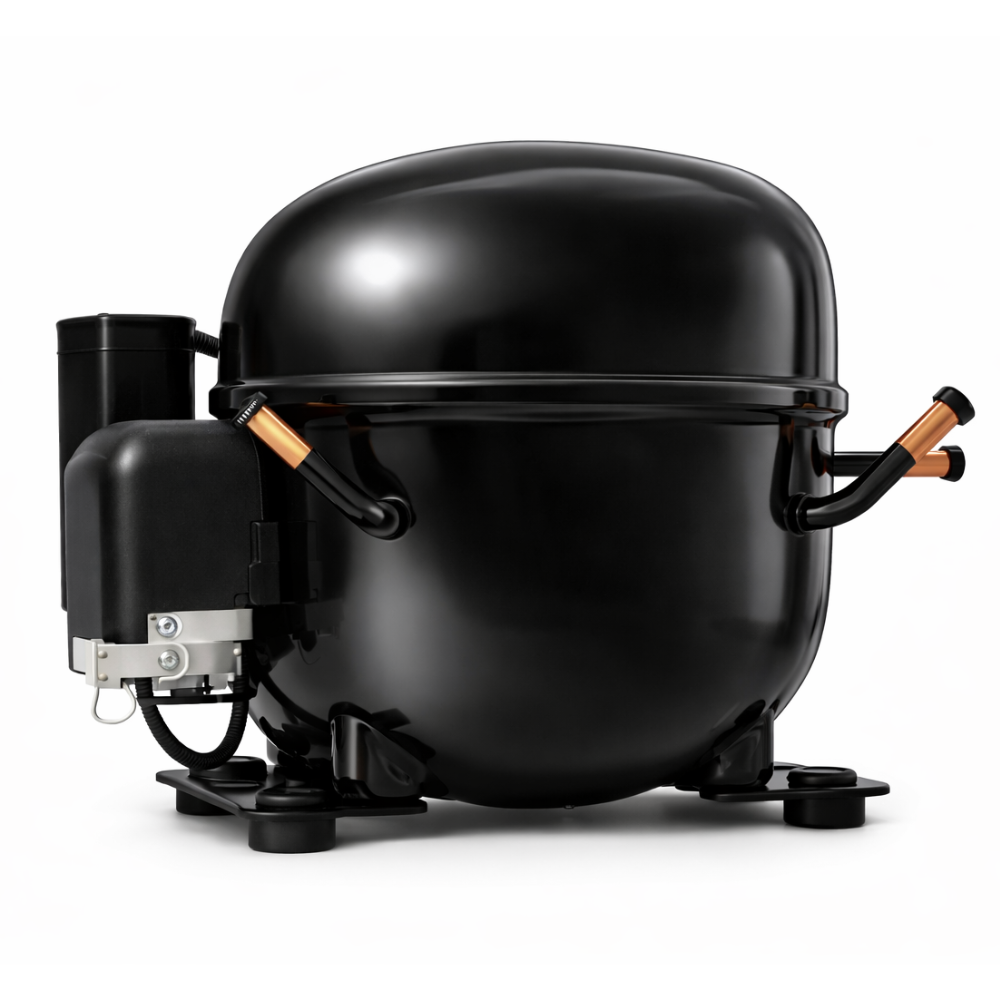

Compressor NEU6214Z R134a HBP 220–240V 0.5HP Embraco

The Embraco NEU6214Z hermetic reciprocating compressor is designed for high back pressure (HBP) refrigeration applications, delivering efficient cooling performance in medium and high temperature ranges. It is ideal for commercial refrigeration systems such as beverage coolers, display cabinets, and food storage units.

With its compact design, optimized displacement, and energy-efficient motor, this compressor ensures reliable operation, low energy consumption, and long service life in continuous-use environments.

Key Benefits

• Designed for high back pressure (HBP) applications
• Efficient cooling performance in medium and high temperature systems
• Energy-saving operation reduces power consumption
• Compact and durable hermetic reciprocating design
• Stable performance under continuous operation
• Compatible with capillary tube and expansion valve systems

Specifications

• Brand: Embraco
• Model: NEU6214Z
• Compressor Type: Hermetic reciprocating compressor
• Application Type: High Back Pressure (HBP)
• Refrigerant: R134a
• Voltage/Frequency: 220–240V / 50Hz
• Phase: Single Phase (1PH)
• Horsepower: 0.5 HP (1/2 HP)
• Displacement: 16.8 cm³
• Cooling Capacity: ~724 – 1367 W (depending on evaporating temp)
• Motor Type: CSIR / CSR
• Oil Type: POE (ISO 22)
• Oil Charge: ~350 ml
• Starting Current (LRA): ~22 – 25 A
• Weight: ~11.5 – 11.6 kg
• Cooling Method: Fan cooling required
• Expansion Device: Capillary tube or expansion valve
• Operating Range: Approx. -15°C to +10°C (HBP)

Applications

• Beverage coolers and bottle chillers
• Display refrigerators and merchandisers
• Commercial refrigeration systems
• Food storage and preparation units
• Medium and high temperature cooling systems
• Medical and pharmaceutical refrigeration

FAQs

What type of systems is the NEU6214Z suitable for?

It is designed for high back pressure (HBP) refrigeration systems, commonly used in medium and high temperature applications.

Can this compressor be used in beverage coolers?

Yes, it is ideal for beverage coolers, display refrigerators, and similar commercial applications.

Is this compressor energy efficient?

Yes, it is optimized for efficient cooling with reduced energy consumption.

Which refrigerant does it use?

It operates with R134a refrigerant, widely used in commercial refrigeration systems.
