Product details

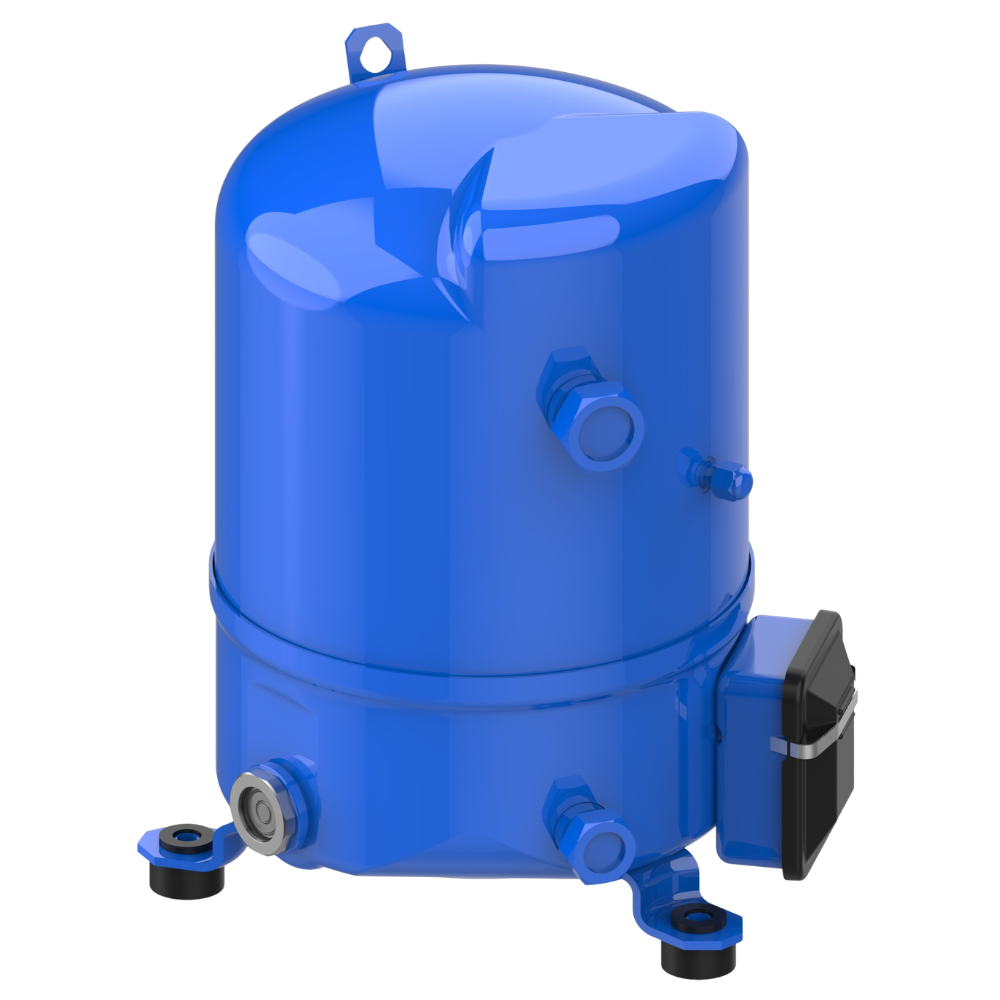

Danfoss Maneurop MTZ36JG4BVE Reciprocating Compressor | 3 HP
Product Description:
The Danfoss MTZ36JG4BVE (the designated after-sale successor to the MTZ36-4VM series) is a legendary workhorse in the refrigeration industry. Delivering a robust 3 HP output, this unit is optimized for HFC refrigerants like R407C, R134a, and R404A, making it the primary choice for walk-in cold rooms, supermarket refrigeration, and industrial process cooling in the UAE. Its hermetic design features Maneurop’s signature large internal free volume, which acts as a powerful buffer against liquid slugging. Built to thrive in extreme high-ambient temperatures, the MTZ36JG4BVE utilizes a 100% suction-gas cooled motor to ensure continuous, reliable operation even during the peak Middle Eastern summer heat.
Key Features & Benefits:
- Industrial-Grade 3 HP Power: Provides stable and efficient cooling for medium-to-large commercial refrigeration systems.
- Superior Liquid Handling: The large shell design protects internal mechanical components from damage due to liquid refrigerant return.
- Extreme Climate Resilience: Specifically engineered to maintain peak performance in high-ambient UAE conditions (up to 50°C).
- Versatile Multi-Refrigerant Support: Fully compatible with R407C, R134a, R404A, and R507A, simplifying field service logistics.
- Service-Ready Design: Equipped with standard Rotolock valves for fast, leak-free, and professional installation.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss (Maneurop) |
| Model Number | MTZ36JG4BVE (MTZ36-4VM) |
| Compressor Type | Reciprocating (Hermetic) |
| Horsepower (HP) | 3 HP |
| Refrigerant(s) | R407C, R134a, R404A, R507A |
| Voltage / Phase | 380-400V / 3-Phase / 50Hz (460V / 60Hz) |
| Oil Type | POE (Polyolester Oil) |
| Displacement | 60.47 cm³/rev |
| Cooling Capacity | ~7.8 kW (at Standard MBP Rating) |
| Connection Type | Rotolock |
| Net Weight | ~25 kg |
FAQs:
- Q: Is the MTZ36JG4BVE a direct replacement for the MTZ36-4VM?
- A: Yes, it is the official technical replacement, sharing the same physical footprint and electrical performance.
- Q: Can this be used for air conditioning?
- A: Yes, it is highly effective for specialized high-temperature cooling and small-scale commercial HVAC.
- Q: Is it pre-charged with oil?
- A: Yes, it comes factory-charged with POE oil, specifically required for modern HFC refrigerants used in Dubai.
