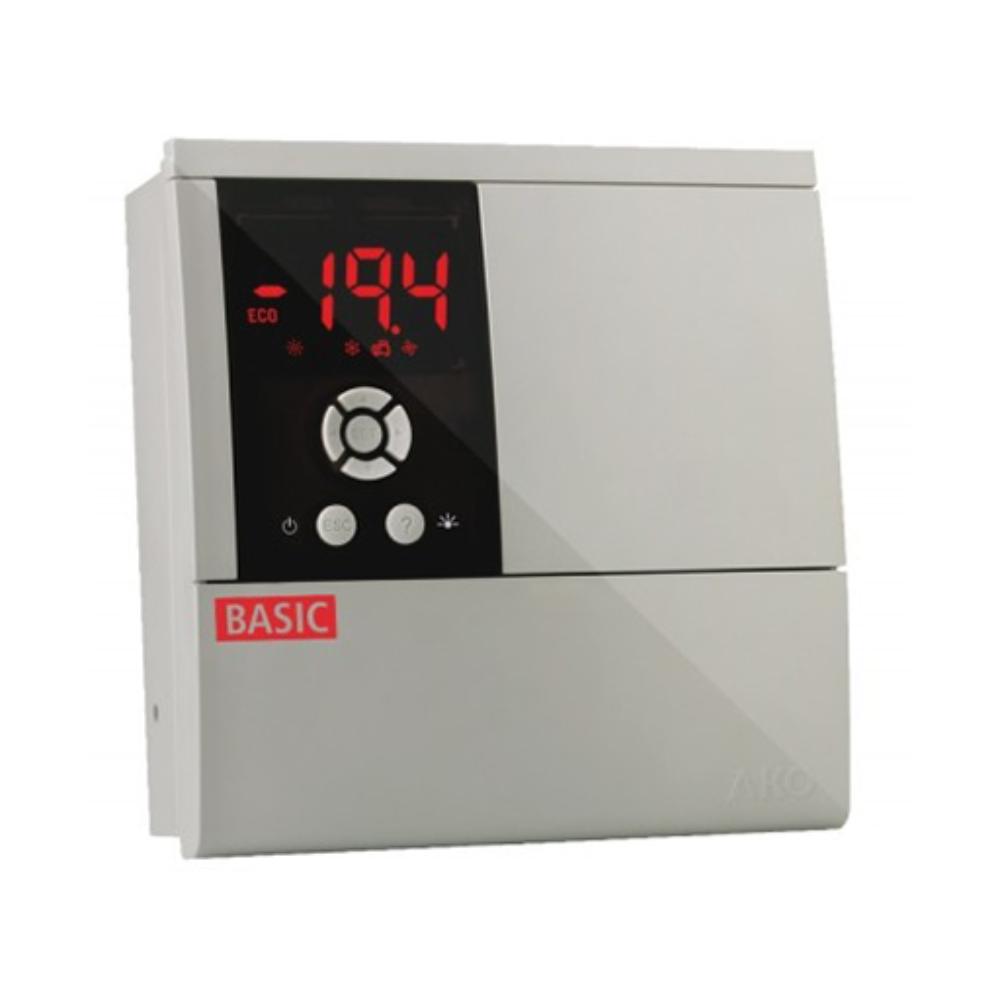

Control Panel 15626 AKO

Control Panel 15626 AKO is a professional refrigeration controller developed for efficient management of cold rooms and commercial refrigeration systems. It provides precise temperature monitoring, defrost control, compressor and fan management, and auxiliary control functions within one durable control unit.

The panel supports multiple temperature probe inputs and includes integrated relays for compressor, defrost, lighting, and fan operations. Designed for wall-mounted installation, the controller ensures dependable operation while maintaining stable storage conditions in commercial and industrial environments.

Key Benefits

Supports multiple temperature probes for accurate monitoring
Integrated relays manage compressor, fan, lighting, and defrost functions
Built-in buzzer provides instant alarm notification
Wall-mounted enclosure simplifies installation
RS485 communication allows system integration and monitoring
IP65 protection ensures safe operation in demanding environments
Reliable temperature control improves system efficiency
Designed for professional refrigeration applications

Specifications

Brand: AKO
Product Name: Control Panel
Model: 15626
Supply Voltage: 230 V AC
Mounting Type: Wall-mounted version
Mounting Dimensions: 214 × 214 mm
Probe Type: NTC
Room Temperature Probe Input: NTC
Defrost Temperature Probe: NTC
Temperature Probe 3: Supported
Relay Outputs: 5
Compressor Relay: NO-11A(11)
Defrost Relay: DEF 2.5 kW / 1P
Fan Relay: NO-3A(3)
Auxiliary Relay: 1 CO-2A(2)
Light Relay: NO-2A(2)
Buzzer: Internal buzzer included
Interface: RS485 communication
Protection Rating: IP65
Voltage Type: AC
Measuring Range: -50 °C to +99 °C
Accuracy: ±1%
Display: 3½ digit display
Scope of Delivery: 1 × NTC probe included

Applications

Cold room temperature control systems
Commercial refrigeration installations
Food storage and warehouse cooling rooms
Supermarket refrigeration systems
Industrial cooling chambers and storage areas

FAQs

Can the panel control compressor and defrost functions?
Yes, dedicated relays manage both compressor and defrost operations.

Does it support remote monitoring integration?
Yes, RS485 interface allows connection with monitoring systems.

Is the unit protected against moisture and dust?
Yes, the IP65 enclosure protects against dust and water exposure.

Is a temperature probe included?
Yes, one NTC probe is included with the control panel.
