Product Description

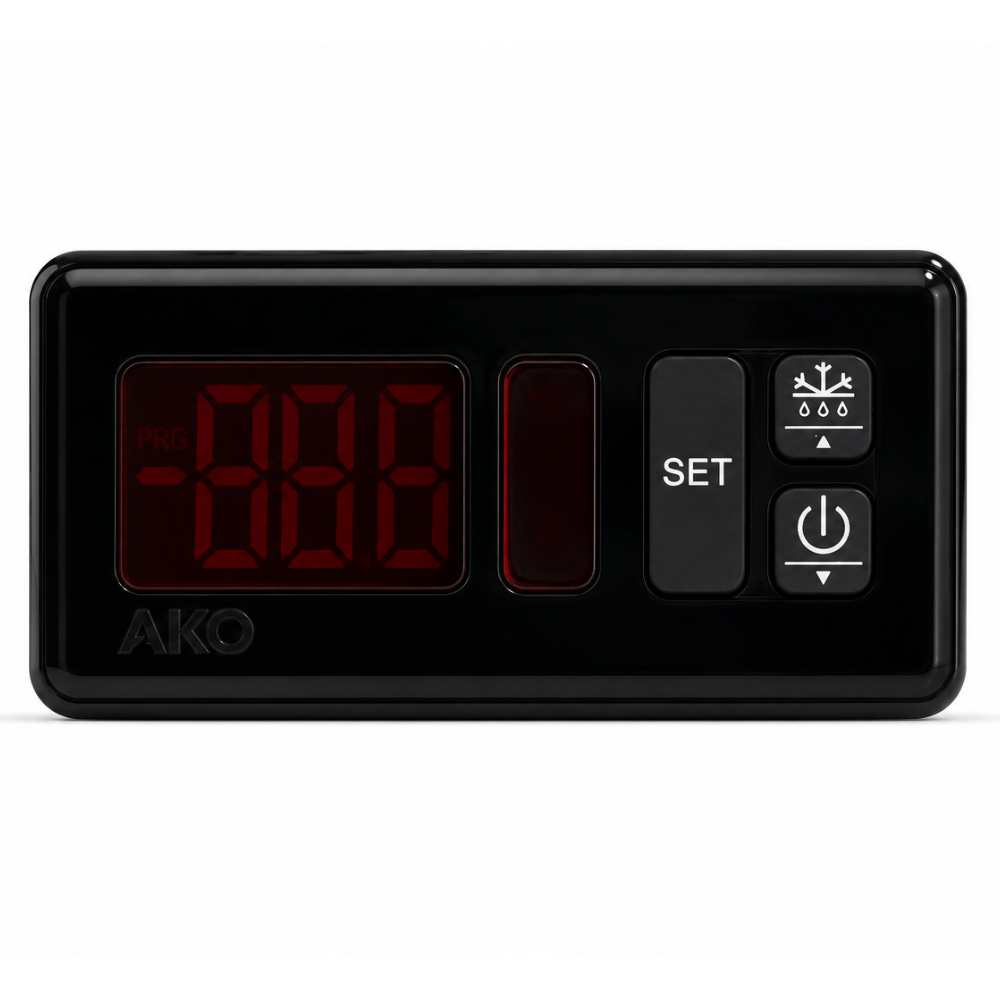

The AKO-D14123-C Digital Temperature Controller is an advanced refrigeration controller designed for commercial and industrial cooling applications requiring intelligent temperature management and communication integration.

This model includes integrated Modbus RTU RS485 communication, allowing remote monitoring and centralized refrigeration management through compatible HVAC/R supervision systems and AKONet software.

Engineered for professional refrigeration applications, the controller provides accurate temperature regulation, automatic defrost management, compressor protection, programmable parameters, and cooling/heating operating modes for reliable refrigeration performance.

The controller features a bright LED display, compact panel-mount design, and IP65 front protection, making it ideal for cold rooms, refrigerated cabinets, freezer systems, beverage coolers, and industrial refrigeration panels.

Compatible with both NTC and PTC probes, the AKO-D14123-C supports precise refrigeration monitoring and advanced refrigeration system integration for professional HVAC/R environments.

Key Features

• Digital refrigeration temperature controller
• Integrated Modbus RTU RS485 communication
• Remote monitoring capability
• Automatic and manual defrost function
• Compressor control relay
• Cooling and heating operation modes
• LED digital display
• Programmable refrigeration parameters
• Compressor protection delay
• Compatible with NTC and PTC probes
• Compact panel mount design
• IP65 front protection
• Suitable for commercial HVAC/R systems

Applications

• Cold Rooms
• Freezer Rooms
• Commercial Refrigeration Systems
• Refrigerated Cabinets
• Beverage Coolers
• Industrial Cooling Systems
• HVAC/R Refrigeration Panels
• Centralized Refrigeration Monitoring Systems

Technical Specifications

• Brand: AKO
• Model: D14123-C
• Product Type: Digital Temperature Controller
• Power Supply: 230V AC ±10% 50/60Hz
• Power Consumption: 3.5 VA
• Temperature Range (NTC): -50°C to +99°C
• Temperature Range (PTC): -50°C to +150°C
• Resolution: 0.1°C
• Probe Compatibility: NTC / PTC
• Relay Output: 16A COOL Relay
• Defrost Function: Automatic / Manual
• Communication Protocol: Modbus RTU RS485
• Operating Modes: Cooling / Heating
• Front Protection: IP65
• Mounting Type: Panel Mount
• Panel Cut-Out Size: 71 × 29 mm
• Front Dimensions: 79 × 38 mm
• Depth: 61 mm
• Working Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +70°C

Main Functions

Advanced Refrigeration Control

Provides accurate compressor operation and refrigeration temperature management with programmable differential and protection settings.

Modbus RS485 Communication

Integrated Modbus RTU communication allows centralized refrigeration monitoring and remote supervision system integration.

Automatic Defrost Management

Supports automatic and manual defrost functionality for improved evaporator efficiency and refrigeration reliability.

Cooling & Heating Operation

Supports both refrigeration and heating applications through programmable operating modes.

FAQs

What is the AKO-D14123-C used for?

The AKO-D14123-C is used for refrigeration temperature control and remote monitoring in commercial HVAC/R systems.

Does this controller support Modbus communication?

Yes, the controller includes integrated Modbus RTU RS485 communication.

What temperature range does the controller support?

The controller supports -50°C to +99°C with NTC probes and up to +150°C with PTC probes.

Does the controller support automatic defrost?

Yes, it includes automatic and manual defrost functionality.

Is the controller suitable for centralized refrigeration systems?

Yes, the Modbus communication feature makes it suitable for centralized refrigeration monitoring and management systems.
