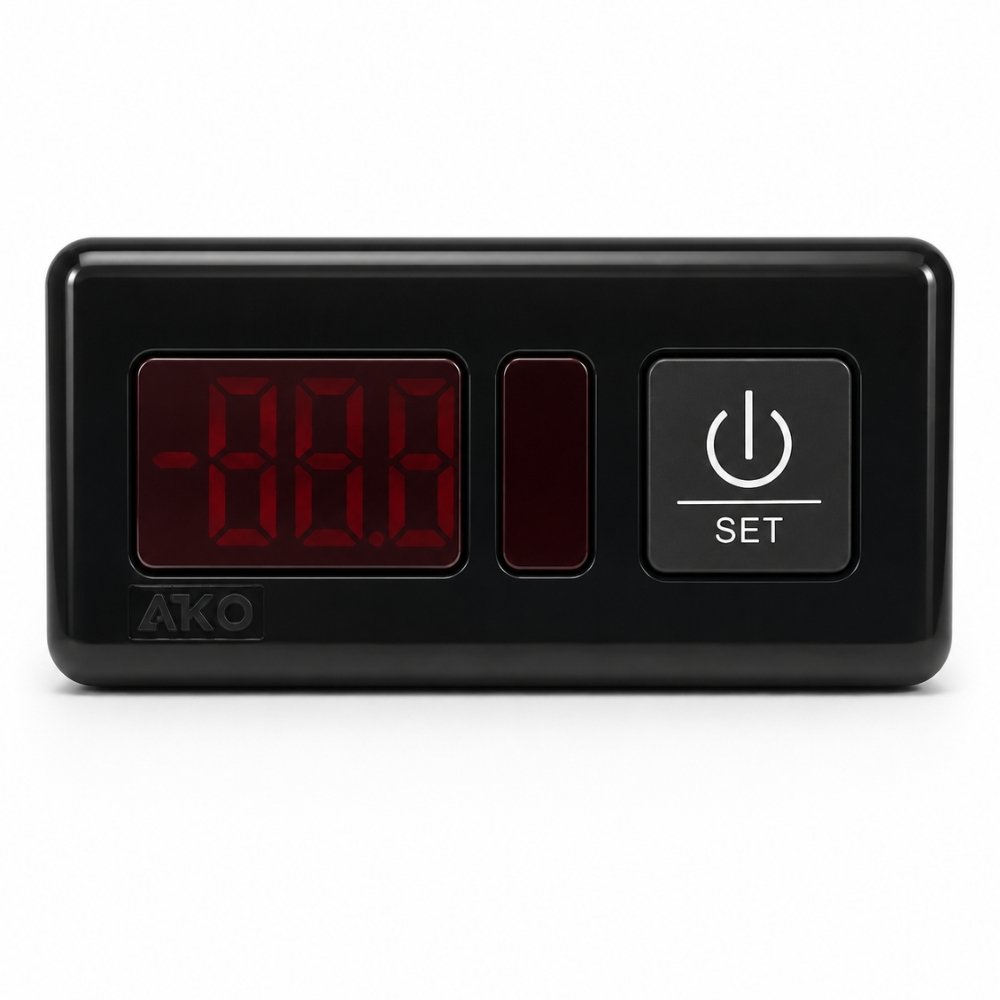

D14023 | Digital Thermometer | -50 to +99.9°C | 1.5 m Probe | AKO
Product Description
The AKO-D14023 Digital Thermometer is a standard-format panel-mounted device designed for accurate temperature monitoring in commercial and industrial refrigeration equipment. It provides a clear local temperature display for cold rooms, refrigerated cabinets, freezer equipment, display cases, and HVAC/R control panels.
The thermometer has one configurable input compatible with AKO NTC and PTC temperature probes. Its measuring range is -50°C to +99.9°C with an NTC probe and extends up to +150°C when used with a compatible PTC probe. The device also supports temperature display in Celsius or Fahrenheit and probe calibration through its programmable parameters.
The AKO-D14023 operates from a 230 V AC, 50/60 Hz power supply and is supplied with one 1.5 m NTC temperature probe. Unlike the communication-equipped D14023-C variant, the standard D14023 does not include Modbus RS-485 connectivity.
With IP65 front protection, a compact panel cut-out, and dedicated display-only functionality, the AKO-D14023 is suitable for temperature-monitoring applications in commercial refrigeration systems across the UAE. It does not include compressor, fan, defrost, or auxiliary control relays.
Key Features
- Standard-format panel-mounted digital thermometer
- Designed for refrigeration temperature monitoring
- One configurable NTC/PTC probe input
- Supplied with one 1.5 m NTC temperature probe
- NTC measuring range from -50°C to +99.9°C
- PTC measuring range from -50°C to +150°C
- 230 V AC, 50/60 Hz power supply
- 0.1°C display resolution
- Selectable Celsius or Fahrenheit display
- Programmable probe calibration
- Probe fault and error indication
- IP65 front-panel protection
- Compact 71 × 29 mm panel cut-out
- Display-only operation without control relays
- No integrated Modbus communication
Technical Specifications
Brand: AKO
Model: D14023
Product Type: Digital Thermometer
Product Format: Standard Panel Mount
Primary Function: Temperature Measurement and Display
Power Supply: 230 V AC ±10%
Frequency: 50/60 Hz
Power Consumption: 3.5 VA
Probe Inputs: 1
Probe Compatibility: NTC AKO-149xx / PTC AKO-1558xx
Included Probe: 1 × NTC Temperature Probe
Probe Cable Length: 1.5 m
NTC Temperature Range: -50°C to +99.9°C
PTC Temperature Range: -50°C to +150°C
Resolution: 0.1°C
Temperature Units: °C / °F
Probe Calibration: Supported
Control Relays: None
Digital Inputs: None
Communication: None
Front Protection: IP65
Mounting Type: Panel Mount with Anchors
Panel Cut-Out: 71 × 29 mm
Front Dimensions: 79 × 38 mm
Installation Depth: 43 mm
Working Temperature: -10°C to +50°C, below 90% RH
Storage Temperature: -30°C to +70°C, below 90% RH
Electrical Connection: Screw Terminals for Cables up to 2.5 mm²
These specifications are stated in official AKO product pages, operating instructions, and technical documentation covering the exact AKO-D14023 model.
FAQs
What is the AKO-D14023 used for?
The AKO-D14023 is used to measure and display temperature in cold rooms, freezer equipment, refrigerated cabinets, display cases, and commercial refrigeration panels.
Is the AKO-D14023 a thermometer or a controller?
It is a digital thermometer. It monitors and displays temperature but does not directly control compressors, fans, heaters, or defrost equipment.
What temperature range does it support?
It supports temperatures from -50°C to +99.9°C with an NTC probe and from -50°C to +150°C with a compatible PTC probe.
Is a temperature probe included?
Yes. The AKO-D14023 is supplied with one 1.5 m NTC temperature probe.
Does it support NTC and PTC probes?
Yes. Its single probe input can be configured for compatible AKO NTC or PTC temperature probes.
What power supply does the AKO-D14023 require?
It operates from a 230 V AC supply at 50/60 Hz and has a rated power consumption of 3.5 VA.
Does the D14023 have relay outputs?
No. The D14023 is a display-only thermometer and does not include a compressor or other control relay.
Does the AKO-D14023 support Modbus communication?
No. Modbus RTU RS-485 communication is available on the separate AKO-D14023-C variant, not on the standard D14023.
What panel cut-out is required?
The required panel opening is 71 × 29 mm, with front dimensions of 79 × 38 mm.
Is it suitable for commercial refrigeration in the UAE?
Yes. It is suitable for local temperature monitoring in commercial and industrial refrigeration equipment, provided it is installed within AKO’s specified electrical and environmental limits.
