Product details

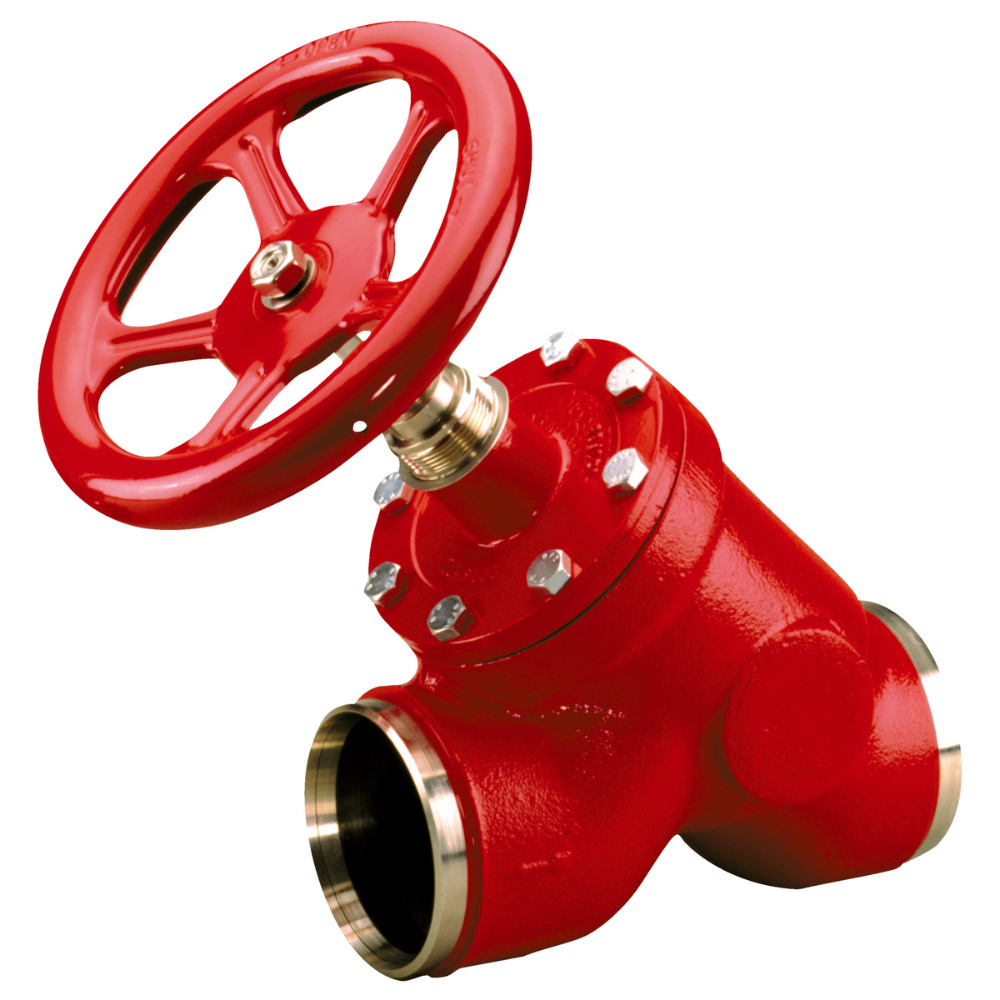

Danfoss SVA-S 100 Shut-off Valve | Angled, Handwheel | 148B6030
Product Description:
The Danfoss SVA-S 100 (148B6030) is a robust and reliable shut-off valve engineered specifically for industrial refrigeration applications in the UAE. As part of the SVA-S (Standard) series, it features an angled body design that ensures optimal flow characteristics and minimal pressure drop, which is critical for large-capacity plants in Dubai. Designed to handle a wide range of refrigerants including Ammonia ($NH_3$) and $CO_2$, this valve is built to operate under a maximum working pressure of 52.0 bar. The inclusion of a sturdy handwheel allows for precise manual isolation during maintenance or system emergencies. Its high-quality steel construction and specialized internal sealing technology ensure a long, leak-free service life even in the corrosive and high-ambient environments typical of UAE industrial sectors.
Key Features & Benefits:
- High Pressure Rating: Rated for up to 52.0 bar, making it suitable for modern high-pressure refrigeration and $CO_2$ systems in the UAE.
- Optimized Flow Design: The angled SVA-S 100 body provides superior flow conditions, reducing energy loss in large-scale UAE cooling operations.
- Secure Manual Isolation: The ergonomic handwheel ensures easy and reliable manual shut-off for UAE technicians during routine service.
- Broad Refrigerant Compatibility: Fully compatible with Ammonia, HFCs, and HCFCs, providing versatile application across Dubai’s industrial landscape.
- Extreme Climate Resilience: Specifically designed to maintain seal integrity and mechanical function in the intense heat and humidity of the UAE.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Product Model | SVA-S 100 |
| Code Number | 148B6030 |
| Valve Type | Angled Shut-off Valve |
| Actuation | Handwheel |
| Max. Working Pressure | 52.0 bar (754 psi) |
| Size (DN) | 100 mm (4 inch) |
| Temperature Range | -60°C to +150°C |
FAQs:
- Q: Is the SVA-S 100 (148B6030) suitable for Ammonia systems in the UAE?
- A: Yes, this valve is highly recommended for industrial Ammonia ($R717$) systems common in UAE food processing and cold storage facilities.
- Q: Does this valve require specialized maintenance in the Dubai heat?
- A: While designed for durability, it is recommended to inspect the stem seal annually in UAE conditions to ensure continued leak-proof performance.
- Q: Can the handwheel be replaced with a cap in the UAE field?
- A: Yes, Danfoss SVA valves are modular, allowing for conversion between a handwheel and a vented cap if required by UAE safety standards.
