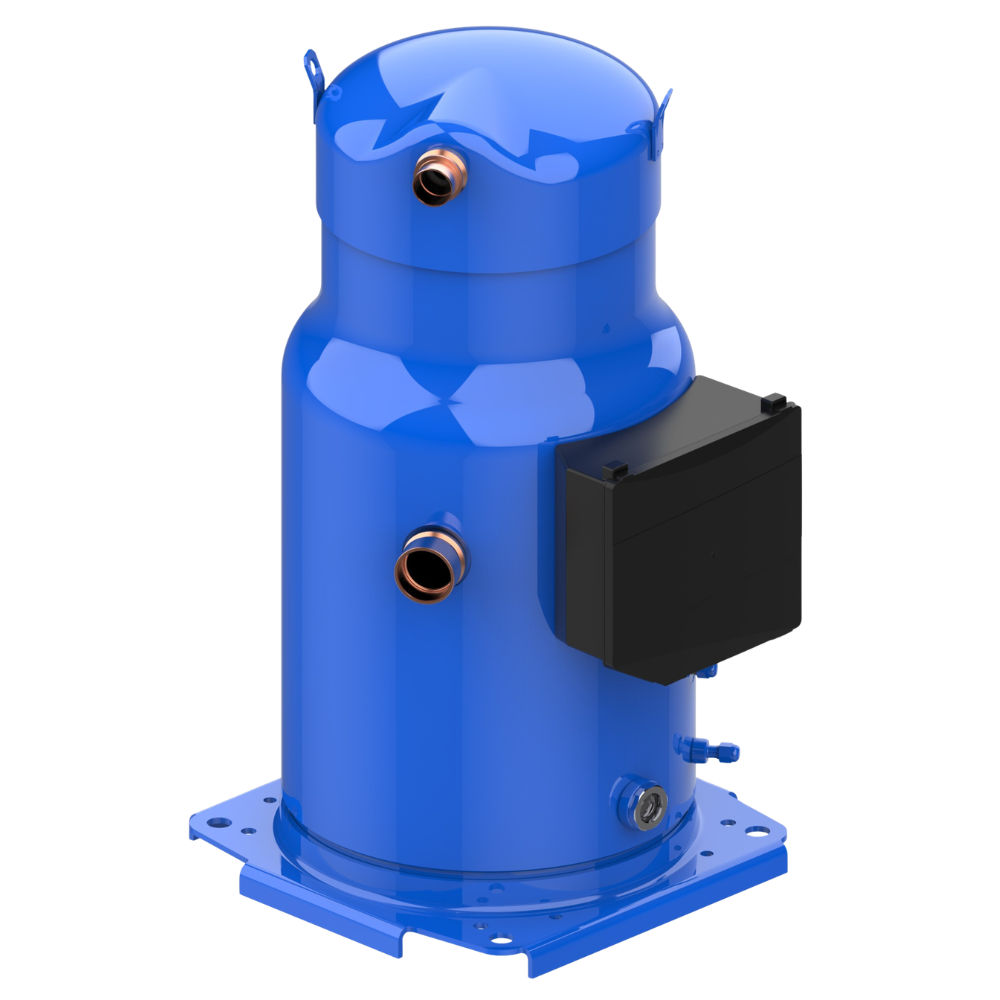

Danfoss SH240A4ABF Scroll Compressor | 20 HP
Product Description:
The Danfoss SH240A4ABF (Part No. 120H0300) is a high-capacity scroll solution designed for the most demanding commercial HVAC applications. With a robust 20 HP output, this compressor is optimized exclusively for R410A refrigerant, making it a critical component for large district cooling chillers, commercial rooftop systems, and industrial air handling units across the UAE. Its advanced scroll geometry provides exceptional seasonal efficiency and smooth, quiet operation despite its high power. Built to endure the extreme Middle Eastern summers, the SH240A4ABF features a 100% suction-gas cooled motor and high-grade internal components, ensuring long-term reliability and minimal maintenance under continuous heavy load.
Key Features & Benefits:
- Exceptional 20 HP Capacity: Engineered for large-scale cooling loads in skyscrapers, malls, and industrial complexes in the UAE.
- High Seasonal Efficiency: Advanced design reduces energy consumption, helping buildings meet local green energy regulations.
- Optimized for R410A: Purpose-built to handle the higher pressures of R410A systems for maximum system integrity.
- Low Noise & Vibration: Precision scroll technology ensures a quiet operation, even at full 20 HP capacity.
- Industrial Durability: Features internal motor protection against overheating and electrical fluctuations, common in high-load environments.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Model Number | SH240A4ABF |
| Code Number | 120H0300 |
| Compressor Type | Scroll (High Pressure) |
| Horsepower (HP) | 20 HP |
| Refrigerant(s) | R407C / R410A (Optimized for R410A) |
| Voltage / Phase | 380-400V / 3-Phase / 50Hz (460V / 60Hz) |
| Oil Type | POE (Polyolester Oil) |
| Cooling Capacity | ~58.2 kW (at ARI Rating Conditions) |
| Connection Type | Brazed (Solder) |
| Net Weight | ~105 kg |
FAQs:
- Q: Is this compressor suitable for large rooftop units in Dubai?
- A: Yes, it is a standard choice for high-tonnage rooftop units due to its high-ambient reliability.
- Q: Does it include an oil charge?
- A: Yes, it comes factory-precharged with POE oil, specifically required for R410A systems.
- Q: Can this be used in a tandem or trio configuration?
- A: Absolutely. It is frequently manifolded in large chiller systems to provide massive cooling power and better part-load efficiency.
