Product details

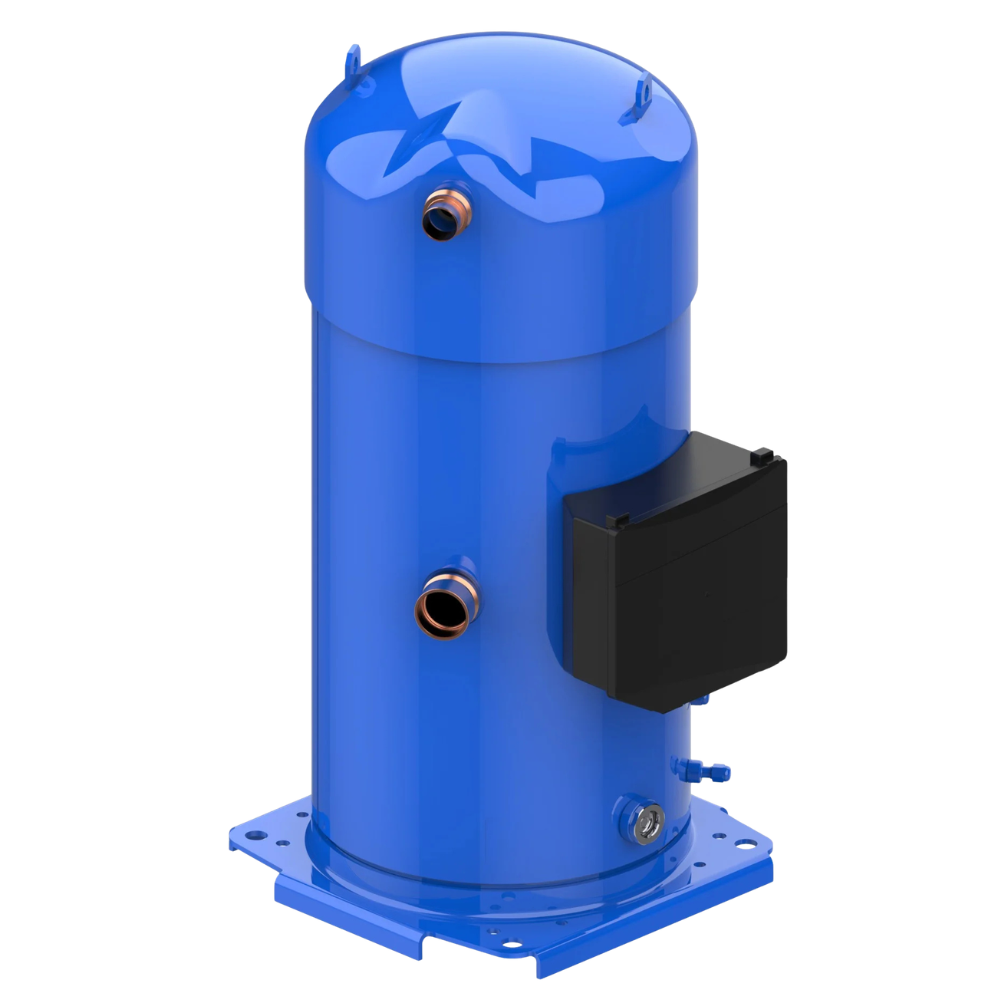

Danfoss Scroll Compressor SH380A4AAF | 120H0253
Product Description:
The Danfoss SH380A4AAF is a heavy-duty industrial compressor engineered for maximum reliability in high-ambient environments like Dubai and Abu Dhabi. As part of the premium SH series, the 120H0253 is specifically optimized for R410A refrigerant, delivering superior thermal efficiency and high seasonal performance. This model is a standard choice for large rooftop units, commercial chillers, and industrial cooling systems across the UAE. Its advanced scroll design minimizes noise and vibration, while its robust internal construction ensures it can handle the intense cooling demands of the Middle East summer without compromising on longevity.
Key Features & Benefits:
- High Cooling Capacity: Provides approximately 30 tons of nominal cooling, ideal for malls, large office buildings, and industrial plants in the UAE.
- R410A Optimized: Engineered for high-pressure operation, ensuring peak efficiency and compliance with modern UAE environmental standards.
- Superior Reliability: Built with high-grade components to withstand continuous operation in extreme outdoor temperatures.
- Low Noise Levels: Designed with advanced acoustic engineering to maintain quiet operation in high-density urban areas of Dubai.
- Energy Efficient: High energy-efficiency ratios help lower operational costs and meet UAE green building requirements.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Model | SH380A4AAF |
| Code Number | 120H0253 |
| Type | Scroll Compressor |
| Refrigerant | R410A |
| Voltage | 380V – 415V / 3 Phase / 50Hz |
| Nominal Capacity | Approx. 30 Tons |
| Oil Type | POE (Polyolester) |
| Connection Type | Brazed |
FAQs:
- Q: Can the SH380A4AAF (120H0253) be used in a tandem configuration in the UAE?
- A: Yes, SH series compressors are frequently used in manifolded configurations to achieve higher tonnages in large UAE chiller systems.
- Q: Is the POE oil pre-charged in this model?
- A: Yes, it comes pre-charged with high-quality POE oil, which is essential for proper lubrication with R410A refrigerant.
- Q: What is the recommended motor protection for this unit?
- A: This large-frame compressor typically uses an electronic motor protection module (like the 120Z series) to safeguard against thermal and electrical faults in the UAE.
