Product details

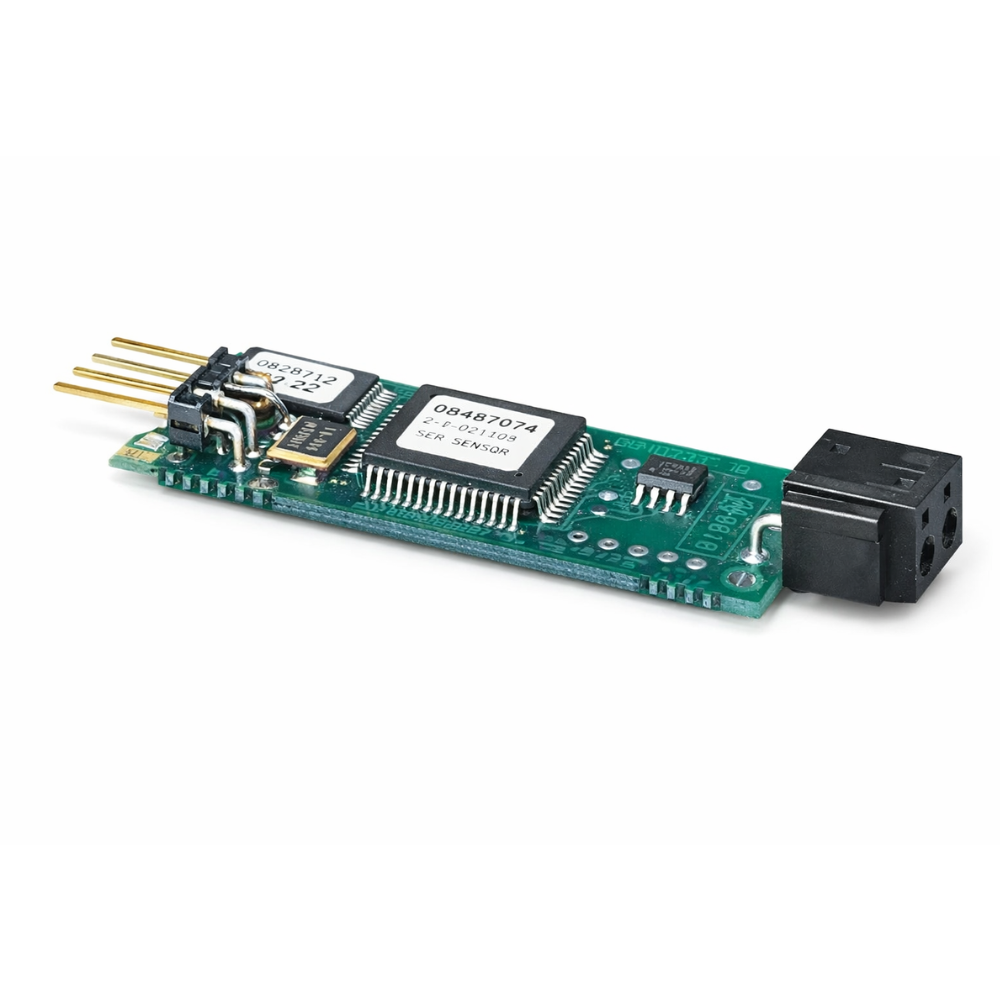

Danfoss EKA 178A MODBUS Communication Module | 084B8564
Product Description:
The EKA 178A acts as the digital bridge for Danfoss electronic controllers, allowing them to communicate with building management systems (BMS) or centralized monitoring stations. In the UAE’s high-tech infrastructure—ranging from Dubai’s smart buildings to Abu Dhabi’s industrial cold chains—the 084B8564 is essential for remote data acquisition. By installing this module into a compatible EKC controller, facility managers can monitor temperatures, change setpoints, and receive alarms remotely via the MODBUS protocol. Its plug-and-play design ensures easy integration into existing control panels, providing the transparency needed to optimize energy consumption and maintain food safety standards in Middle Eastern commercial cooling applications.
Key Features & Benefits:
- MODBUS RTU Protocol: Provides a standardized communication language compatible with a wide range of third-party BMS and SCADA systems in the UAE.
- Remote Monitoring: Enables real-time tracking of refrigeration parameters from a central office, reducing the need for manual on-site checks in Dubai.
- Seamless Integration: Designed specifically for the Danfoss EKC series, ensuring stable data transmission without complex wiring.
- Improved System Maintenance: Facilitates early fault detection through remote alarm reporting, critical for the intense cooling demands of the UAE.
- Energy Management: Allows for centralized control of cooling schedules, helping UAE businesses meet sustainability and energy-saving goals.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Model | EKA 178A |
| Code Number | 084B8564 |
| Communication Type | MODBUS RTU |
| Compatibility | EKC 202, EKC 315, AK-CC 210, etc. |
| Transmission Speed | 9.6 / 19.2 / 38.4 kBaud |
| Protection Class | IP00 (Designed for internal mounting) |
FAQs:
- Q: Is the EKA 178A (084B8564) compatible with the AK-SM series monitoring units in the UAE?
- A: Yes, it allows EKC controllers to talk to AK-SM (System Manager) units, creating a fully integrated Danfoss ADAP-KOOL system.
- Q: Does this module require an external power supply?
- A: No, it typically draws power directly from the host EKC controller it is plugged into, simplifying installation in UAE control boards.
- Q: How many controllers can be linked on a single MODBUS network in Dubai?
- A: Theoretically up to 247 addresses, though practical network stability in large UAE installations usually depends on the master controller and cable quality.
