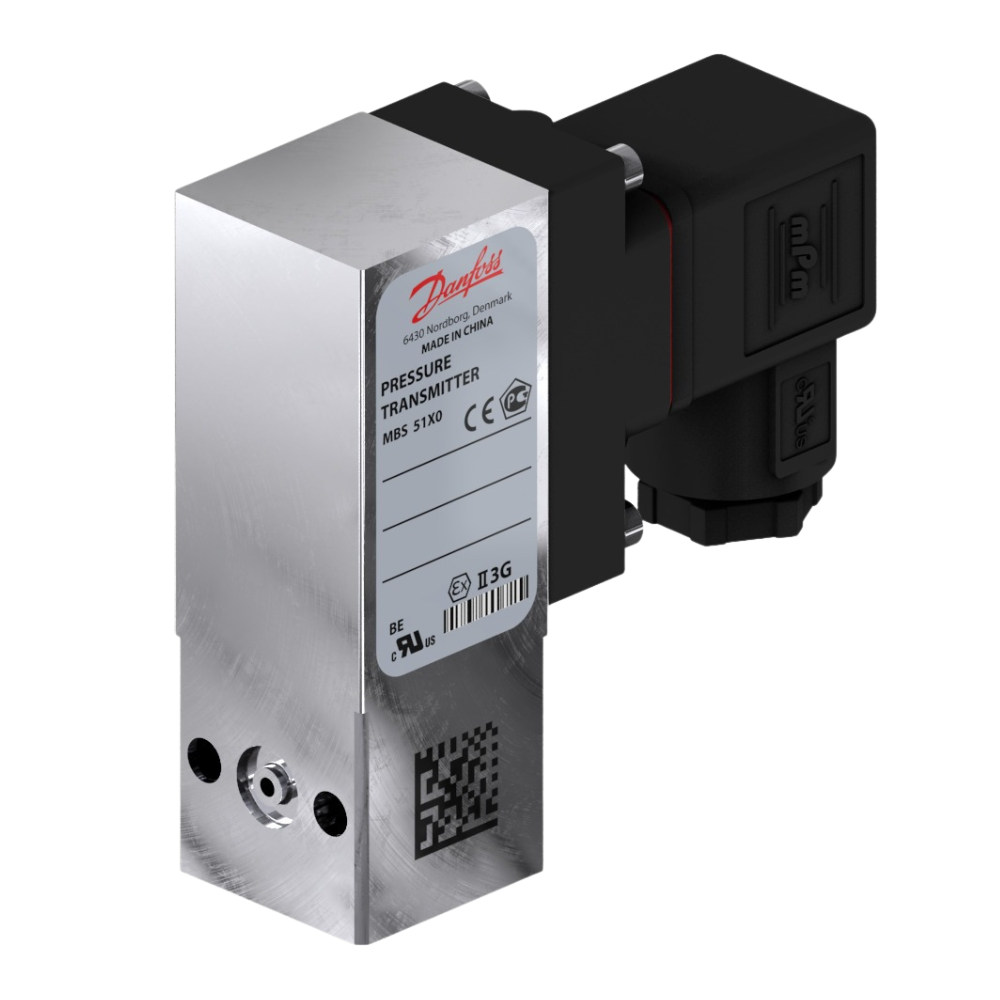

Danfoss MBS 5150 Block-Type Pressure Transmitter | 0 – 10 Bar | 060N1064
Product Description: The MBS 5150 (060N1064) is engineered to survive where standard transmitters fail. In the UAE’s maritime sector—from the busy docks of Jebel Ali to offshore platforms in Abu Dhabi—this transmitter is the gold standard for engine and hydraulic monitoring. This model covers a range of 0 to 10 bar (0 to 145 psi) and includes a built-in pulse snubber to protect the sensor against cavitation, liquid hammer, and pressure peaks. Its “block” design offers superior vibration stability and allows for direct mounting or integration into a manifold system, making it an ideal choice for ship engine rooms and heavy industrial plants across the Middle East.
Key Features & Benefits:
- Integrated Pulse Snubber: Specifically designed to handle the pressure spikes common in UAE hydraulic systems and marine engine fuel lines.
- Full Marine Approvals: Certified by DNV, LR, ABS, BV, and other major authorities, ensuring international compliance for UAE-based vessels.
- Exceptional Vibration Stability: The robust block construction allows it to maintain precise 4-20 mA signals even when mounted on high-vibration machinery.
- Corrosion Resistant IP65: Built to withstand the humid, saline air and high temperatures characteristic of coastal UAE industrial zones.
- Precision Accuracy: Provides a highly stable output with excellent EMI/RFI protection, ensuring reliable data for UAE automation systems.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Series | MBS 5150 (with Pulse Snubber) |
| Code Number | 060N1064 |
| Pressure Range | 0.00 – 10.00 bar (0 – 145 psi) |
| Output Signal | 4 – 20 mA |
| Pressure Connection | G 1/4 Female (Block design) |
| Accuracy | ± 0.5% FS (Typical) |
| Enclosure Rating | IP65 |
FAQs:
- Q: Why choose the MBS 5150 060N1064 over a standard MBS transmitter?
- A: The 5150 series includes a pulse snubber and marine approvals, making it much more durable against the mechanical shocks found in UAE ship engines.
- Q: Can this transmitter be used with seawater in Abu Dhabi?
- A: Yes, the materials are highly resistant, though it is primarily used for oil, fuel, and fresh-water cooling systems in maritime applications.
- Q: What is the advantage of the 4-20 mA signal for UAE plants?
- A: The 4-20 mA current loop is highly resistant to electrical noise and can transmit data over long distances without signal loss, which is perfect for large UAE industrial sites.
