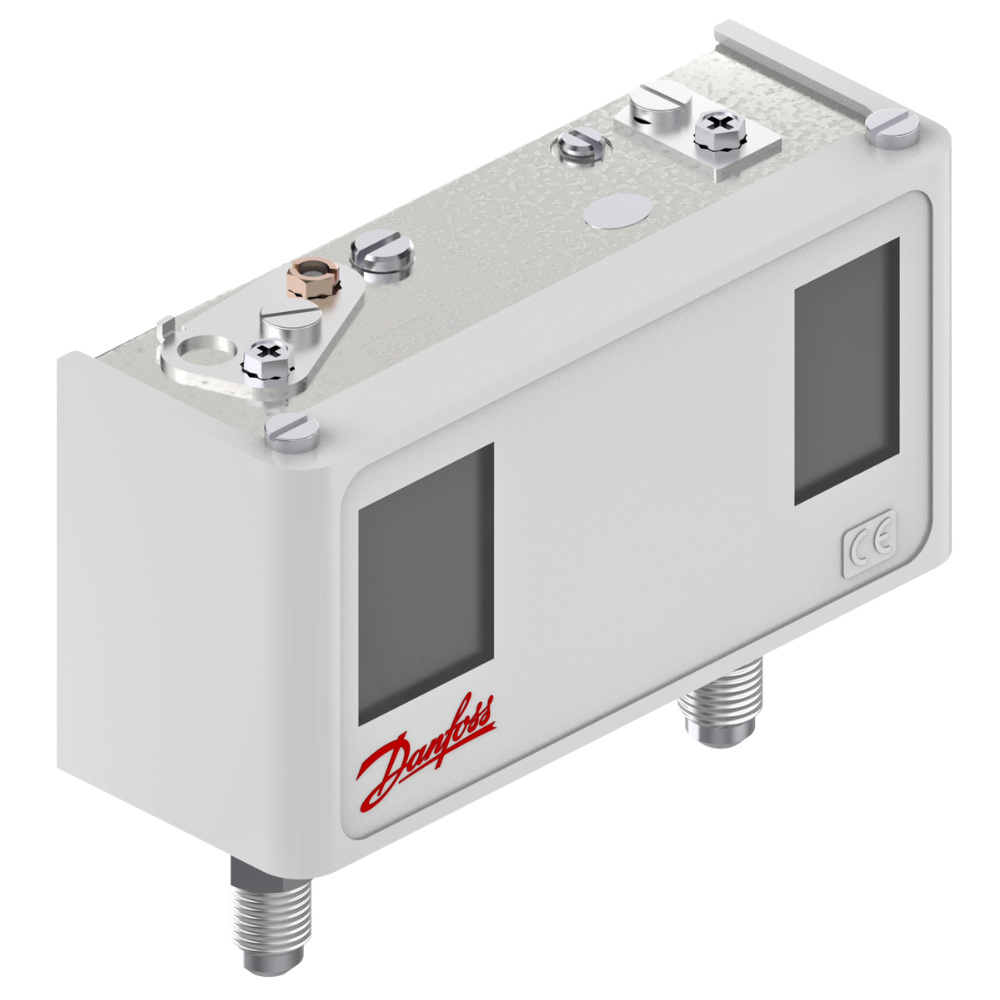

Danfoss KP15 Dual Pressure Switch | High & Low Pressure Control | 060-124191

Product Description: The KP15 (060-124191) combines two functions into a single, compact unit to protect compressors against suction pressure that is too low and discharge pressure that is too high. In the UAE’s demanding cooling sector—where systems in supermarkets and cold storage facilities run continuously—this switch is vital for preventing compressor failure. This model features an automatic reset for both the low-pressure and high-pressure sides, ensuring the system can resume operation once conditions return to safe levels. Its robust construction and vibration-resistant design make it ideal for the harsh, high-ambient conditions typical of the Middle East.

Key Features & Benefits:

• Dual-Function Protection: Monitors both suction and discharge pressures, reducing the need for multiple components and simplifying wiring in UAE control panels.
• Automatic Reset: Both sides (LP and HP) feature automatic reset, facilitating continuous operation in unmanned mechanical rooms.
• High Load SPDT Contact: Features a high-performance Single Pole Double Throw (SPDT) switch capable of handling significant electrical loads for direct motor control.
• Vibration Resistant: Engineered to maintain precise setpoints even when installed near high-frequency vibration sources like compressors.
• Broad Refrigerant Compatibility: Compatible with all common HCFC and non-flammable HFC refrigerants (e.g., R134a, R404A, R407C, R507).

Technical Specifications:

FAQs:

• Q: Can the KP15 060-124191 be used for R410A in Dubai?
• A: Yes, the 32-bar high-pressure limit makes it suitable for many R410A applications, though always verify your system’s peak discharge pressure against the 32-bar rating.
• Q: What is the advantage of the automatic reset in UAE facilities?
• A: It allows the system to restart automatically after a temporary pressure fluctuation (e.g., during a hot start), reducing maintenance call-outs for simple trips.
• Q: How do I adjust the differential for the low-pressure side?
• A: The unit features clear scales and adjustment screws on the top, allowing UAE technicians to set the “Cut-in” and “Cut-out” points independently for the LP side.
