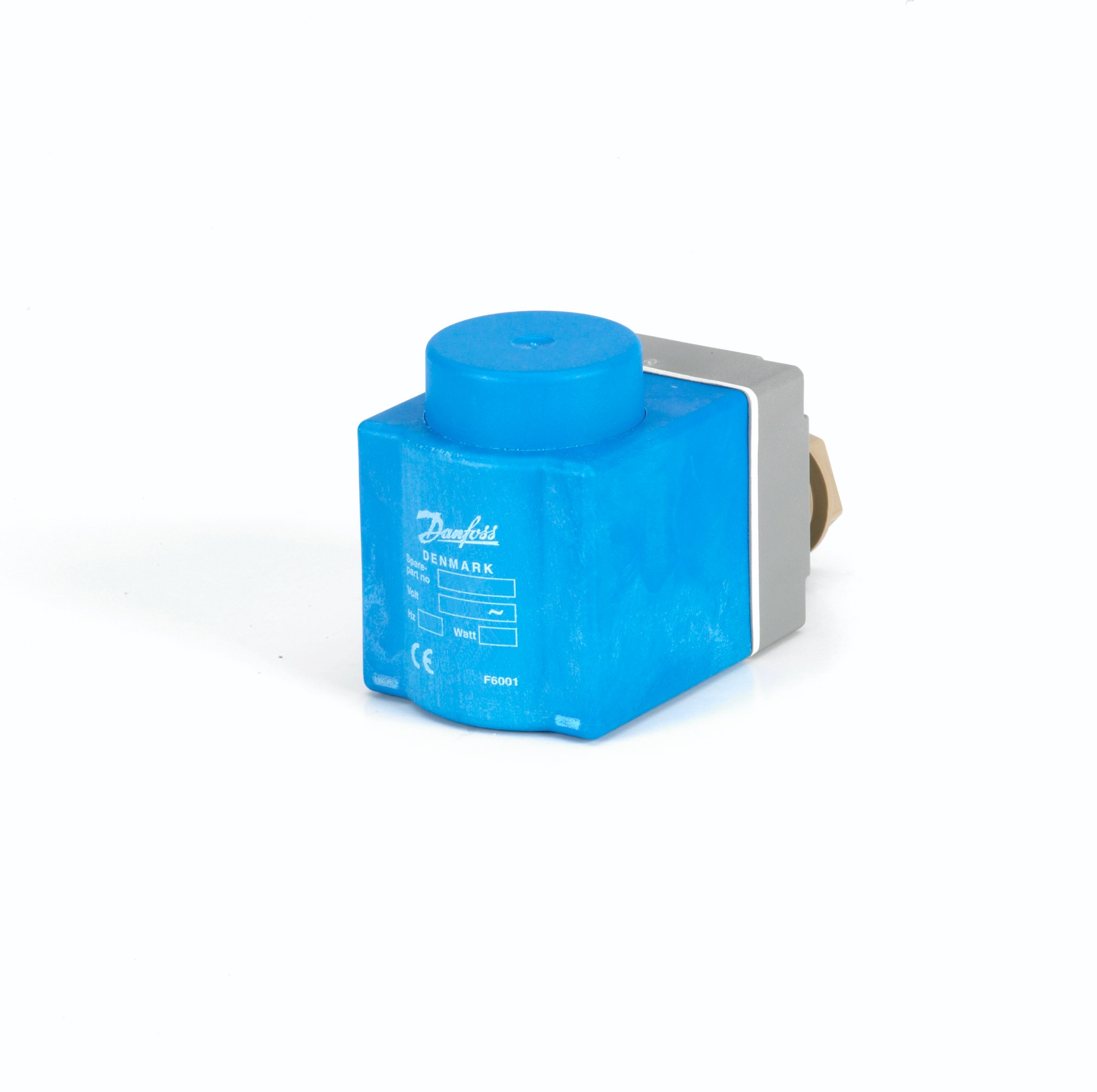

Danfoss BE230CS Solenoid Coil | 220-230V AC | 50/60Hz | Terminal Box | 018F6732

Product Description:

The BE230CS (018F6732) is the “Heavy Duty” choice for 230V systems in the Middle East. The “CS” designation indicates that the coil is optimized for both 50Hz and 60Hz AC supplies, making it highly versatile for various types of machinery imported into the UAE. In the intense heat and high humidity of regions like Dubai and Ras Al Khaimah, the integrated terminal box provides IP67 protection, ensuring that the electrical connections are completely sealed against dust and moisture. With Class H insulation, this coil is designed to maintain its integrity even when system temperatures rise during peak summer operations.

Key Features & Benefits:

• Dual Frequency Support: Works seamlessly on both 50Hz and 60Hz power, ideal for the diverse range of equipment found in the UAE.
• IP67 Weatherproofing: The terminal box design offers superior protection against the elements, essential for outdoor and wash-down environments.
• Class H Heat Resistance: Built to withstand internal temperatures up to 180°C, ensuring a long service life in high-ambient conditions.
• Stable Valve Actuation: Provides a consistent magnetic field to ensure solenoid valves open and close reliably under high pressure differentials.
• Clip-on Mounting: Features the standard Danfoss “Clip-on” system for tool-free installation on EVR, EV210B, and EV220B valve bodies.

Technical Specifications:

FAQs:

• Q: Why choose the CS version (018F6732) over the AS version?
  • A: The CS version supports both 50Hz and 60Hz, providing more flexibility for UAE contractors who may encounter different equipment specifications.
• Q: Is this coil suitable for rooftop chiller units in Abu Dhabi?
  • A: Yes, the IP67 terminal box and high-temperature rating make it one of the best choices for exposed outdoor installations in the UAE.
• Q: Can it be used with any Danfoss valve?
  • A: It is compatible with all Danfoss solenoid valves that use the “Clip-on” coil system, including EVR 2 through EVR 40.
