Product details

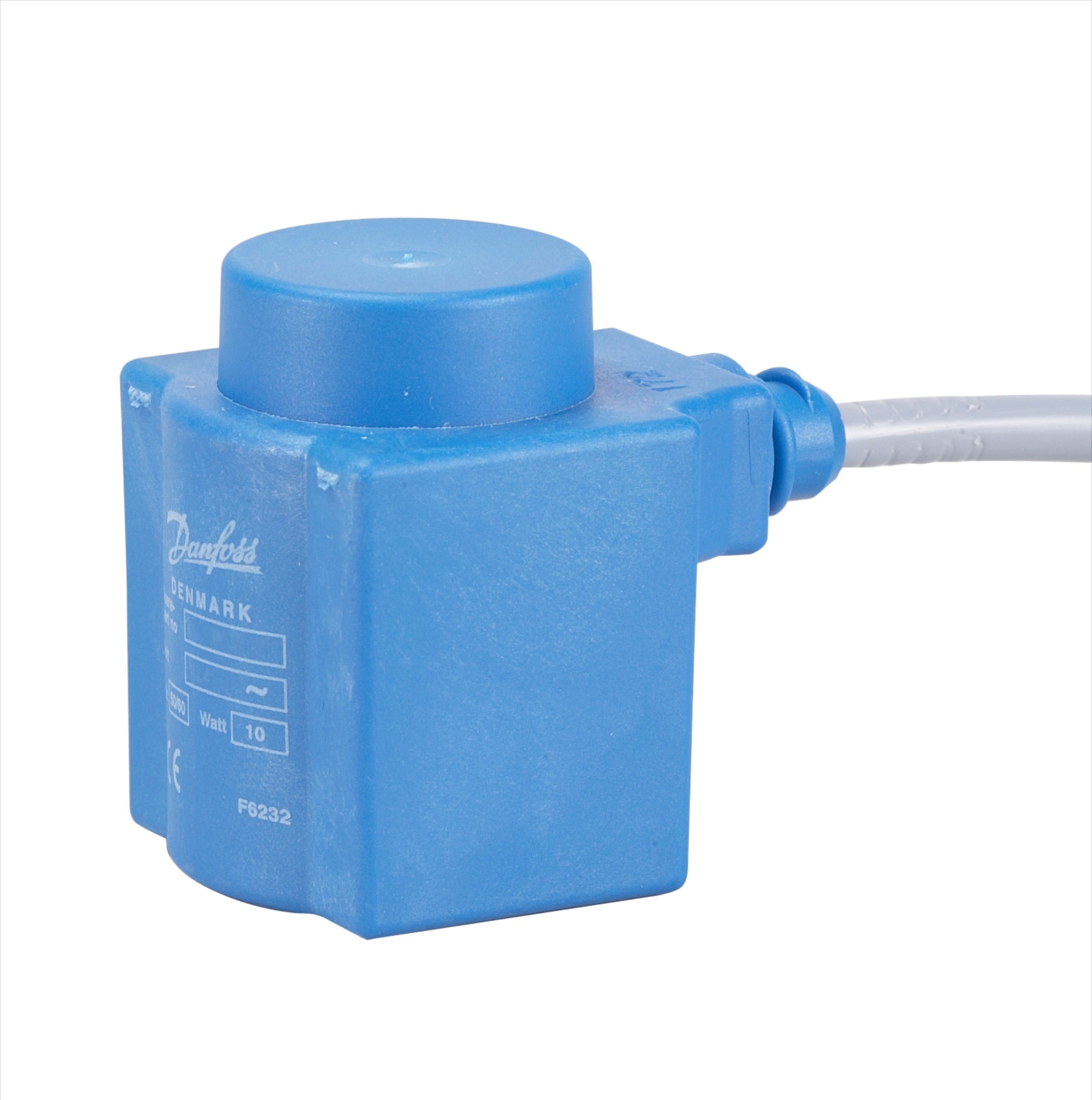

Danfoss BF230AS Solenoid Coil | 220-230V AC | 1.0m Factory Cable | 018F6251
Product Description: The BF230AS (018F6251) is engineered for “wet” and harsh environments common in the Middle East. Unlike coils with terminal boxes or spade connectors, the BF series features a factory-molded cable that ensures IP67 protection without any field-wiring risks at the coil body. In the UAE—where rooftop units are exposed to intense humidity and condensation, and industrial evaporators undergo frequent wash-downs—this sealed design prevents moisture from entering the electrical windings. The 1.0-meter 3-core cable provides a safe and easy connection to the system’s junction box. Built with Class H insulation, it remains stable even when ambient temperatures reach the UAE’s seasonal peaks.
Key Features & Benefits:
- Completely Sealed Design: The molded 1.0m cable provides a factory-sealed unit, offering superior IP67 protection against the humid air of Dubai and Abu Dhabi.
- High Temperature Resilience: Class H insulation (rated up to 180°C) ensures the coil can withstand the high-ambient conditions of the UAE summer.
- Safe & Easy Installation: The “Clip-on” system allows for tool-free mounting on valve actuators, while the pre-fitted cable reduces wiring time for technicians.
- Vibration Resistant: The molded cable design is less prone to loosening due to system vibration compared to screw-terminal designs.
- Broad Compatibility: Fits the standard Danfoss “Clip-on” solenoid valve range (EVR 2 to EVR 40).
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Type | BF230AS |
| Code Number | 018F6251 |
| Supply Voltage | 220 – 230V AC (50 Hz) |
| Power Consumption | 12W (22 VA) |
| Cable Length | 1.00 Meter (3-core) |
| Enclosure Rating | IP67 |
| Insulation Class | Class H (180°C) |
| Ambient Temperature | -40°C to 80°C |
FAQs:
- Q: Can I submerge this coil in water?
- A: While IP67 protects against temporary immersion and heavy splashing (wash-downs), it is not designed for continuous underwater use.
- Q: Why choose the BF (Cable) version over the BE (Terminal Box) version?
- A: The BF version is easier to install in tight spaces and provides a more reliable seal in very humid UAE environments because there is no terminal box for a technician to accidentally leave open.
- Q: Is it compatible with R410A systems?
- A: Yes, it is compatible with all Danfoss EVR valves used in R410A, R32, and R134a systems.
