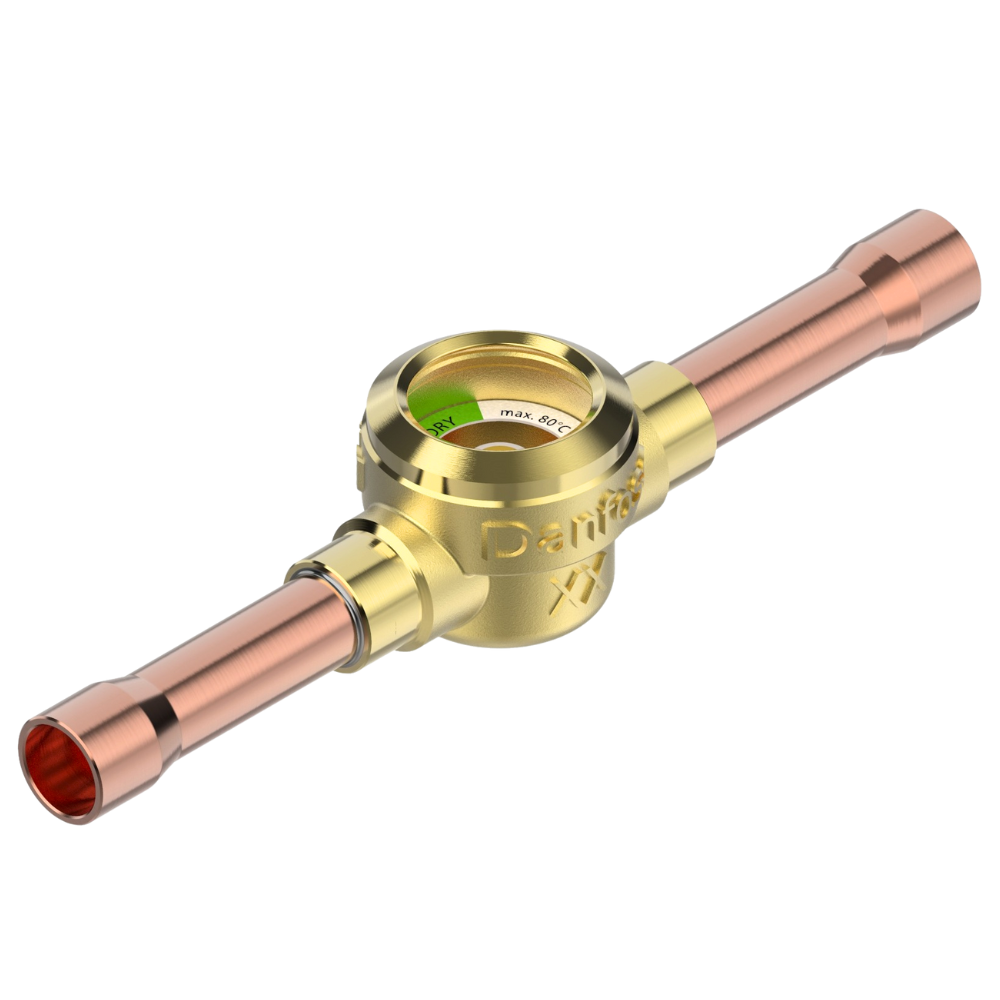

Danfoss SGP 10s I Sight Glass & Moisture Indicator | 3/8 in Solder ODF | 014L0035
Product Description:
The SGP 10s I (014L0035) is the evolved version of the classic sight glass, optimized for safety and clarity. In the UAE—where the transition to high-pressure refrigerants like R410A and R32 is standard—the SGP series provides the necessary 52 bar pressure rating. The “I” designation indicates a sensitive moisture indicator that changes color to signal the presence of water in the system. This early warning is crucial in the Middle Eastern heat to prevent oil breakdown and acid formation. The 3/8 inch solder (ODF) connections ensure a high-integrity, leak-proof joint that can withstand the intense vibration of industrial rooftop units in Dubai and Abu Dhabi.
Key Features & Benefits:
- High Pressure Safety: Rated for a maximum working pressure of 52 bar, making it safe for R410A, R32, and high-pressure CO2 subcritical systems.
- Precise Moisture Monitoring: The indicator changes from green to yellow, allowing UAE technicians to identify the need for a filter drier change before compressor damage occurs.
- Superior Visibility: The large, high-clearance glass provides an unobstructed view to check for flash gas or bubbles, ensuring the system is properly charged.
- Corrosion-Resistant Design: Built to endure the humid and saline environments of coastal UAE cities.
- Permanent Solder Connection: Provides a robust, brazed seal that is more reliable than mechanical flare fittings under the thermal expansion cycles of the UAE summer.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Type | SGP 10s I |
| Code Number | 014L0035 |
| Connection Size | 3/8 in (Solder, ODF) |
| Max. Working Pressure | 52 bar (754 psig) |
| Indicator Colors | Green (Dry) / Yellow (Wet) |
| Refrigerants | R410A, R32, R134a, R404A, R507, R22 |
| Media Temperature | -50°C to 80°C |
FAQs:
- Q: What is the difference between SGN and SGP in the UAE?
- A: The SGP (like 014L0035) has a higher pressure rating (52 bar) compared to the SGN (46 bar), making SGP the preferred choice for modern R410A and R32 systems in the Emirates.
- Q: Can this sight glass be used with ammonia?
- A: No, the SGP series is for fluorinated refrigerants (HFC, HCFC). For ammonia, you would need an SVL or specialized sight glass.
- Q: Is the indicator affected by oil?
- A: No, the indicator is designed to react only to moisture levels in the refrigerant/oil mixture.
