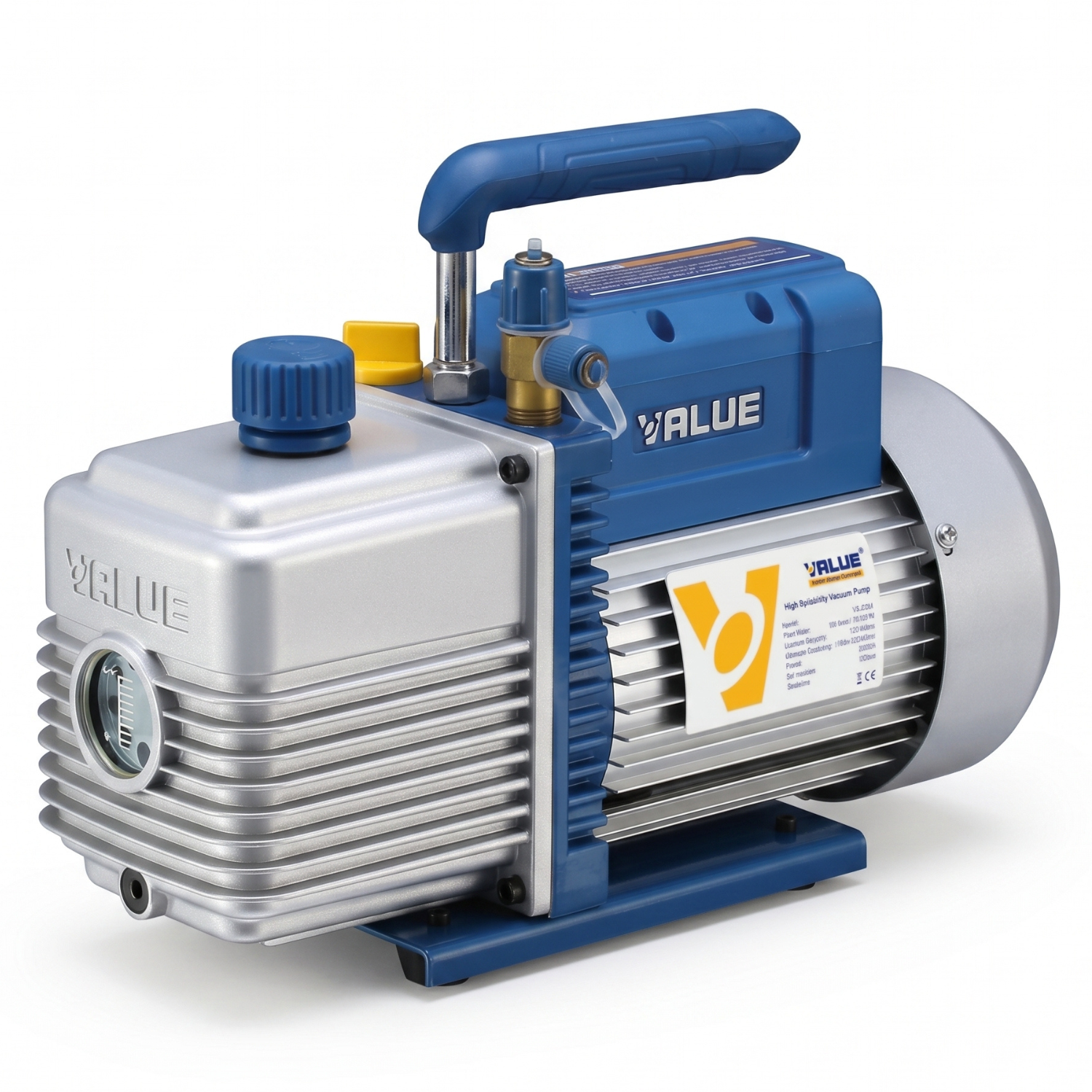

VE2100N Vacuum Pump | 10 CFM | Dual Stage | VALUE
The VALUE VE2100N Vacuum Pump is a high-performance dual-stage vacuum pump designed for HVAC and refrigeration system evacuation. It is suitable for use with refrigerants such as R407C, R404A, R507A, and R134a, making it ideal for professional service and installation work.
Built with an integrated body structure and forced oil cycling system, this pump ensures high reliability, improved vacuum performance, and long service life. Its advanced design delivers deep vacuum levels with stable operation, making it suitable for demanding applications.
The unit features a large oil viewing window for easy monitoring and maintenance, along with high precision engineering to achieve consistent and efficient evacuation performance.
Key Benefits
Dual-stage design for deep and efficient vacuum
High flow rate of 10 CFM for fast evacuation
Compatible with multiple refrigerants
Forced oil cycling system for improved reliability
Integrated body structure for better precision
Large oil sight glass for easy monitoring
High efficiency and stable operation
Specifications
Brand: VALUE
Model: VE2100N
Product Type: Vacuum Pump
Pump Type: Dual Stage
Performance
Flow Rate: 10.0 CFM (50Hz: 283 L/min, 60Hz: 340 L/min)
Ultimate Vacuum:
Partial Pressure: 2 × 10⁻¹ Pa
Total Pressure: 15 micron
Motor & Power
Power: 1 HP
Connections
Inlet Port: 1/4″ & 3/8″ SAE
Oil & Construction
Oil Capacity: 590 ml
Design: Integrated body structure
Oil System: Forced oil cycling
Physical
Dimensions: 395 × 145 × 257 mm
Weight: 16.7 kg
(Data extracted from datasheet image – model table )
Applications
HVAC system evacuation
Refrigeration system installation and servicing
Air conditioning maintenance
Vacuum dehydration of systems
Professional HVAC service work
FAQs
What type of vacuum pump is this?
It is a dual-stage vacuum pump designed for deep vacuum applications.
What is the flow rate of this pump?
It delivers 10 CFM flow rate for fast system evacuation.
Which refrigerants is it compatible with?
It is suitable for R407C, R404A, R507A, and R134a.
What is the ultimate vacuum level?
It achieves up to 15 micron ultimate vacuum.
Does it have oil monitoring?
Yes, it features a large oil sight glass for easy monitoring.
