Product details
PRODUCT DESCRIPTION

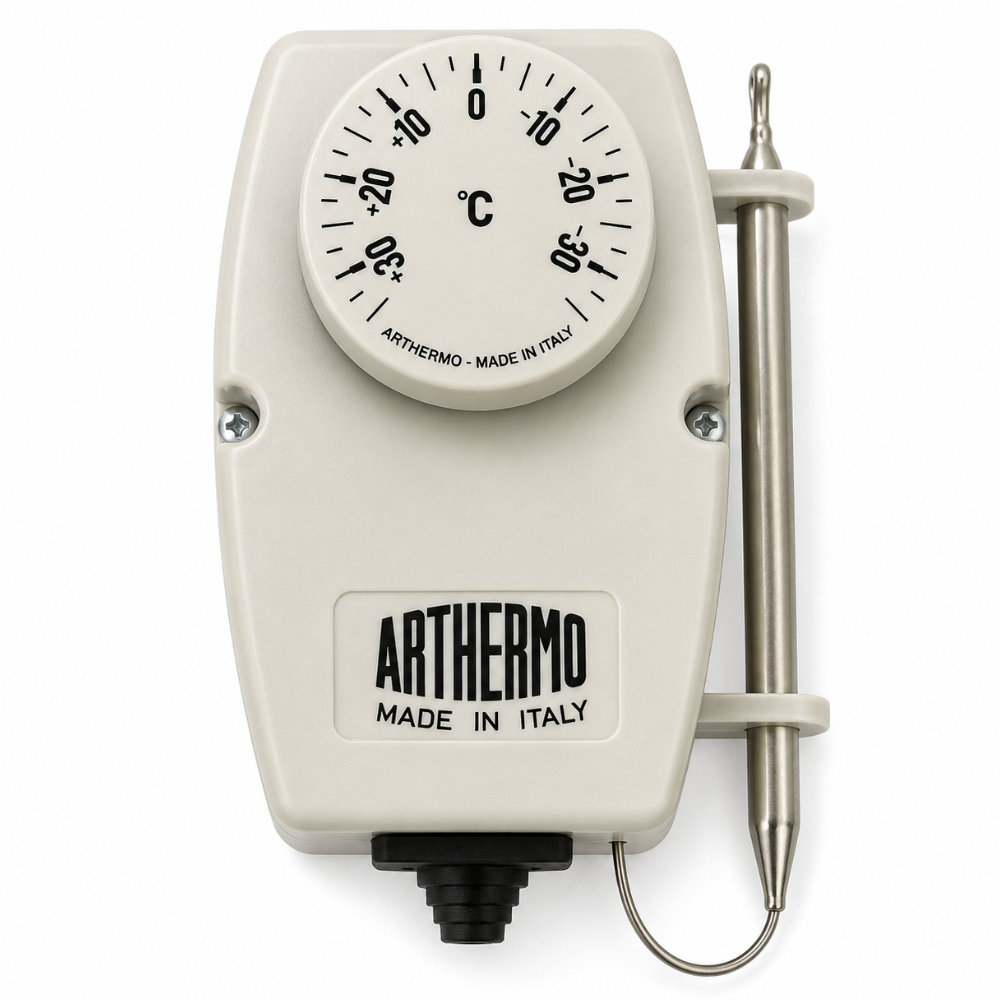

The TSC-094C Encased Adjustable Thermostat by Arthermo is a precision temperature control device designed for refrigeration systems, cooling equipment, cold rooms, and industrial cooling applications. Featuring liquid filled sensing bulb and bellows operating system with SPDT contacts, the thermostat delivers accurate and reliable automatic temperature adjustment in commercial and industrial refrigeration environments.
Designed with an encased body and sensing bulb assembly, the TSC-094C thermostat ensures dependable sensing performance and stable switching operation. The adjustable control dial allows precise temperature regulation from -35°C to +35°C, making it ideal for refrigeration and cooling field applications.
Manufactured for long operational life and industrial durability, the TSC-094C thermostat is suitable for automatic cooling appliance control and refrigeration system temperature management applications.
KEY FEATURES
- Encased adjustable thermostat
- Temperature range from -35°C to +35°C
- Liquid filled sensing bulb
- Bellows operating system
- SPDT contact configuration
- Compact industrial design
- Adjustable temperature control dial
- Suitable for refrigeration applications
- Reliable switching performance
- Durable construction for cooling systems
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Series | TSC-094C |
| Brand | Arthermo |
| Type | Encased Adjustable Thermostat |
| Temperature Range | -35°C to +35°C |
| Switching Capacity | C-1 15(2.5)A 400 VAC |
| C-2 2.5(0.4)A 400 VAC | |
| Product Life | 100,000 Switching Cycles |
| Minimum Current | 200 mA without Gold Contact |
| Insulation Resistance | >100 Mohm |
| Max Temperature Around Body | T110°C |
| Max Temperature Around Bulb | +15% Switching Value |
| Dielectric Strength | AC 2000V 1 min |
| Connection | Faston 6.3 x 0.8 |
| European Approvals | ENEC03 |
| Degree of Protection | IP40 |
| Contact Type | SPDT |
APPLICATIONS
- Refrigeration systems
- Cooling equipment
- Cold rooms
- Commercial refrigeration systems
- Industrial cooling applications
- Temperature control systems
- Refrigerated appliances
- HVAC cooling systems
FAQS SECTION
What is the TSC-094C thermostat used for?
The TSC-094C thermostat is designed for refrigeration systems, cooling equipment, and automatic temperature control applications.
What is the operating temperature range?
The thermostat operates within a temperature range of -35°C to +35°C.
What type of contact system does the thermostat use?
The TSC-094C uses SPDT contact configuration for reliable switching performance.
Is the thermostat suitable for refrigeration applications?
Yes, it is specifically designed for refrigeration and industrial cooling applications.
What type of electrical connection does the thermostat use?
The thermostat uses Faston 6.3 x 0.8 terminals for electrical connection.
