Product details

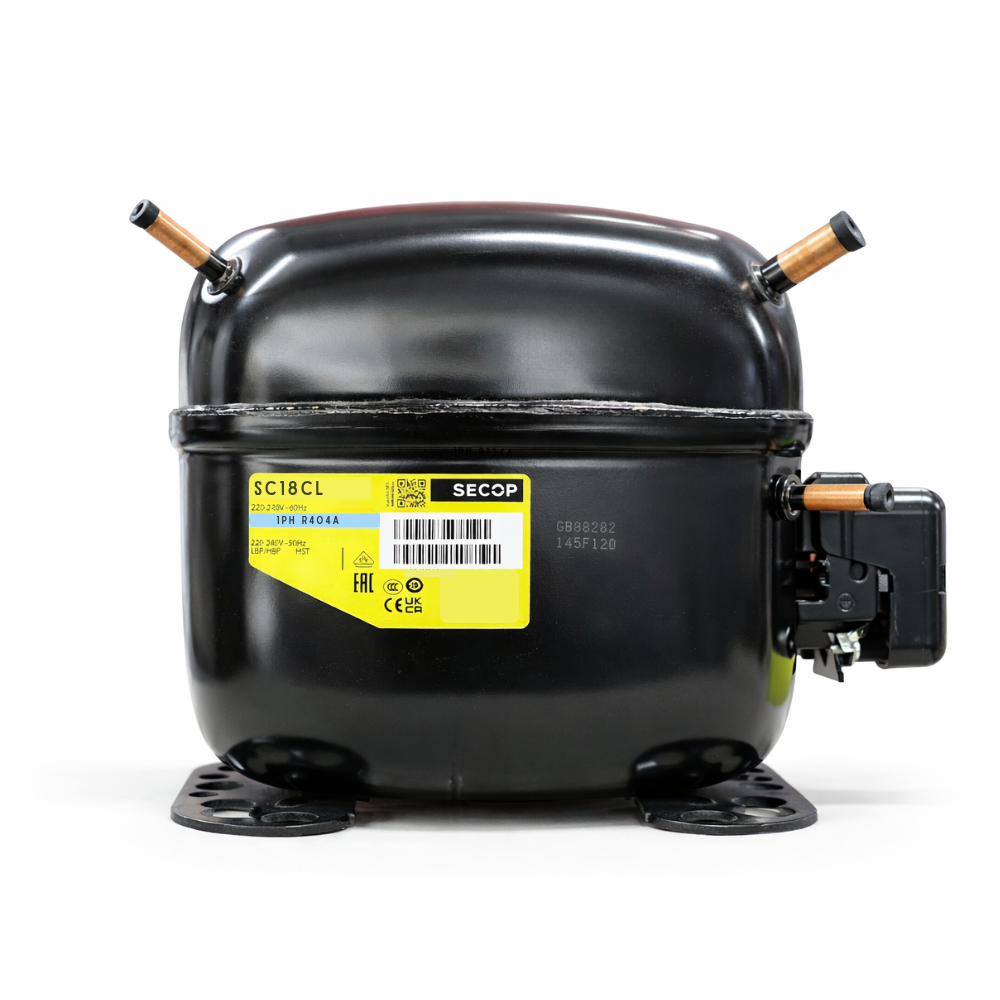

SC18CL | Hermetic Reciprocating Compressor | 3/4 HP | LT | R404A/R452A/R507 | 1Ph | 50Hz | Secop
The Secop SC18CL is a 3/4 HP hermetic reciprocating compressor designed for low-temperature and medium-temperature commercial refrigeration applications.
It is compatible with R404A, R452A, and R507 refrigerants and is rated for LBP and MBP operating conditions. The compressor features a displacement of 17.69 cm³ and a CSCR motor configuration, providing high starting torque and dependable operation.
The SC18CL operates on a 220–240 V, single-phase, 50 Hz power supply. Its robust construction and internal motor protection make it suitable for demanding commercial refrigeration equipment.
Key Benefits
- 3/4 HP compressor capacity
- Suitable for low-temperature and medium-temperature applications
- Rated for LBP and MBP operating conditions
- Compatible with R404A, R452A, and R507 refrigerants
- CSCR motor configuration with high starting torque
- Internal motor protection
- Suitable for commercial refrigeration equipment
Technical Specifications
Brand: Secop
Model: SC18CL
Sales Code: 104L2123
Compressor Type: Hermetic Reciprocating Compressor
Horsepower: 3/4 HP
Temperature Application: LT/MT
Application Rating: LBP + MBP
Refrigerants: R404A, R452A, R507
Displacement: 17.69 cm³
Motor Configuration: CSCR
Starting Torque: High Starting Torque
Voltage: 220–240 V
Phase: Single Phase
Frequency: 50 Hz
Oil Type: Polyolester
Oil Viscosity: 32 cSt
Oil Quantity: 601 cm³
Maximum Refrigerant Charge: 1,300 g
Motor Protection: Internal
Height: 219 mm
Weight: 13.8 kg
Applications
- Commercial freezers
- Frozen-food storage equipment
- Low-temperature display cabinets
- Medium-temperature display cabinets
- Commercial refrigeration systems
- Low back pressure refrigeration equipment
- Medium back pressure refrigeration equipment
Frequently Asked Questions
What is the horsepower of the Secop SC18CL?
The Secop SC18CL has a horsepower rating of 3/4 HP.
Is the SC18CL an LT, MT, or HT compressor?
The SC18CL is suitable for both low-temperature and medium-temperature applications. It is rated for LBP and MBP conditions and should be classified as an LT/MT compressor.
Which refrigerants are compatible with the SC18CL?
The compressor is compatible with R404A, R452A, and R507 refrigerants.
What power supply does the SC18CL require?
It operates on a 220–240 V, single-phase, 50 Hz power supply.
What motor configuration does it use?
It uses a CSCR motor configuration with high starting torque.
What is the displacement of the SC18CL?
The compressor has a displacement of 17.69 cm³.
