Product details
PRODUCT DESCRIPTION

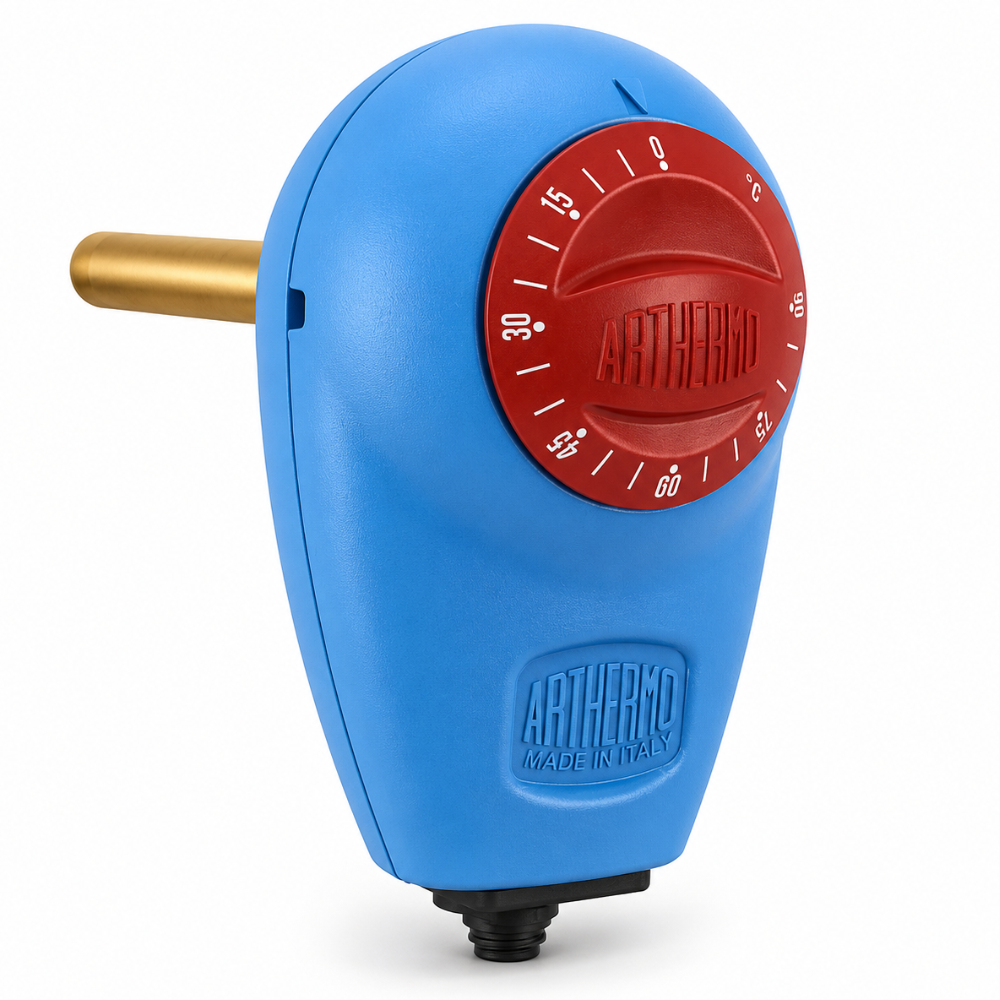

The ARTH100 Immersion Adjustable Thermostat by Arthermo is a precision temperature control device designed for heating systems, burners, pumps, boilers, and industrial heating applications. Featuring liquid filled operating technology with SPDT contacts and waterproof protection pocket, the thermostat provides reliable and accurate automatic temperature adjustment in commercial and industrial environments.
Designed with a 1/2″ x 100 mm immersion pocket, the ARTH100 thermostat ensures secure installation and dependable sensing performance in heating and circulation systems. The adjustable control knob allows precise temperature regulation from 0°C to +90°C, making it suitable for HVAC and industrial heating control applications.
Manufactured for long operational life and stable switching performance, the ARTH100 thermostat is ideal for automatic heating system control and temperature management applications.
KEY FEATURES
- Immersion adjustable thermostat
- Temperature range from 0°C to +90°C
- Liquid filled operating system
- SPDT contact configuration
- Waterproof protection pocket
- 1/2″ x 100 mm immersion pocket
- Adjustable temperature control knob
- Suitable for heating systems and pumps
- Reliable switching performance
- Durable industrial construction
TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Series | ARTH100 |
| Brand | Arthermo |
| Type | Immersion Adjustable Thermostat |
| Adjustable Range | 0°C to +90°C |
| Switching Capacity | C-1 15(2.5)A 400 VAC |
| C-2 2.5(0.4)A 400 VAC | |
| Product Life | 100,000 Switching Cycles |
| Insulation Resistance | >100 Mohm |
| Max Temperature Around Body | T110°C |
| Max Temperature Around Bulb | +15% Switching Value |
| Dielectric Strength | AC 2000V 1 min |
| Connection | Faston 6.3 x 0.8 |
| Approvals | ENEC 03 |
| Protection Degree | IP40 |
| Pocket Size | 1/2″ x 100 mm |
| Contact Type | SPDT |
APPLICATIONS
- Heating systems
- Burners
- Circulation pumps
- Boilers
- HVAC heating systems
- Industrial heating applications
- Temperature control systems
- Automatic heating control applications
FAQS SECTION
What is the ARTH100 thermostat used for?
The ARTH100 thermostat is designed for heating systems, pumps, boilers, and automatic temperature control applications.
What is the operating temperature range?
The thermostat operates within an adjustable range of 0°C to +90°C.
What type of contact system does the thermostat use?
The ARTH100 uses SPDT contact configuration for reliable switching performance.
Is the thermostat suitable for heating systems?
Yes, it is specifically designed for heating systems, burners, pumps, and HVAC applications.
What type of installation does the thermostat use?
The thermostat uses a 1/2″ x 100 mm immersion pocket for secure installation.
