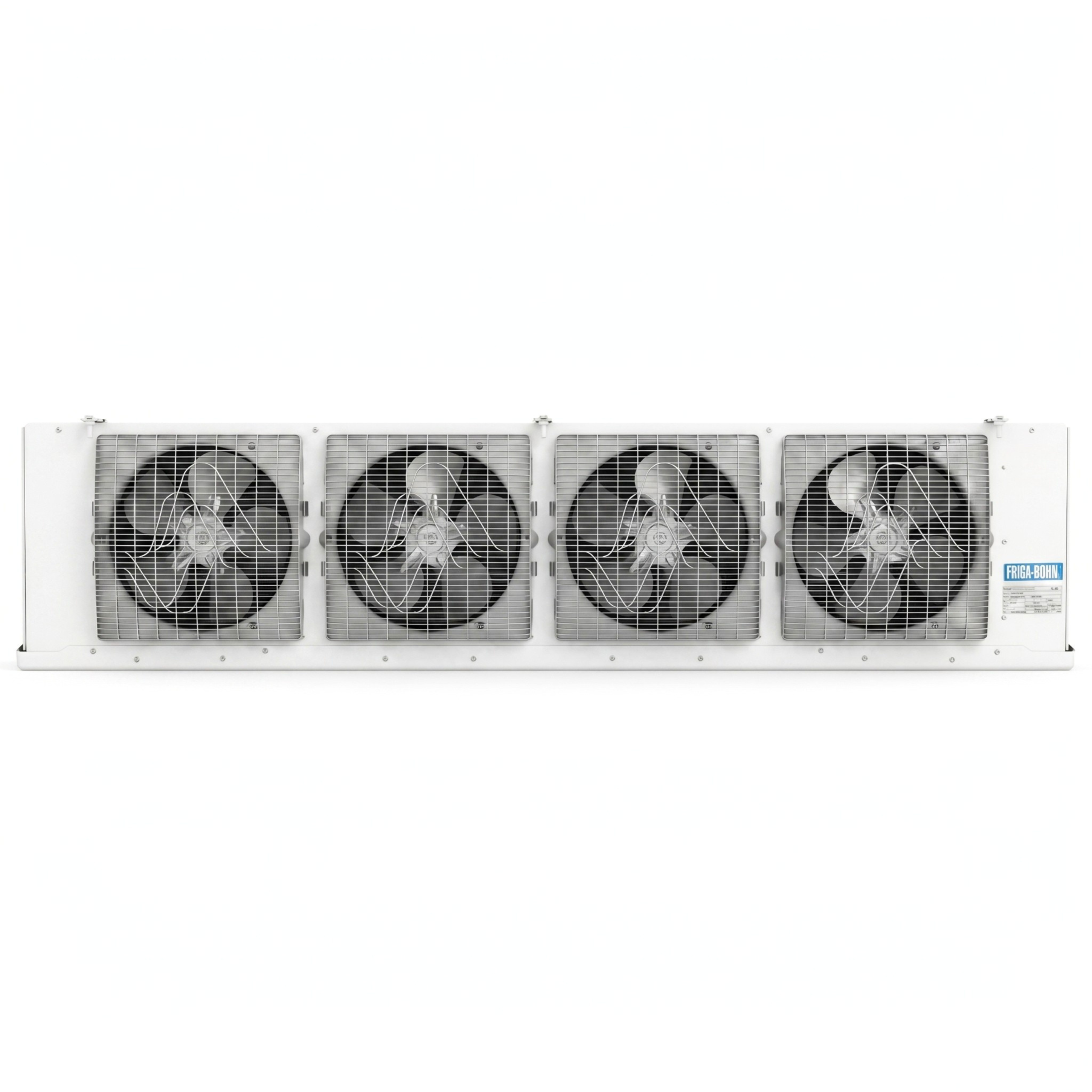

The Friga-Bohn 3C-E 3454 E Cubic Unit Cooler is a heavy-duty evaporator featuring 4 × 300 mm axial fans (1350 rpm) delivering 4840 m³/h airflow with 24 m air throw. Built with copper tubes and aluminium fins (4 mm spacing) and offering 41 m² heat exchange surface, it operates on 230V / 1Ph / 50–60Hz and provides 7.75 kW cooling capacity, making it ideal for large low-temperature refrigeration applications.

Brands:
Brand:

Product details

Product Description

The Friga-Bohn 3C-E 3454 E Cubic Unit Cooler is a heavy-duty, high-capacity evaporator designed for large commercial cold rooms and low-temperature refrigeration applications. It is equipped with 4 × 300 mm axial fans operating at 1350 rpm, delivering approximately 4840 m³/h airflow with an air throw of up to 24 meters, ensuring powerful and uniform air distribution for large-scale cooling environments.

The unit features a high-efficiency heat exchanger constructed with internally grooved copper tubes and aluminium fins (4 mm spacing), providing excellent heat transfer performance. With a very large heat exchange surface of 41 m², it delivers strong and reliable cooling capacity for demanding applications.

Designed with extended dimensions (2367 × 480 × 428 mm) and a net weight of 50 kg, the unit is ideal for large industrial cold room installations.

Operating on 230V / 1Ph / 50–60Hz, the unit delivers a cooling capacity of approximately 7.75 kW under standard conditions (R404A, -18°C room temperature) .

It includes a high-capacity electric defrost system (8640 W) operating on 400V / 3Ph / 50Hz, ensuring efficient frost removal in heavy-duty applications.


Key Features

  • Heavy-duty cubic unit cooler design
  • 4 × 300 mm axial fans
  • Airflow: ~4840 m³/h
  • Air throw: up to 24 m
  • Copper tube and aluminium fin coil
  • 4 mm fin spacing for high heat transfer efficiency
  • Very large heat exchange surface: 41 m²
  • Durable and easy to install
  • High-power electric defrost system
  • Low noise operation (~37 dB(A))

Technical Specifications

  • Model: 3C-E 3454 E
  • Fans: 4 × 300 mm
  • Fan Speed: 1350 rpm
  • Airflow: 4840 m³/h
  • Air Throw: 24 m
  • Surface Area: 41 m²
  • Fin Spacing: 4 mm
  • Dimensions (L×D×H): 2367 × 480 × 428 mm
  • Net Weight: 50 kg
  • Power Supply: 230V / 1Ph / 50–60Hz

Cooling Capacity

  • Capacity: ~7.75 kW
  • Conditions:
    • Refrigerant: R404A
    • Room Temperature: -18°C
    • DT1: ~7K

Defrost Specifications

  • Type: Electric defrost
  • Defrost Power: 8640 W
  • Defrost Current: 12.5 A
  • Voltage: 400V / 3Ph / 50Hz
  • Heaters: 5 + 1

Additional Details

  • Connections (In/Out): 1⅛” – 1⅛”
  • Sound Level: ~37 dB(A) at 4 m
  • Packed Weight: 87 kg

FAQs

Q1: What type of application is this unit suitable for?
This unit is ideal for large cold rooms and low-temperature freezer applications.

Q2: What is the airflow performance?
It delivers approximately 4840 m³/h airflow with an air throw of up to 24 meters.

Q3: What is the cooling capacity?
The unit provides approximately 7.75 kW cooling capacity under standard conditions.

Q4: How many fans are included in this unit?
The unit is equipped with 4 × 300 mm axial fans for high airflow performance.

Q5: Is a defrost system included?
Yes, the unit includes a high-capacity electric defrost system (8640 W).

Q6: Is installation easy?
Yes, despite its large size, the unit is designed for efficient and straightforward installation.
