Product details

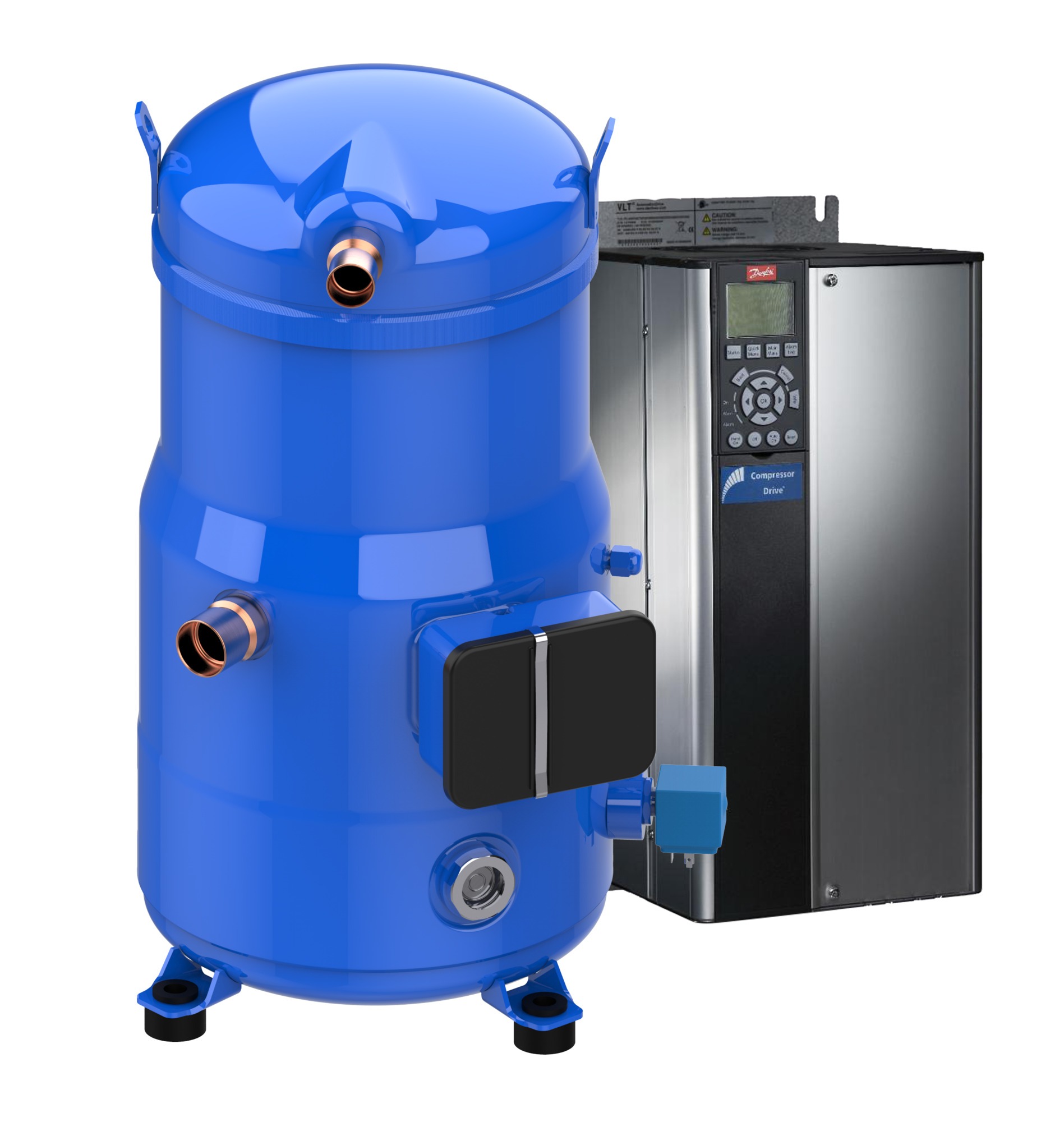

Danfoss VZH088AGANA Inverter Scroll Compressor | 7-10 HP | R410A | Variable Speed
Product Description:
The Danfoss VZH088AGANA (Part No. 120G0010) represents the next generation of cooling technology, utilizing permanent magnet motor technology for variable speed operation. This inverter-driven compressor allows the system to match the cooling load precisely, eliminating the energy waste of frequent on/off cycles—a crucial advantage in the varying thermal conditions of the UAE. Optimized for R410A, it is the ideal heart for high-end VRF systems, precision air conditioning, and process chillers. Its advanced design not only significantly reduces electricity bills but also provides superior dehumidification and constant indoor comfort, even during the peak summer heat in Dubai.
Key Features & Benefits:
- Variable Speed Precision: Automatically adjusts its speed to match the actual cooling demand, saving up to 30% or more on energy.
- IDV Technology: Features Intermediate Discharge Valves (IDVs) that further enhance seasonal efficiency by reducing over-compression.
- Wide Operating Range: Engineered to perform reliably in the extreme ambient temperatures of the Middle East.
- Low Noise & Soft Start: Variable speed control ensures a smooth, quiet start and operation, reducing mechanical stress and noise.
- Sustainable Cooling: Helps buildings achieve LEED or Estidama certifications in the UAE by drastically lowering carbon footprints.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Model Number | VZH088AGANA |
| Code Number | 120G0010 |
| Compressor Type | Inverter Scroll (Variable Speed) |
| Capacity Range | Approx. 7 to 10 HP (Depending on Frequency) |
| Refrigerant(s) | R410A |
| Motor Type | Permanent Magnet Motor |
| Speed Range | 1500 to 6000 RPM (Typical) |
| Oil Type | POE (Polyolester Oil) |
| Net Weight | ~56 kg |
FAQs:
- Q: Does this compressor require a dedicated drive?
- A: Yes, the VZH series must be used with a compatible Frequency Inverter (VFD), such as the Danfoss VLT series, to control its speed.
- Q: Can it be used in standard residential AC?
- A: It is typically used in premium commercial systems or high-end residential VRF where energy efficiency is a priority.
- Q: Is it pre-charged with oil?
- A: Yes, it comes factory-charged with POE oil suitable for R410A inverter applications.
