Product details

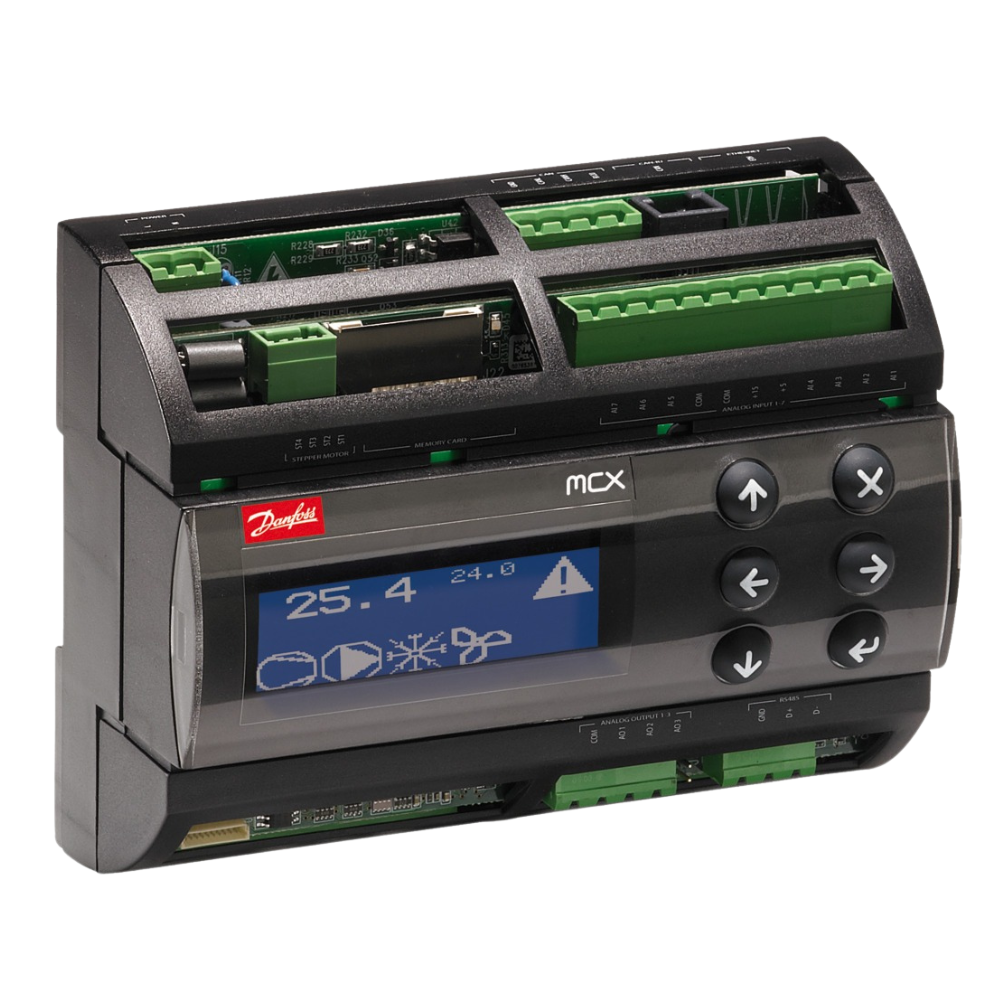

Danfoss MCX061V Programmable Controller | 6 Relays | Integrated EEV Driver
Product Description:
The Danfoss MCX061V is a high-performance member of the MCX family, specifically engineered for systems that utilize electronic expansion valves (EEV). This all-in-one unit eliminates the need for a separate superheat controller, as it features a built-in driver for both unipolar and bipolar stepper motor valves. Widely used in the UAE for high-efficiency chillers and precision air conditioning units, it offers 6 relay outputs for managing compressors, fans, and alarms. Being fully programmable, it allows engineers in Dubai to implement customized logic for complex cooling cycles, ensuring maximum energy efficiency and compressor protection in extreme ambient temperatures.
Key Features & Benefits:
- Integrated EEV Driver: Built-in stepper motor control for EEVs, reducing wiring complexity and panel space in UAE installations.
- 6 Versatile Relays: Provides ample output capacity for standard refrigeration and HVAC sequences.
- Fully Programmable: Supports C-language and graphical programming to meet specific project requirements in the Middle East.
- CANbus & RS485 Communication: Easy integration into Building Management Systems (BMS) and multi-controller networks.
- Robust Hardware: Designed for DIN-rail mounting and built to withstand the rigorous operating conditions of industrial plant rooms.
Technical Specifications :
| Specifications | Value |
| Manufacturer | Danfoss |
| Product Model | MCX061V |
| Code Number | 080G0251 |
| Supply Voltage | 24V AC / DC |
| Relay Outputs | 6 Relays |
| Analog Inputs | 7 (Configurable NTC/PT1000/0-10V/4-20mA) |
| EEV Driver | Integrated (Unipolar/Bipolar) |
| Communication | CANbus, RS485 (Modbus RTU) |
| Mounting | DIN Rail (4-module width) |
FAQs:
- Q: Can I use this to control a Danfoss ETS Colibri valve?
- A: Yes, the integrated driver is fully compatible with Danfoss ETS series and other common stepper motor valves.
- Q: Does it have a built-in display?
- A: This specific version is typically used with an external MMI display or via a PC connection for monitoring and setup.
- Q: Is it suitable for high-ambient applications in Dubai?
- A: Absolutely. Its precise superheat control is essential for maintaining system stability during the peak summer heat in the UAE.
