PRODUCT DETAILS

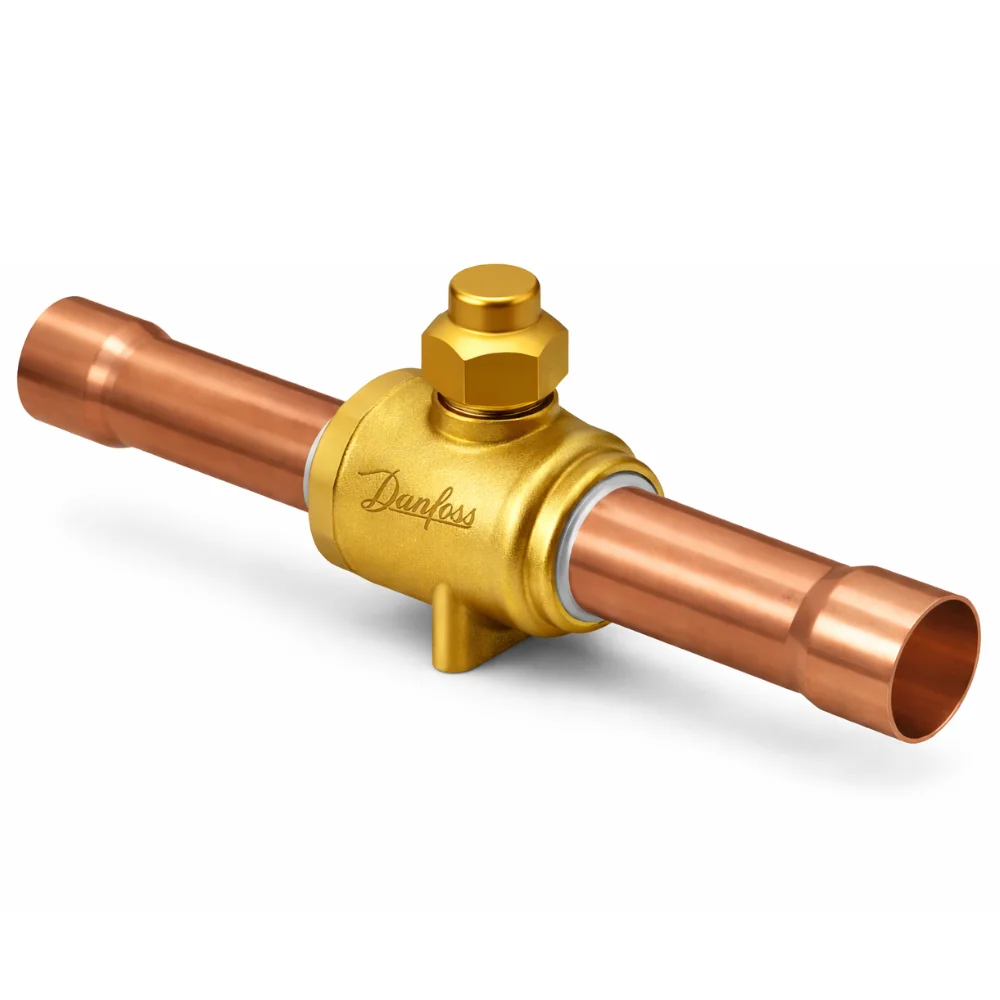

The Danfoss 009L7022 GBC 12s Shut-Off Ball Valve is a manually operated isolation valve designed for refrigeration and air conditioning systems. Built with a robust brass body and copper connections, it provides reliable shut-off functionality for liquid, suction, and hot gas lines while maintaining minimal pressure drop through its full-port design.
Designed for bi-directional flow operation, the GBC 12s valve can be installed in either flow direction, offering installation flexibility and dependable performance. With a maximum working pressure of 45 bar (650 psig), it is suitable for a wide range of refrigerants including R22, R134a, R404A/R507A, R407C, R410A, R32, R448A, R449A, R454 series, R513A, and other modern refrigerants.
Key Features
- Danfoss GBC 12s Shut-Off Ball Valve
- Manual quarter-turn operation
- Full-port design for minimum pressure drop
- Bi-flow operation
- Suitable for liquid, suction, and hot gas lines
- Brass valve body construction
- Copper ODF solder connections
- 1/2″ ODF inlet connection
- 1/2″ ODF outlet connection
- Embossed flow position indicator
- Cap with wire seal
- Panel mounting provision
- Suitable for multiple HFC, HFO, and HC refrigerants
- Maximum working pressure 45 bar (650 psig)
- Serviceable with BM/GBC valve spare parts
Applications
- Commercial Refrigeration Systems
- Air Conditioning Systems
- Condensing Units
- Cold Rooms
- Refrigeration Rack Systems
- Liquid Lines
- Suction Lines
- Hot Gas Lines
- HVAC Equipment
- OEM Refrigeration Applications
- Service and Maintenance Installations
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 009L7022 |
| Brand | Danfoss |
| Series | GBC |
| Model | GBC 12s |
| Product Type | Shut-Off Ball Valve |
| Valve Type | Manual Ball Valve |
| Flow Direction | Bi-flow |
| Direction | Straightway |
| Body Material | Brass |
| Connection Material | Copper |
| Inlet Connection Type | Solder, ODF |
| Outlet Connection Type | Solder, ODF |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Kv Value | 13.17 m³/h |
| Cv Value | 15.2 gal/min |
| Maximum Working Pressure | 45 bar |
| Maximum Working Pressure | 650 psig |
| Maximum Test Pressure | 65 bar |
| Maximum Test Pressure | 940 psig |
| Temperature Range | -40°C to +100°C |
| Short-Term Maximum Temperature | +150°C |
| Equipment | Cap with Wire Seal |
| Access Port | No |
| Panel Mounting Option | M3 × 0.5 (2 pcs) |
| Refrigerant Compatibility | R22, R134a, R32, R404A/R507A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E), R290, R600, R600a |
| Product Group | Shut-Off and Regulating Valves |
| Net Weight | 0.122 kg |
| Gross Weight | 0.190 kg |
| EAN | 5702428515795 |
FAQs
What is the function of the Danfoss GBC 12s valve?
It is a manual shut-off ball valve used to isolate refrigerant flow in liquid, suction, and hot gas lines of refrigeration and air conditioning systems.
Is the valve bi-directional?
Yes. The GBC 12s is designed for bi-flow operation and can be installed in either flow direction.
What connection size does this valve have?
The valve features 1/2″ ODF solder connections on both inlet and outlet sides.
Which refrigerants can be used with this valve?
The valve is compatible with a wide range of refrigerants including R22, R134a, R32, R404A, R407C, R410A, R448A, R449A, R454 series, R513A, R1234yf, and many others.
What is the maximum working pressure?
The maximum working pressure is 45 bar (650 psig).
