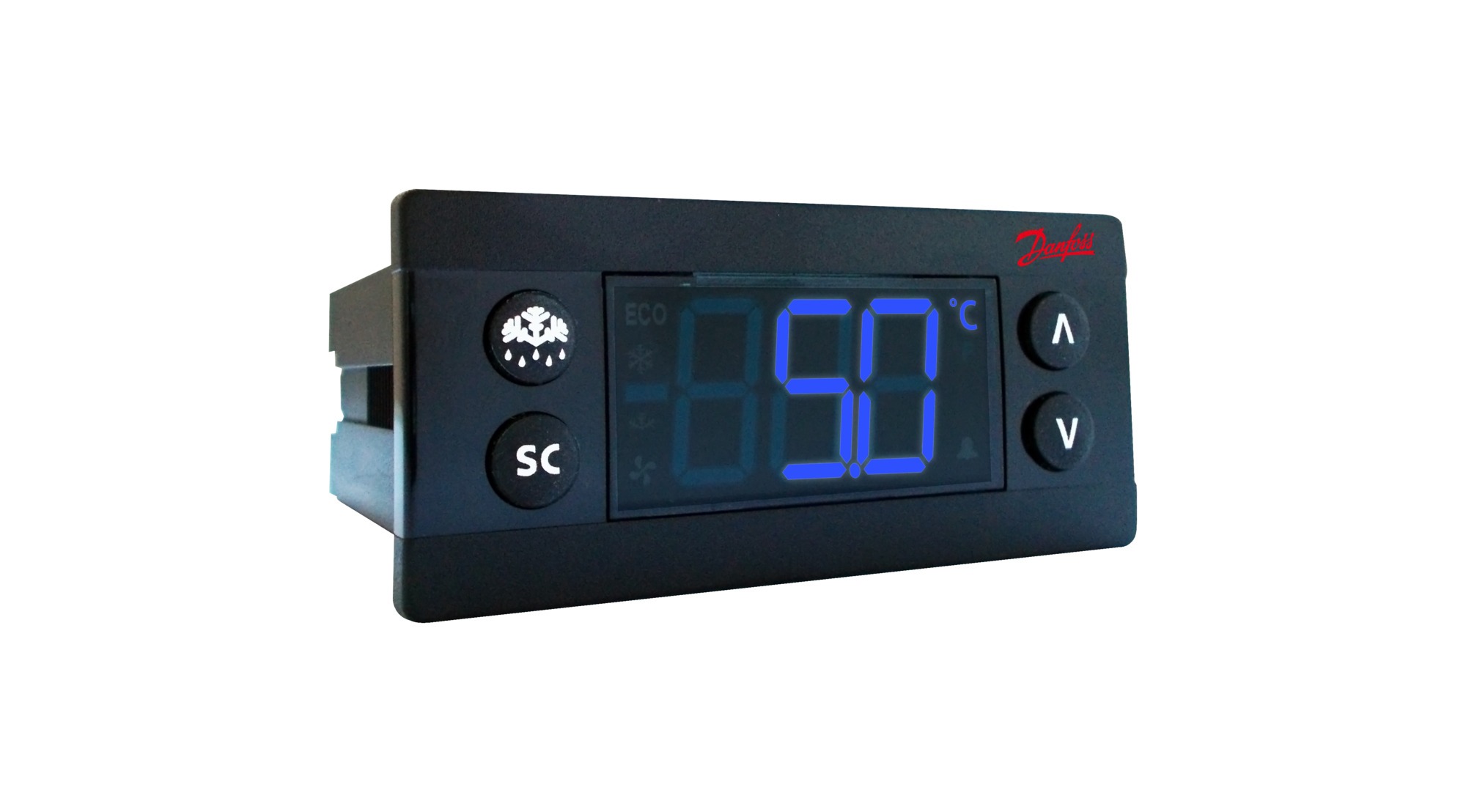

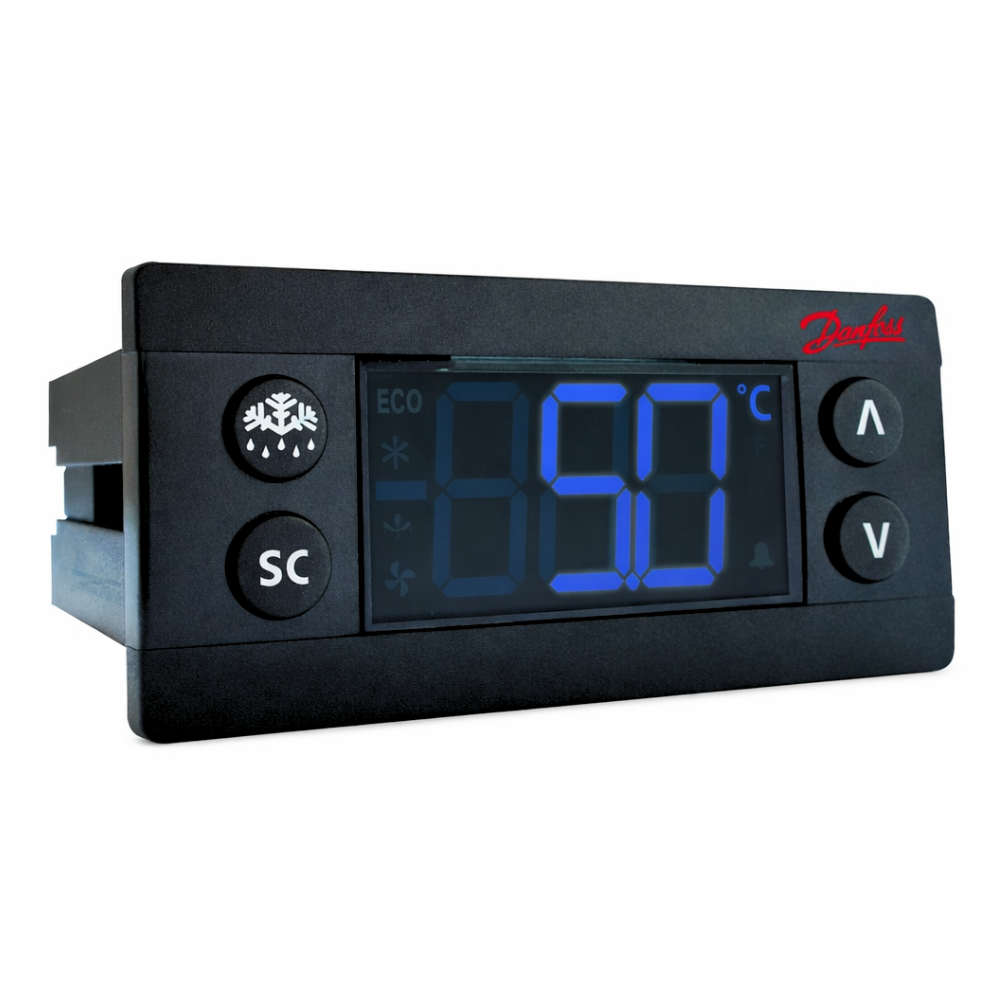

Danfoss ERC 112D Electronic Refrigeration Controller | 080G3414

Product Description:

The ERC 112D is a high-performance microprocessor-based controller engineered to enhance energy efficiency and reliability. In the UAE’s competitive retail and food service sectors, the 084G3414 stands out for its “Smart Evaporator Fan” management and voltage protection features, which are vital for protecting equipment against the power fluctuations sometimes encountered in industrial zones. This model features four relays to control the compressor, fan, defrost, and lights, providing a complete automation solution for cooling units in Dubai and Abu Dhabi. Its user-friendly interface and pre-programmed software applications make it a favorite for UAE OEMs and maintenance contractors.

Key Features & Benefits:

• Integrated Voltage Protection: Automatically disconnects the compressor during voltage spikes or drops, reducing maintenance costs in UAE facilities.
• Energy-Saving Algorithms: Includes “ECO” mode and intelligent defrosting to significantly lower electricity consumption in Dubai’s commercial units.
• All-in-One Control: Manages compressor, fan, defrost, and lighting from a single, compact device.
• High-Ambient Performance: Reliable operation in temperatures up to 55°C, making it perfectly suited for UAE kitchen and retail environments.
• Easy Programming: Compatible with the Danfoss KoolProg software and copy-key for rapid configuration across multiple units in the UAE.

Technical Specifications:

FAQs:

• Q: Can the ERC 112D (080G3414) be used for a deep freezer in the UAE?
• A: Yes, it is highly effective for both chiller and freezer applications, provided the sensors and defrost parameters are configured for low-temperature operation.
• Q: What sensors are compatible with this unit in Dubai?
• A: It typically uses NTC 10k or NTC 5k sensors, which are widely available in the UAE spare parts market.
• Q: Is it difficult to switch from an older ERC 102 to this ERC 112D?
• A: The physical cutout is often the same, but the 112D offers more advanced relay features; a UAE certified technician should review the wiring diagram before replacement.
