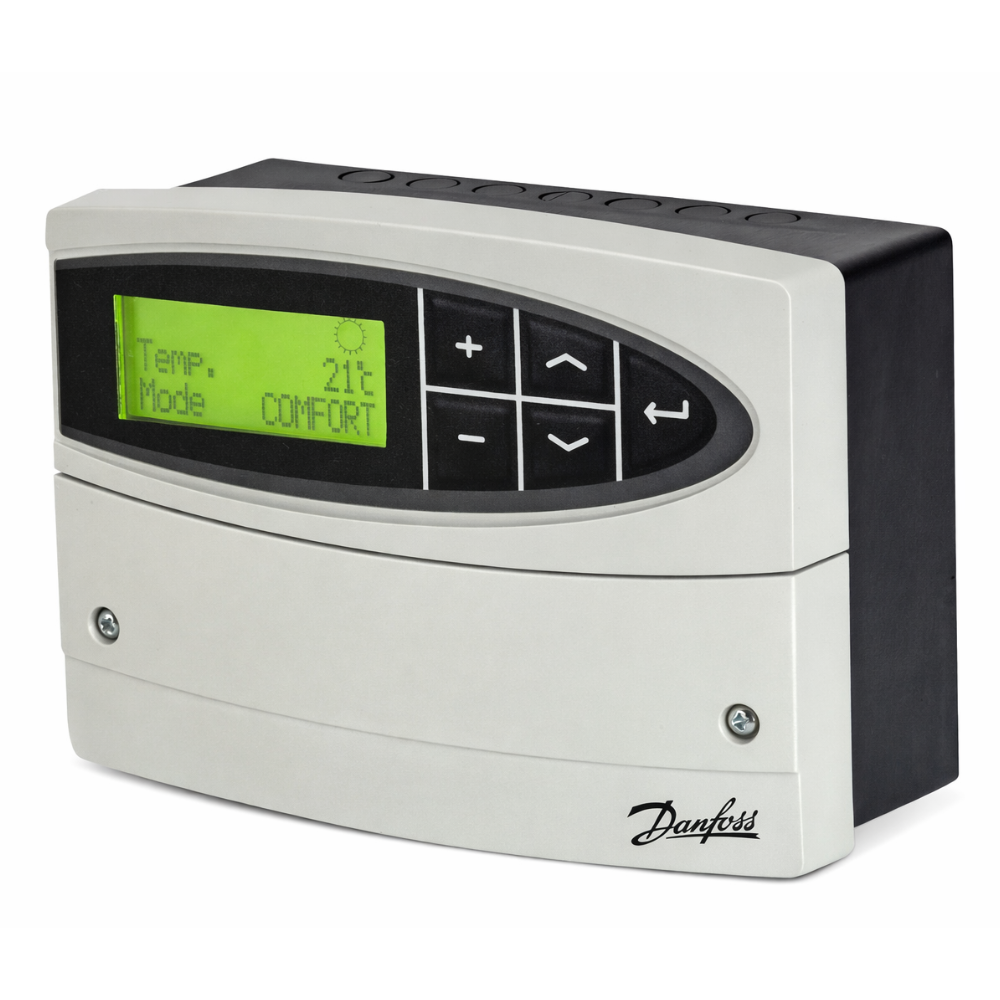

![087B1262 - ECL Comfort 110, Supply voltage [V] AC: 207 - 244, Time switch type: Week Danfoss](https://haste-uae.com/wp-content/uploads/2026/02/16.png)
Product details
Danfoss ECL Comfort 110 Universal Controller | 230V | 087B1262
Product Description:
The ECL Comfort 110 is an intelligent controller optimized for systems that require precise temperature management based on outdoor conditions. In the UAE, where district cooling and specialized heating systems (such as those for domestic hot water or industrial processes) require high efficiency, the 087B1262 offers a reliable solution. It features a built-in week timer for scheduled operations and a clear backlit display. This model operates on a standard 230V AC supply and is widely used in Dubai and Abu Dhabi for its ease of programming and ability to significantly reduce energy consumption by optimizing the flow temperature in relation to the actual demand.
Key Features & Benefits:
- Weather Compensation: Automatically adjusts the supply temperature based on outdoor temperatures, ensuring maximum comfort and energy efficiency for UAE installations.
- Integrated Week Timer: Allows for precise scheduling of comfort and setback periods, perfect for commercial buildings in Dubai with specific occupancy hours.
- User-Friendly Interface: Features a graphical backlit display and a simple “turn-and-push” dial for easy navigation by UAE facility managers.
- Versatile Control: Can be configured for flow temperature control, room temperature control, or constant temperature control.
- Quick Installation: Designed for DIN rail mounting or wall mounting, simplifying the setup in UAE control panels.
Technical Specifications:
| Specifications | Value |
| Manufacturer | Danfoss |
| Model | ECL Comfort 110 |
| Code Number | 087B1262 |
| Supply Voltage | 230 V AC (207 – 244 V) |
| Timer Type | Week Timer (Digital) |
| Ambient Temperature | 0°C to +50°C |
| Enclosure Rating | IP41 |
| Inputs | 4 (for Pt 1000 sensors) |
| Outputs | 3 (2 for Triac, 1 for Relay) |
FAQs:
- Q: Can the ECL Comfort 110 (087B1262) be used for cooling applications in the UAE?
- A: While primarily a heating controller, it can be configured for constant temperature control in various HVAC applications. For dedicated district cooling control, larger models like the ECL 210/310 are often preferred in Dubai.
- Q: What sensors are compatible with this controller?
- A: The ECL 110 is designed for use with high-precision Pt 1000 ohm sensors (like the ESM-11 or ESMT), ensuring accurate temperature data for UAE systems.
- Q: How does the “Week Timer” benefit commercial properties in Abu Dhabi?
- A: It allows the system to automatically lower output during weekends or non-business hours, resulting in substantial utility savings.
